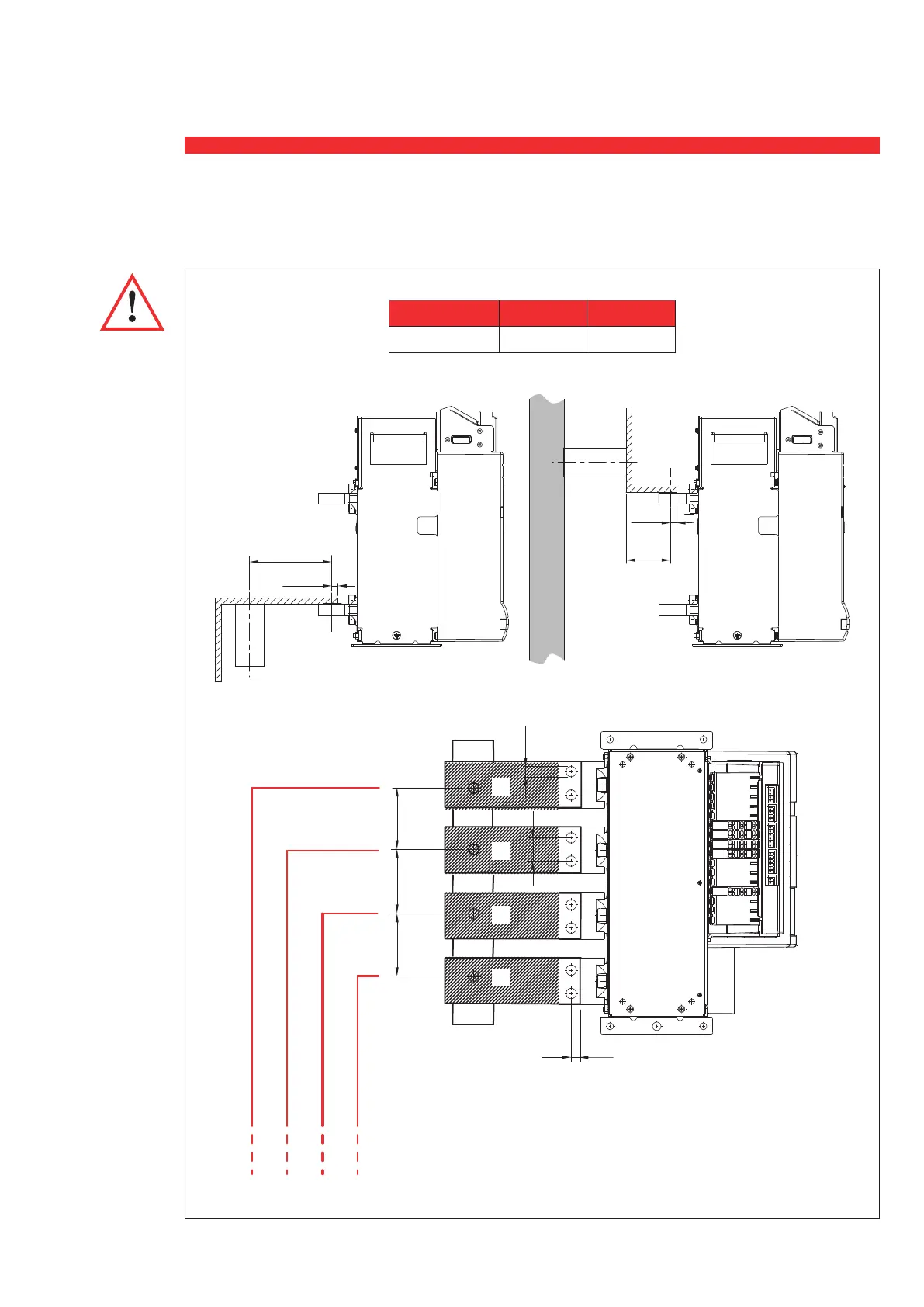

13. Connection for fixed version
L3
L2
L1
N
707070
25
ø11
15
11mm
"X"max (mm)
11mm
"X"max
(mm)
Termination
support must
be made
of isolating
material and
sized according
to the bars in
order to avoid
performances
during
short circuit
conditions.
Icc (kA) ≤ 42 ≤ 50
“X” max (mm) 350 300
