5.2.2. Measurements Menu
It provides useful measurements about the UPS and the load.
You may scroll to right and left by touching right and left keys through Measurements menu.

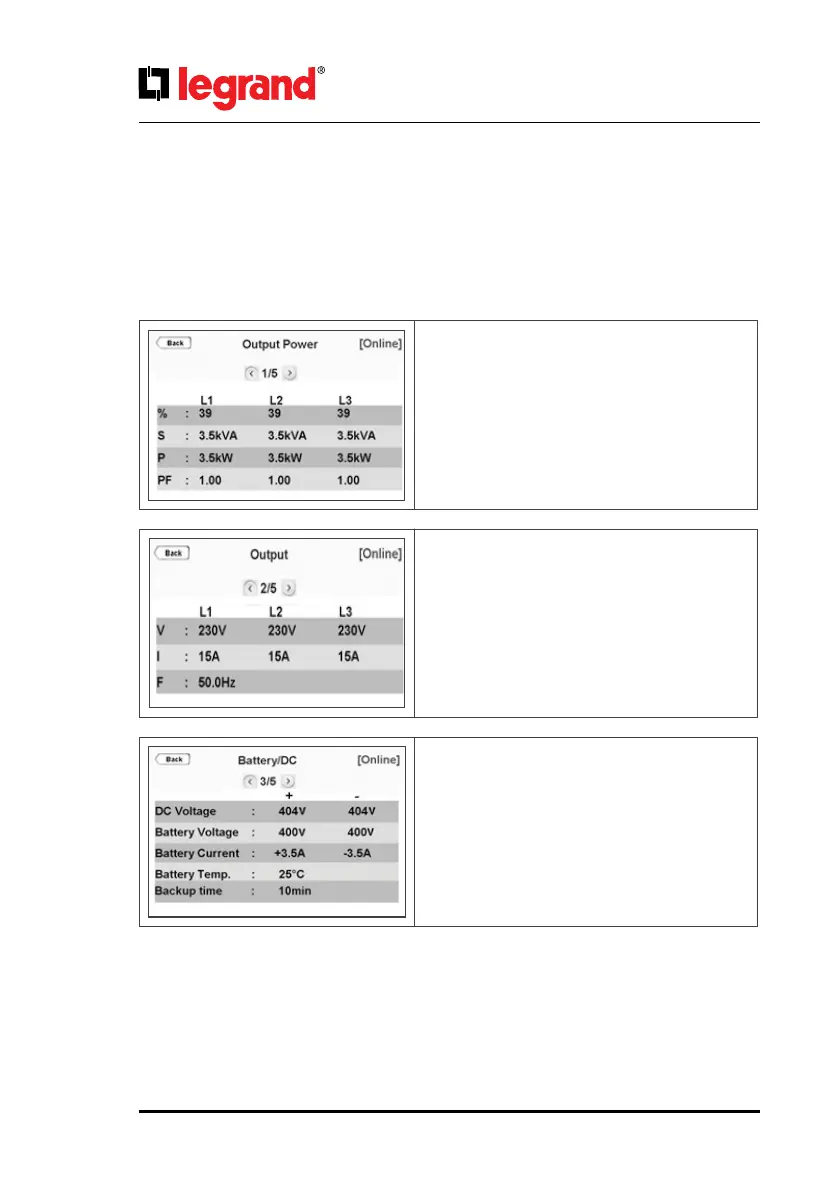

The screens of MEASUREMENTS menu are as below:
Output load percentage, apparent power, real power
and power factor information of each phase is
displayed.
Output voltage (Ph-N), current, frequency information
of each phase is displayed.
DC Bus and Positive-Negative string of battery voltage
is displayed.
When the battery circuit breaker is closed, it gives just
Battery Voltage measurements.
Charge (+) / Discharge (-) battery current, ambient
temperature and back-up time are displayed.
