26
The communication solutions listed below
can be used with this port:
• Monitoring Software (Optional)
• External SNMP Adapter (Optional)
Via SNMP; the information listed below can
be monitored;
• The Latest Battery Test Date
• UPS Information (example: 220V - 50Hz)
• Input Data (V
in
, F
in
, V
max
etc.)
• Output Data (V
out
, Load Percantge...etc.)
• Battery Situation (V
batt
...etc)

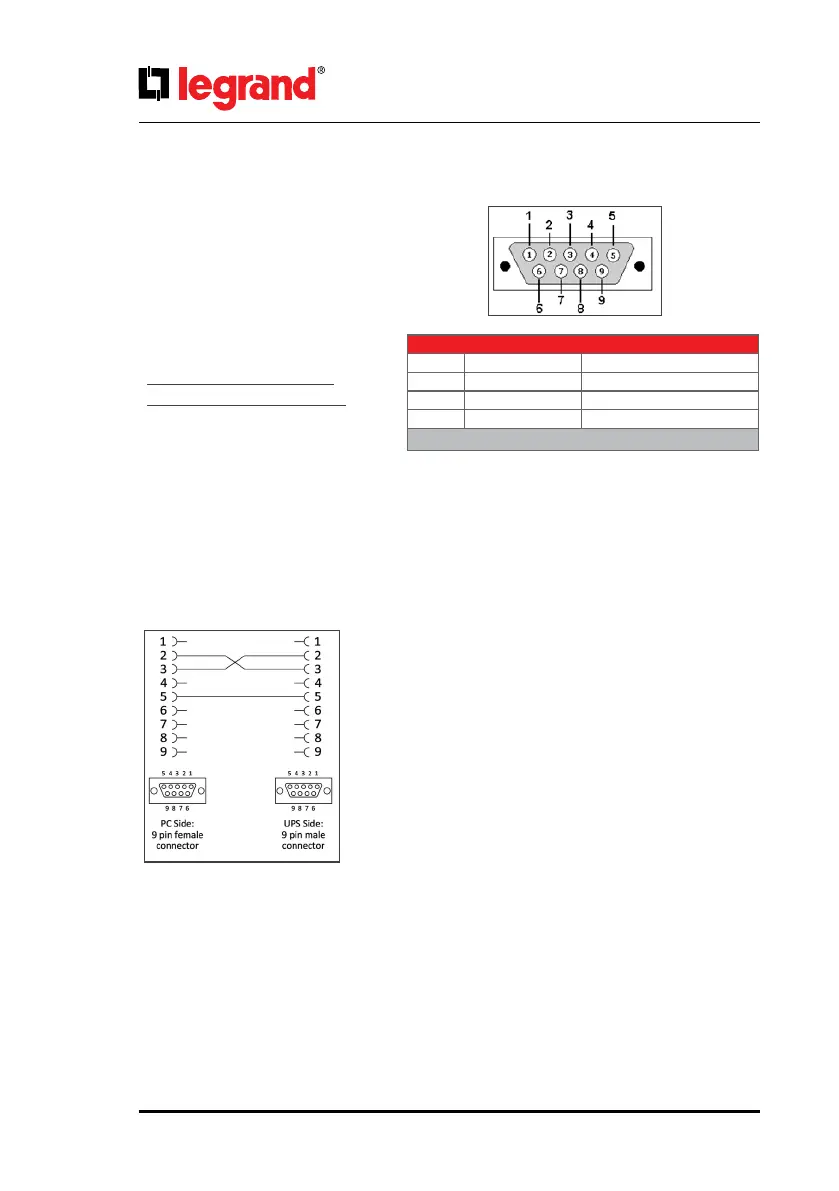

6.1. Serial Communication (RS232)
UPS is equipped with Serial Communication as standard.
RS232 cable shall be shielded and shorter than 25m.
RS232: DSUB-9 male connector with the following pin
layout shall be used on the UPS side of the connection
cable.
RS232 Pin Layout
PIN# Signal Name Signal Description
2 RX Receive Data
3 TX Transmit Data
5 GND Signal Ground
Table.3
Over SNMP communication, battery test can be started or current test can be cancelled. UPS can be
shut-down or stand-by (stand-by duration is adjustable). Alarms can be discarded.
If Serial Communication cable is needed, it can be produced according
to the pin conguration described at side.
