6. Communication
Interface connectivity cards allow UPS to communicate in a variety of networking environments and with
dierent type of devices.
Standard and optional communication interfaces are listed below;
Communication Interfaces
Model (kVA) 5 7.5 10 15 20 30 40 50 60
RS232
RS485 / MODBUS
Dry Contacts
Generator Interface
Remote Emergency Switching Device (ESD) Interface
Internal SNMP / Web Monitoring / e-mail
External SNMP
Standard
Option
Table.2
Inverter and Rectier connectors are used for Technical Service only.
Do no not connect RS232 or external SNMP, damage may occur to your equipment and
cancel your warranty.
1 RS485 / Modbus
2 RS232 / External SNMP
3 Remote Emergency Switching Device interface
4 Generator Interface
5 Dry Contacts Interface

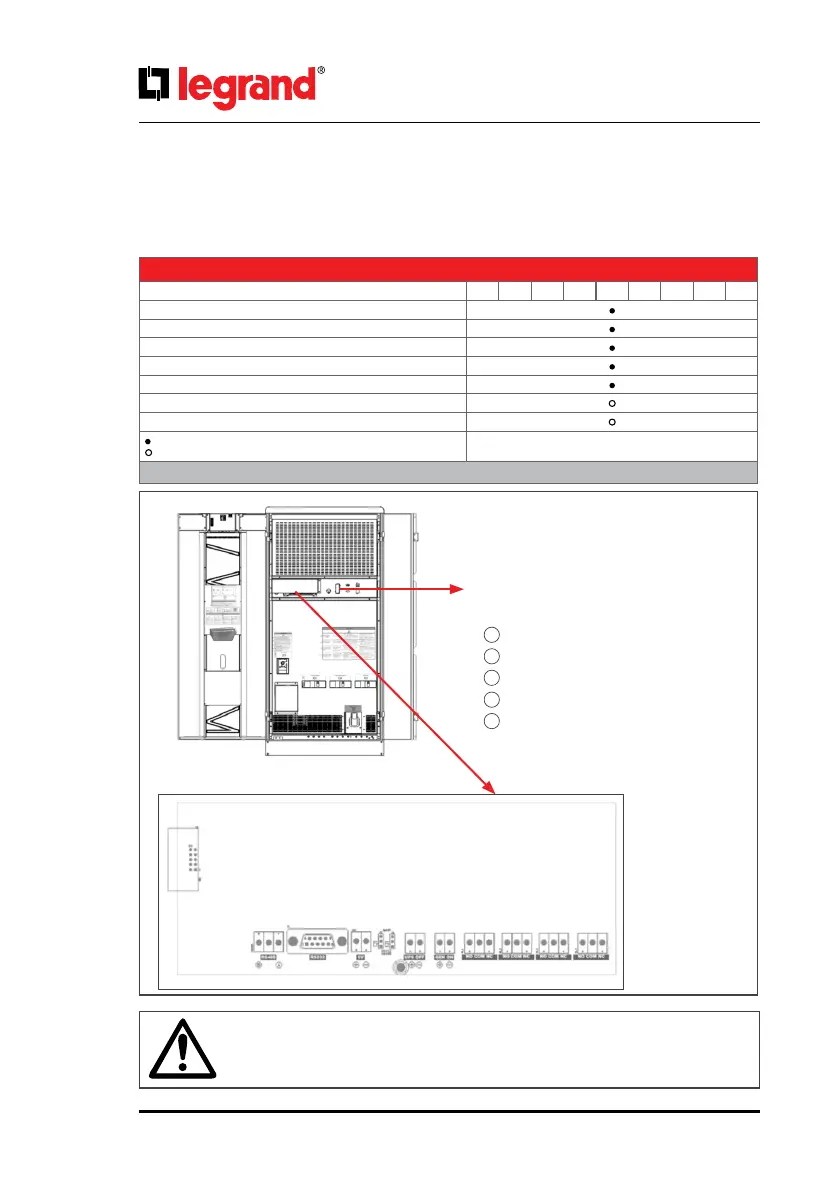

Figure. 6 -1
Internal
SNMP Slot
1 2 3 4 5
