6.1.1 On an outgoing door
We recommend mounting the PIR II on the inside of
the outgoing (seen from the users premises) door
blade and the magnet on the door frame according to
Picture 9 below.
ON
OFF

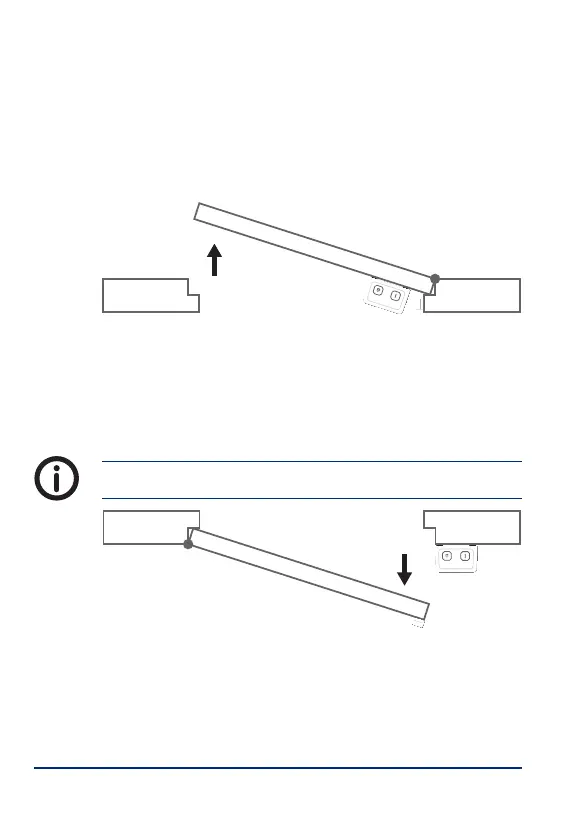

Picture 9. Mounting on an outgoing door blade.
6.1.2 On an ingoing door
When the door blade (seen from the users premises)
is ingoing the PIR II should be mounted on the door
frame and the magnet on the door blade.
Ensure correct alignment of the door magnet!
ON
OFF
Picture 10. Mounting on an ingoing door blade.
