LEGRAND VANTAGE CC-STAT - Dry Contact; Powered Contact

13
No: IS-0685 – Rev. 2

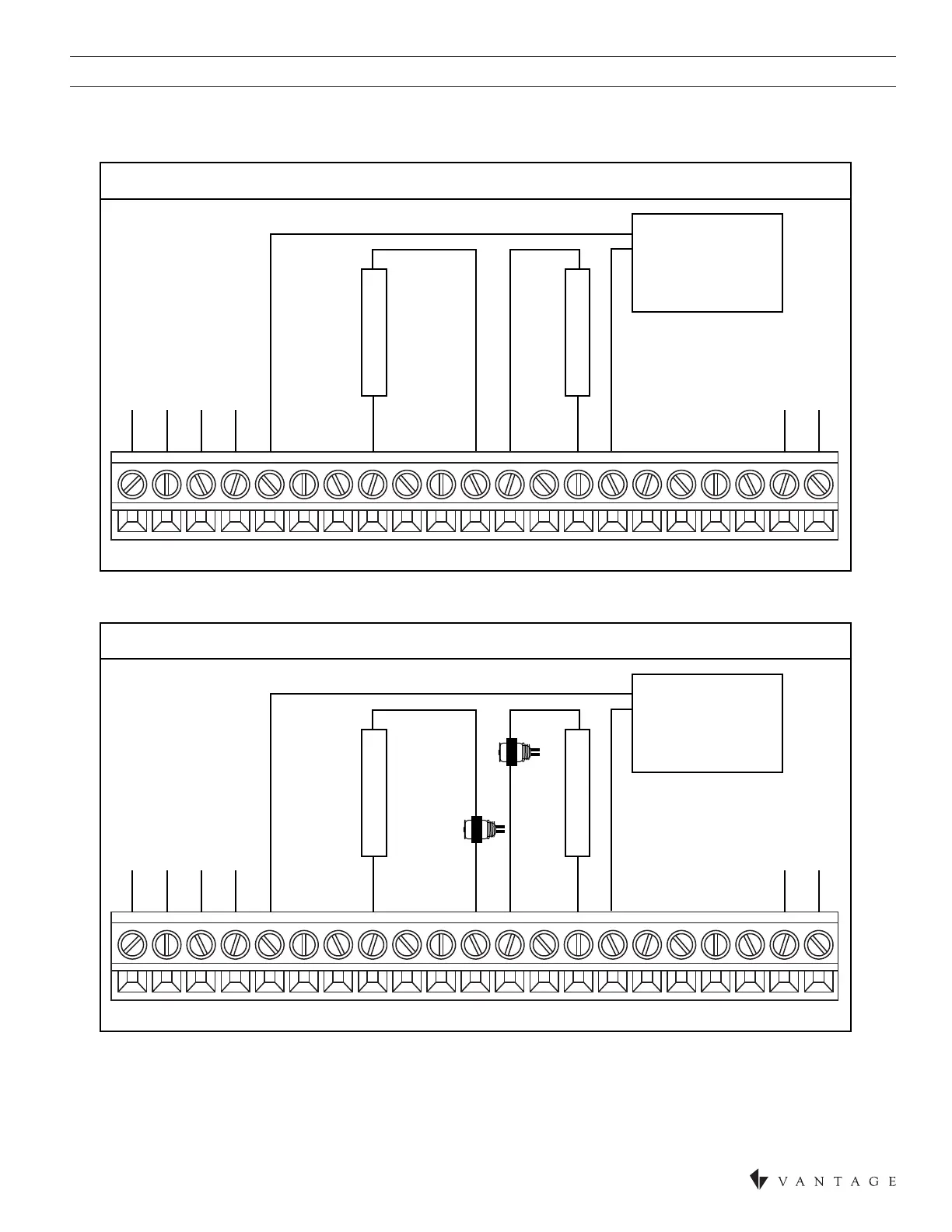

HUMIDISTAT WIRING DIAGRAM
B+ A+ B- A- C B O Y Y2 G RC RH W2 W R S2 S1 T1 T2 RSB RSA
COMMUNICATION
TERMINALS
DEHUMIDIFIER
HUMIDIFIER
SUPPORT
MODULE
THERMOSTAT IS
POWERED FROM
EQUIPMENT OR
24VAC TRANS.
DRY CONTACT
B+ A+ B- A- C B O Y Y2 G RC RH W2 W R S2 S1 T1 T2 RSB RSA
COMMUNICATION
TERMINALS
DEHUMIDIFIER
HUMIDIFIER
HUMIDIFIER
TRANSFORMER
SUPPORT
MODULE
THERMOSTAT IS
POWERED FROM
EQUIPMENT OR
24VAC TRANS.
POWERED CONTACT
DEHUMIDIFIER
TRANSFORMER
