LEGRAND VANTAGE CC-STAT - Outdoor Temperature Sensor (Optional)

5
No: IS-0685 – Rev. 2

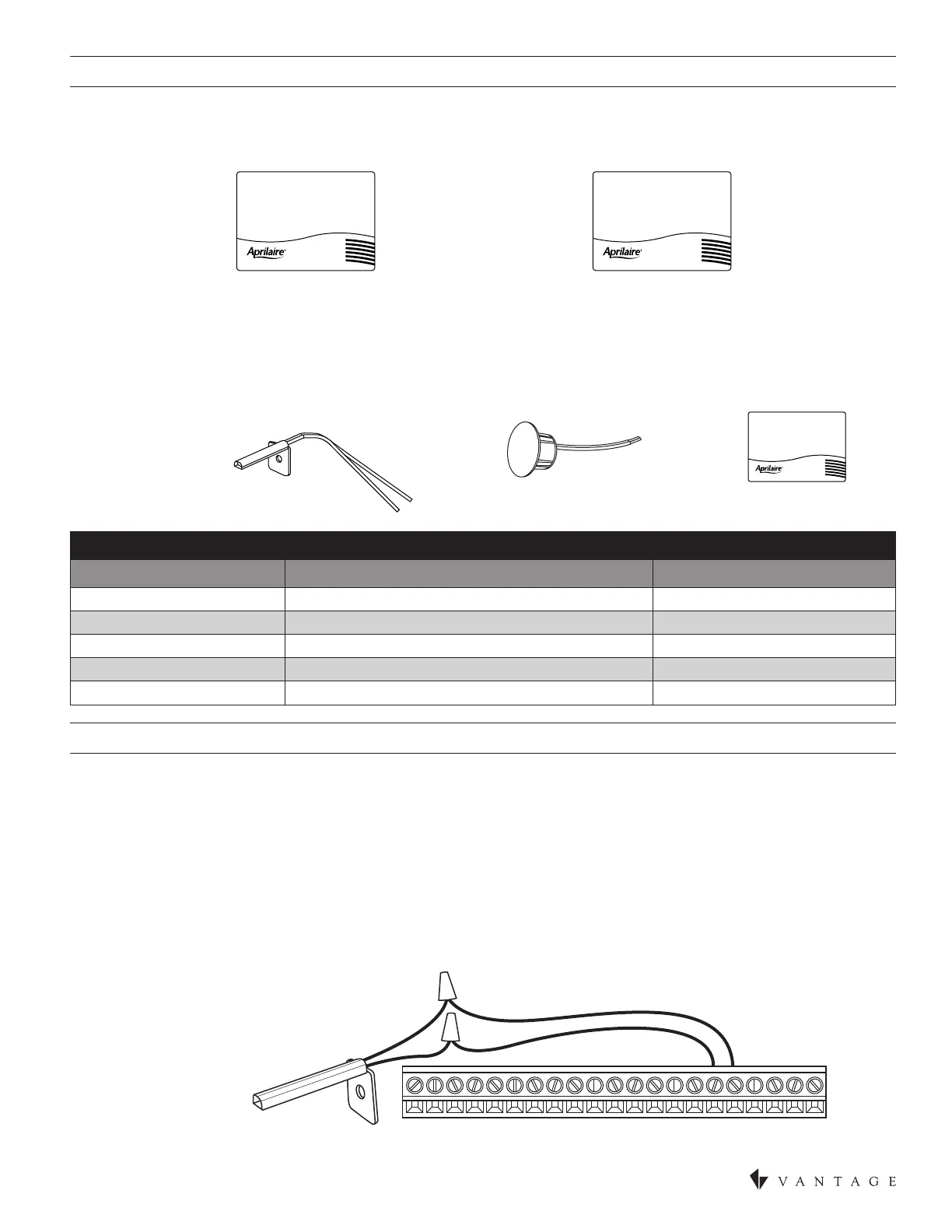

CC-STAT OPTIONAL SUPPORT MODULES AND SENSORS
OUTDOOR TEMPERATURE SENSOR (OPTIONAL)
These support modules can be added when remote temperature or humidity sensor values are needed. Support modules can also be
used for sensor averaging in large areas (see Maximum Wiring Distances below). Support modules must be used in Control Mode,
see instructions shipped with module.
SUPPORT MODULES
Outdoor temperature can be measured by attaching Vantage’s SENSOR-ODT, outdoor sensor to the S1 and S2 terminals on the
thermostat base. The sensor must be enabled in the thermostat’s installer setup menu.
OUTDOOR SENSOR
(SENSOR-ODT)
These sensor can be directly wired to the CC-STAT thermostat, the CC-TEMPSUP, or to the CC-HUMIDSUP. See additional
instructions packaged with each sensor.
REMOTE SENSORS
Model CC-TEMPSUP Support Module
Provides two temperature values.
• 1 onboard or remote temperature sensor
• 1 remote temperature sensor
See additional instructions packaged with support module
In heat pump mode, the outdoor temperature sensor can
be used to efciently utilize an air source heat pump:
• When the outdoor temperature is less than the Low Balance
Point, the heat pump will be locked out and only auxiliary
heating will be used
• When the outdoor temperature is higher than the High
Balance Point, the auxiliary heating will be locked out and
only the heat pump will be used to provide heating
SENSOR-ODT FLUSHSENSOR SENSOR-SMT
Model CC-HUMIDSUP Support Module
Provides one temperature and one humidity value.
• 1 onboard humidity sensor
• 1 onboard or remote temperature sensor
See additional instructions packaged with support module
Outdoor temperature sensor should be mounted:
• On side of building out of direct sunlight (north side
recommended)
• Above snow line
• At least 3’ away from exhaust vents and condensing lines
• Using no more than 300’ of wire. (For longer runs, use the
CC-TEMPSUP as a bridge)
• Do not route wires along 120 VAC lines
MAXIMUM WIRING DISTANCES
FROM TO MAXIMUM DISTANCE
InFusion Controller CC-WLINT (Vantage Station Bus specication) 1,000 ft.
CC-WLINT Thermostat 4,000 ft. (cumulative)
Thermostat Support Module 1,000 ft. (cumulative)
Support Module Temperature Sensor Option 300 ft.
Thermostat Temperature Sensor Option 300 ft.
B+ A+ B- A- C B O Y Y2 G RC RH W2 W R S2 S1 T1 T2 RSB RSA
