Lamphousing 106 z*, Hg and Xe lamps
Attention:
Danger: the following information is extremely
important and should be adhered to under all
circumstances:
Always unplug the power unit from the mains
before assembly work is carried out.
Wait for the lamp housing to cool down before
op ening (at least 15 min.). Danger of exp losion!
Never touch glass p arts of the burner with
y
our hands. Remove any fingerprints or dust
carefully (perhaps using alcohol).
Adjust lamps immediately after ignition
(→ p. 39).
!
Attention:
Avoid switching on and off frequently, as this
can impair the stability of the lamp and shorten
its life.
Hot Hg lamps cannot be reignited until they have
cooled down. We recommend that you let new
burners burn in for several hours without
interruption if possible.
It is a good idea to keep a record of the hours
the lamp is in use and to compare with the
manufacturer’s specifications. Replace dis-
coloured, spent lamps. Set hour counter on
power unit at “0”.
We cannot accept any liability for damage
resulting from a lamp explosion.
Attention:
Always wear safety clothing (gloves and face
mask) when assembling Xe burners (danger
of explosion).

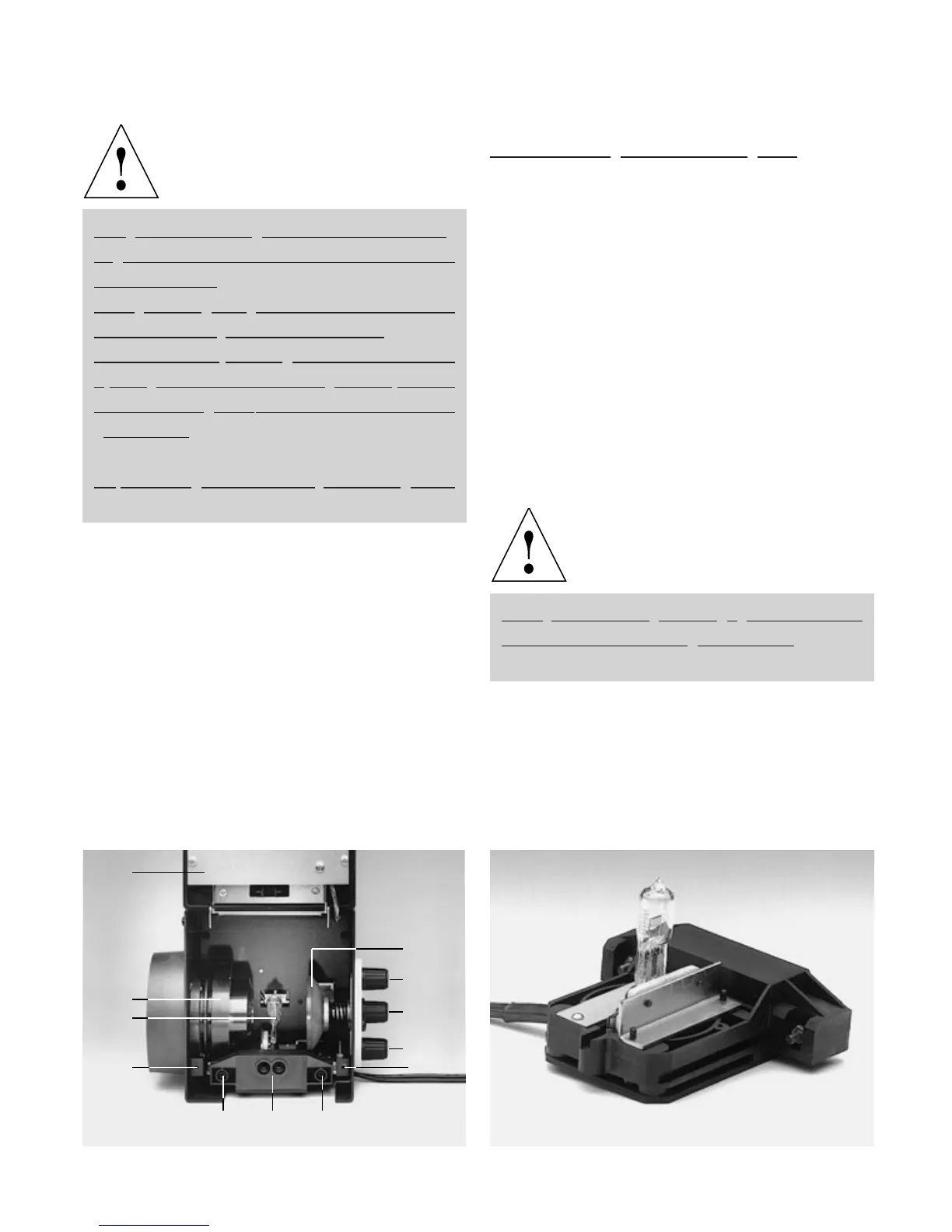

Fig. 18 Lamphousing 106 z*
1 Lid, flipped up, 2 Collector, 3 12 V 100 W halogen lamp with
holder or gas discharge lamp (see Fig. 20), 4, 9 Lid screws,
5 Reflector, 6, 8 x/y centering of reflector, 7 Reflector
focusing, 10 Screws for lamp socket, 11 Socket for cut-out plug
Fig. 19 12 V 100 W lamp holder (LH 106z only)
1
2
3
4
5
6
7
8
9
10
1011
