20
Attention:
Protect movable interior parts with foam rubber
or similar in case of shipment.
To open lamphousing 106 z: undo screws (18.4).
Pull the cut-out plug slightly out of the socket
(18.11) and flip up the lid of the lamphousing.
Undo the screws (18.10) on the lamp holder and
remove the holder (Fig. 20). Remove the spent
burner by loosening the clamp screws (20.1 and
20.3).
!
Attention:
Insert burner as follows, adhering strictly to
the above safety information:
Do not remove the protective covering yet
(20.7).

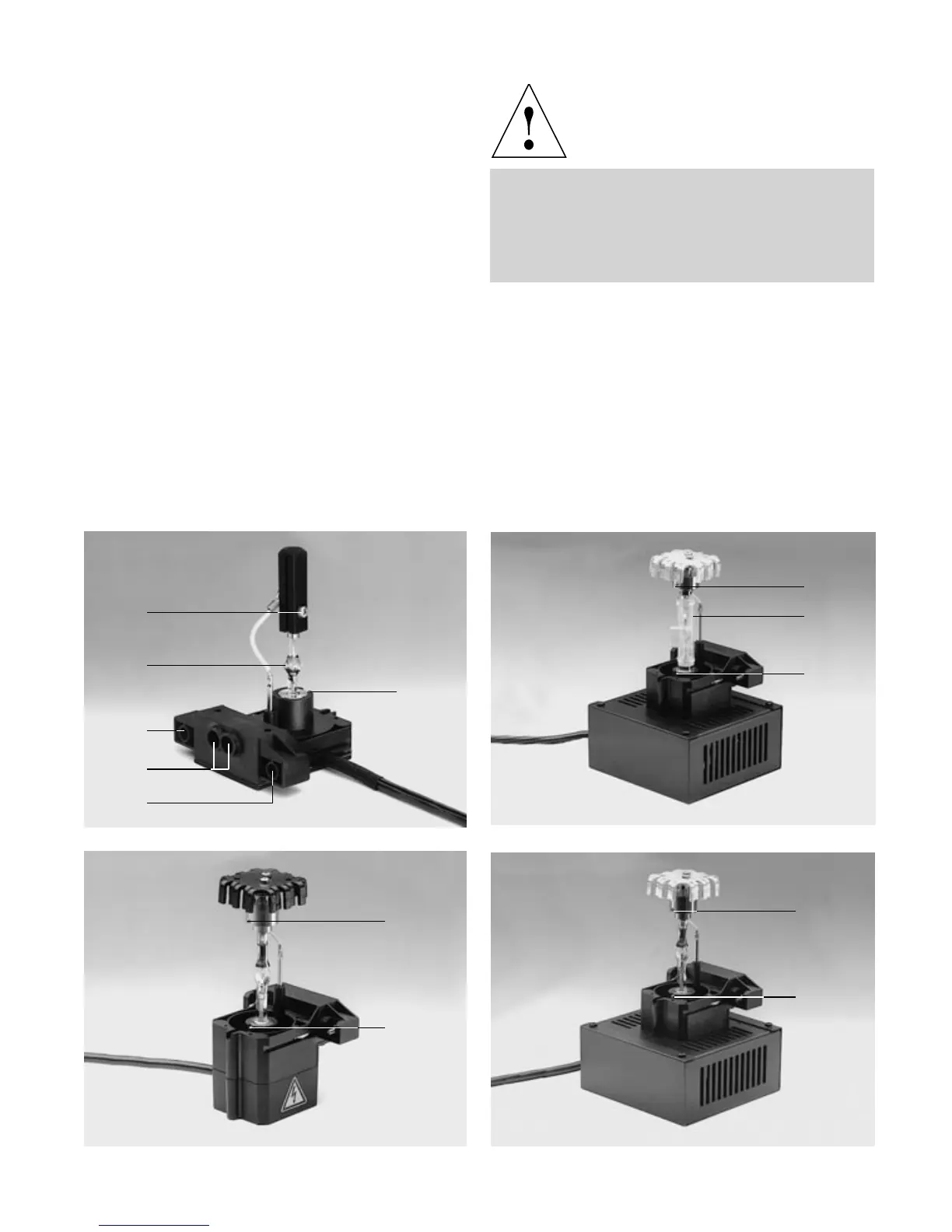

Fig. 20 Lamp holders for gas discharge lamps*
1 Upper clamp, 2 Seal point of the burner, 3 Lower clamp,
4, 6 Drillholes for fixing the holder, 5 Sockets for cut-out plug,
7 Protective cover
Hg 50
1
2
3
4
5
6
Xe 75
1
3
7
1
3
Hg 100
1
3
Hg 100
Stab.
