Leica DSX - TPS Grid Definition Process

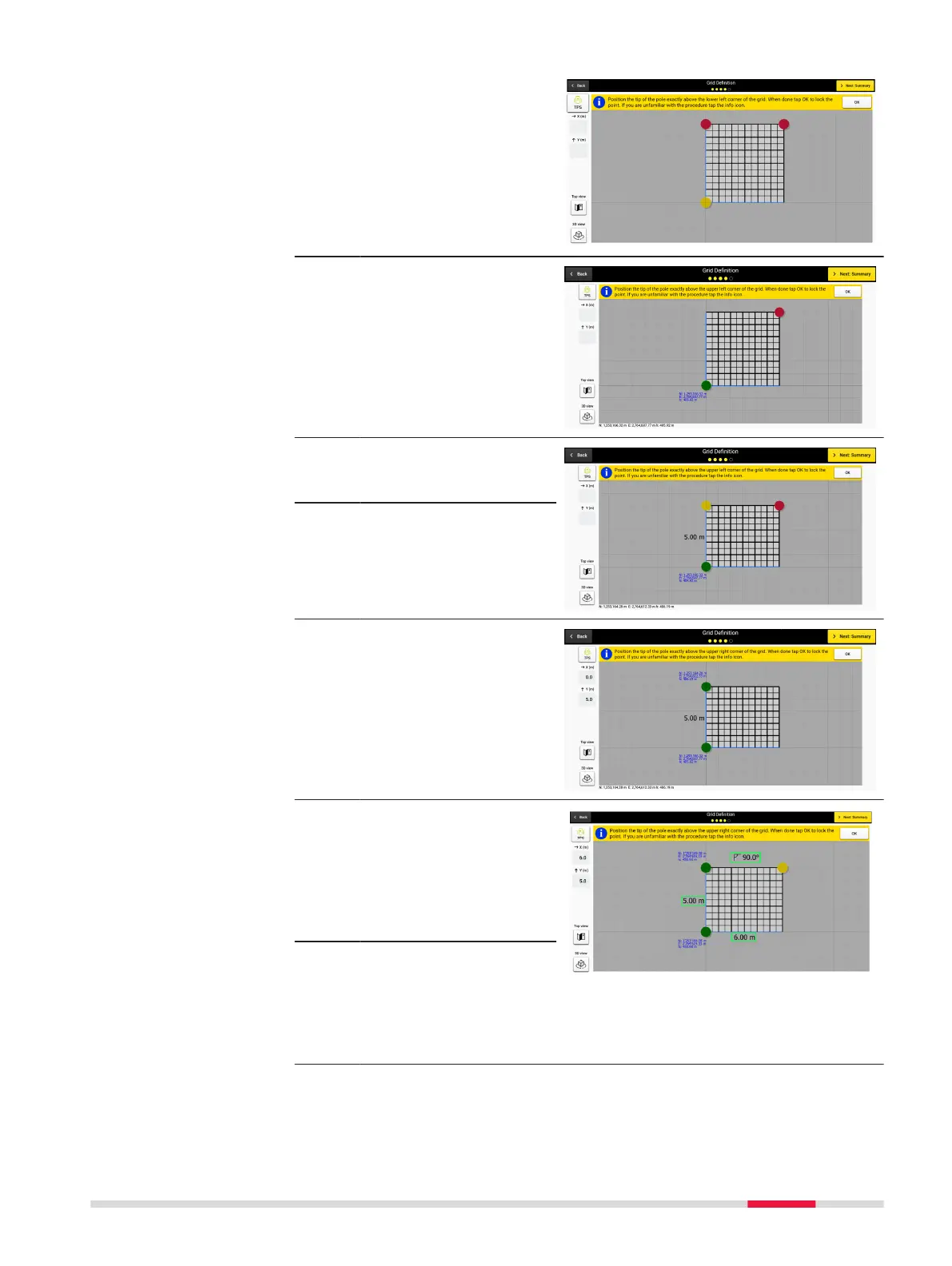

13. On the grid denition
screen, set the initial
position by moving the
cart to the desired
starting point.
14. Select OK to set the
starting position,
observe that the point
turns green when set.
15. Move the cart to set
the second point for
the scan area.
☞
Ensure the distance the
cart is moved is incre-
mental in distances of
50 cm (18 inches).
16. Tap OK to set the
second point for the
scan area. The point
turns green once set.
17. Move the cart to set
the third point for the
scan area. Tap OK to
set the third point for
the scan area. The
point turns green once
set.
☞
Ensure the distance the
cart is moved is incre-
mental in distances of
50 cm (18 inches) and
angle with rst side is
90.
