15
7. Assembly

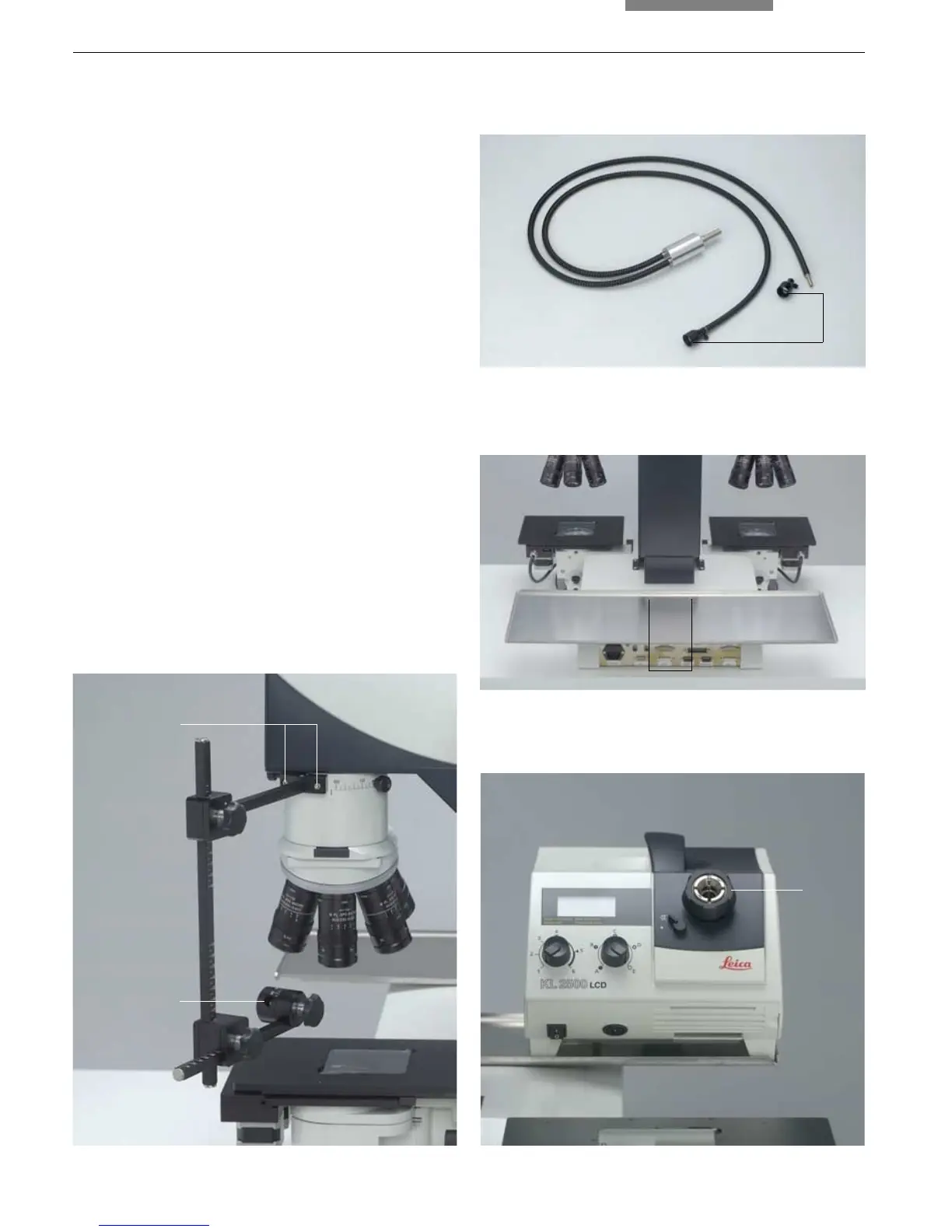

Fig. 5 Special articulated arms for oblique incident illumi-
nation
1 Fastening screws for the articulated arm
2 Receptacle for light guide
Fig. 8 Cold light illuminator KL2500 LCD
1 Connection for light guide
Oblique Incident Illumination
• Screw the special articulated arms onto the
left and right of the macroscope carrier (5.1).
• Screw the light guide with ø 4.5 mm (Fig. 6)
onto the cold light illuminator (8.1).
• Place the cold light source next to the stand
or onto the shelf that is to be screwed onto
the base of the comparison macroscope (7.1).
• Insert both light guide ends into the left and
right receptacles of the special articulated
arms (5.2) and tighten them using an Allen
wrench.
•Mount and fasten the focusing optics (6.1).
Fig. 7 Shelf for the cold light illuminator
1 Fastening screws for the shelf
Fig. 6 Light guide ø 4.5 mm
1 Focusing optics
1
2
1
1
1
