7. Assembly
7. Assembly
For instructions for assembling the stackable
stages and various slide holders, please refer to
Chapter “9. Accessories” →
page 31 ff.
Caution!
The stages and slide holders have to be mount-
ed before screwing in the objectives.
Only a few commonly used screwdrivers and
keys are necessary for assembly, which are in-
cluded in the delivery package.
Caution!
First, remove the transport anchors (4.1).
!
7.1 Comparison Bridge
• From above, set the comparison bridge onto
the dovetail guide (4.2) and push the bridge
downwards until the upper end of the dovetail
guide is tightly fastened.
• Fasten the comparison bridge using the side
clamping screw.
7.2 Illumination
Either one or two cold light sources can be
used. We recommend using the same cold light
source for both sides based on the illumination
method being used. A double-armed, flexible
light line is included for this purpose. The sec-
ond cold light source should then be used for
another illumination method.

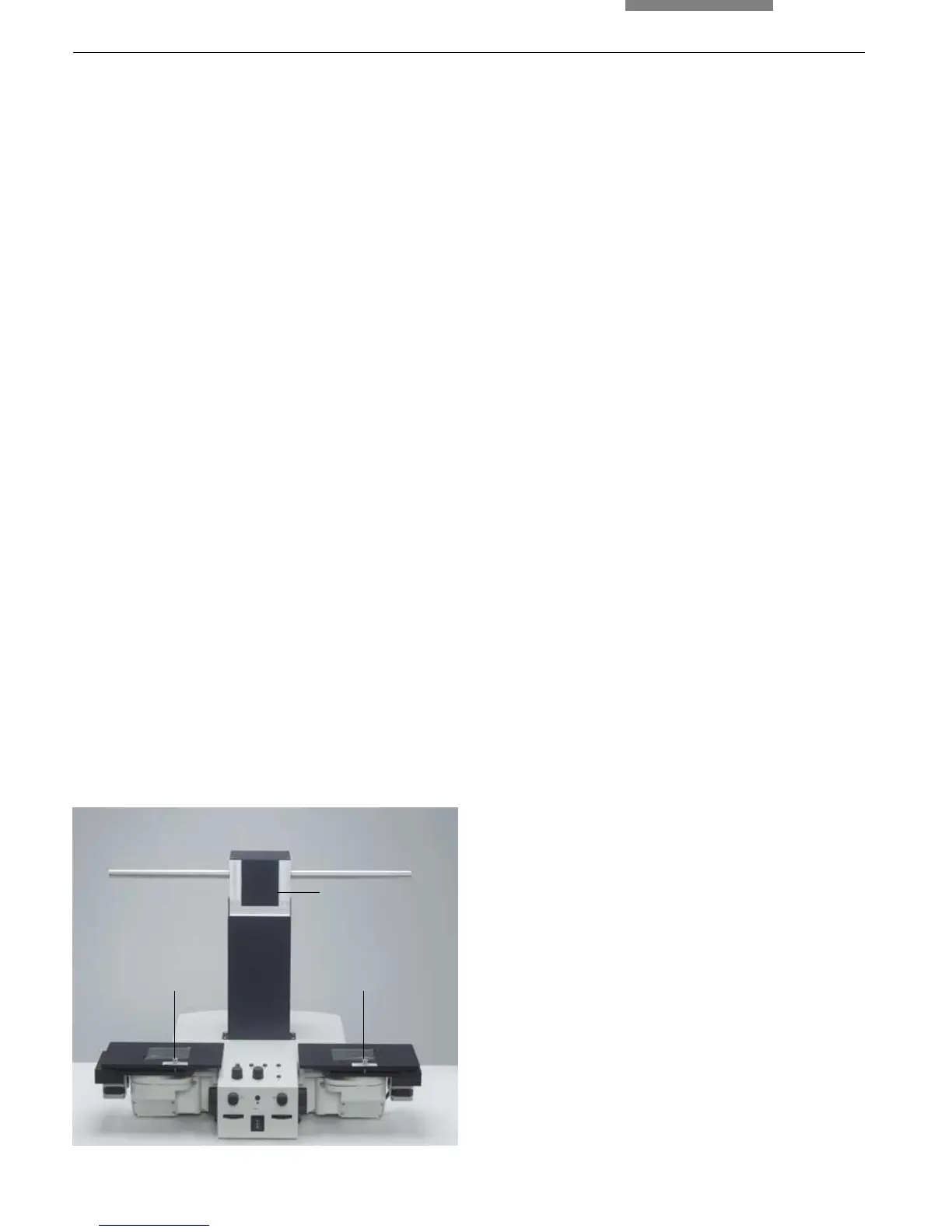

Fig. 4 Stand with carrying handles
1 Transport anchors
2 Dovetail guide
!
11
2
