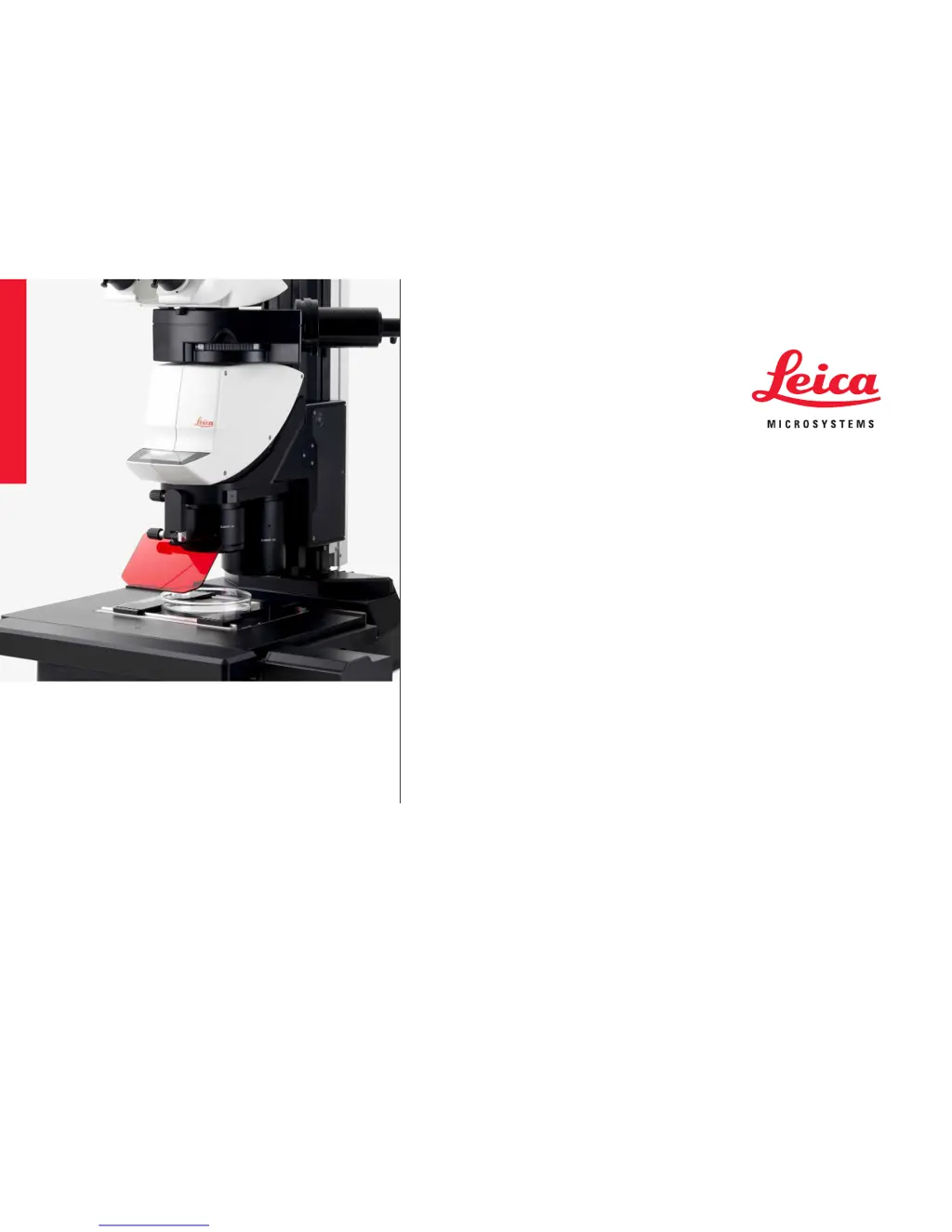

Leica M205 FA - User Manual

Questions and Answers

A
Amanda WoodAug 8, 2025
What to do if the Leica Microscope target system receives too little light?
- S
  Sharon LeonardAug 8, 2025
  If your Leica Microscope's target system isn't receiving enough light, or any at all, here's what you can check: * Ensure the shutter is open and the intensity switch isn't at its leftmost limit. If it is, open the shutter or rotate the intensity switch to the right. * Verify the light guide is correctly inserted into the light guide output. * Inspect the light guide for any damage. If damaged or defective, it should be repaired or replaced.
E
Eduardo HoustonAug 18, 2025
Why is the Leica M205 FA power indicator not illuminated?
- T
  Tammy RodriguezAug 18, 2025
  If the power indicator on your Leica Microscope isn't lighting up and the instrument isn't functioning after being switched on, it could be due to a few reasons: 1. Check that the power supply voltage is present and that the connecting cable is correctly plugged in and not defective. 2. Inspect the fuses in the instrument. If they are defective, replace them, ensuring you use the permitted replacement type only.
R
Richard ValdezAug 28, 2025
What to do if Leica M205 FA power switch is on but no function?
- P
  Paul HarrisonAug 28, 2025
  If the power switch on your Leica Microscope is illuminated but the instrument isn't functioning, the issue might be: * The housing cover may be loose or removed. Make sure to securely attach the housing cover. * The lamp might be worn out and needs replacing.

Summary

General Instructions

Safety concept

Read the "Safety concept" booklet for additional information about handling and care.

Important Safety Notes

Symbols Used

Warning of a danger

Indicates important information that must be read and complied with to avoid hazards.

Warning of hazardous electrical voltage

Indicates mandatory information regarding electrical voltage hazards.

Danger due to hot surface

Safety Instructions

Intended use

Responsibilities of person in charge of instrument

Safety Instructions (Continued)

Repairs, service work

Specifies that only original spare parts and trained technicians should perform repairs.

Light sources: Safety regulations

Protective measures for light sources, including UV protection screens.

Warning

Warns that UV radiation can damage the eyes and provides precautions.

Safety Instructions (Continued)

Lamp housing

Precautions for opening the lamp housing and covering air ducts.

Mercury lamp

Instructions for handling mercury lamps, including transport and replacement.

Assembly

Assembling the Focusing Column for TL Bases

Objective Nosepiece - Assembly

Objective Nosepiece - Adjusting Parfocality

Procedure for adjusting parfocality for consistent focus between objectives.

Leica FluoCombi III

Assembly

Adjusting the Parfocality

Leica IsoPro Stages

Manual Mechanical Stage: Assembly

Motorized Mechanical Stage: Assembly

Leica LED5000 Illumination

Leica LED5000 MCI

Leica EL6000 Light Source

Safety Notes

Covers general safety, electrical safety, and precautions for use.

Preparations

Operation

Details on controls, running-time meter, shutter, and intensity switch.

Troubleshooting

Lists common faults, possible causes, and remedies for the EL6000.

Fluorescence System

Filter Changer

Description of the FLUOIII® filter system, including filter sets and holders.

Rapid Filter Changers and Filter Types

Accessories

Leica PSC Controller

Specifications

Leica M165 FC; Leica M205 FA; Leica M205 FCA

Detailed optical data, maximum values, and working distances for the M series.

Leica EL6000 - Specifications

Technical specifications including dimensions, environmental conditions, and electrical safety.

Leica TL RC; Leica TL RCI

Leica M205 FA Specifications

General

Type	Stereo Microscope
Zoom Range	20.5:1
Software	Leica Application Suite (LAS)
Magnification	7.8x - 160x
Objective Lenses	PlanApo 1.0x
Illumination	LED
Aperture diaphragm	Motorized
Camera	Optional digital camera
Field of View	Up to 23 mm
Dimensions	Varies depending on configuration
