7. Assembly
7.3 Eyepieces
• The eyepieces are inserted into the eyepiece
tubes on the tube.
7.4 Objectives
The position of the individual objectives is pre-
set at the factory. The object turret eyes are
numbered.
• Screw the objective into the objective turret
(Fig. 15).
Eye Objective
No. 1 0.4x
No. 2 1x
No. 3 2x
No. 4 4x

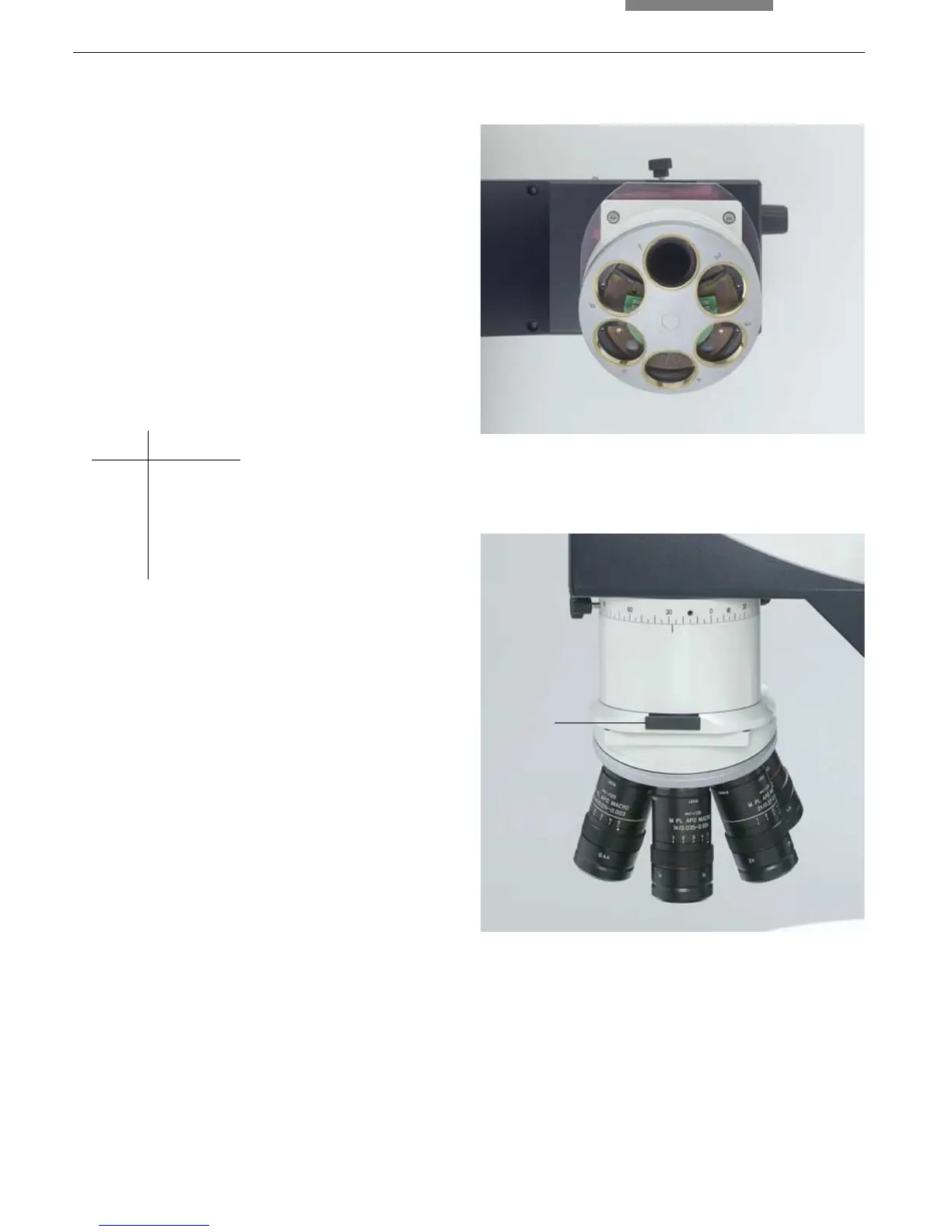

Fig. 16 Objective turret with objectives
1 Filter receptacle
Fig. 15 Objective turret from below
