30
Version 2.0, Revision I
Instrument Setup
4

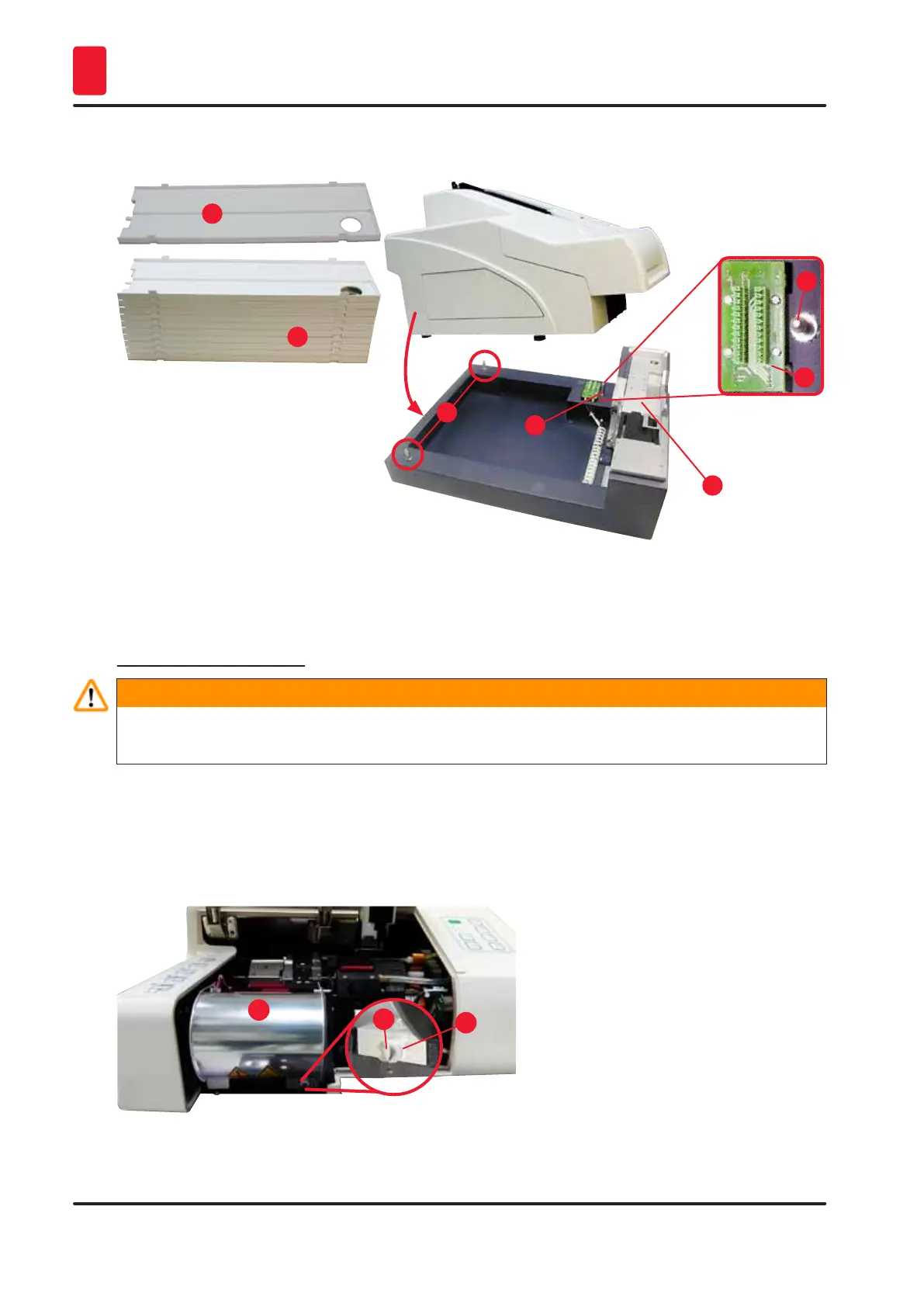

5. Place the stack of trays (→ "Fig. 13-5") onto the lifting table (→ "Fig. 13-4") of the automated
unload station. For details on the lifting table controls, see (→ p. 49 – 5.2 Display indications).
1
2
2
3
4
5
6
Fig. 13
4.6 Installing/exchanging the flash bulb
Removing the old flash bulb
Warning
Switch the instrument off and unplug it from power supply. Allow the flash bulb to cool off before
removing it. Do not handle the flash bulb with bare hands. Use a glove or tissue.
1. Open the lid (→ "Fig. 12-6") to gain access to the reflector (→ "Fig. 14-1").
2. Remove screw (→ "Fig. 14-3") (use screwdriver supplied as part of tool set). Mind the washer
(→ "Fig. 14-2").
3. Swing the reflector (→ "Fig. 14-1") upwards.
1
2
3
Fig. 14
