Warning
To insert/remove, hold the flash bulb as shown in (→ "Fig. 15") (left). Do not touch it as shown in
(→ "Fig. 16").

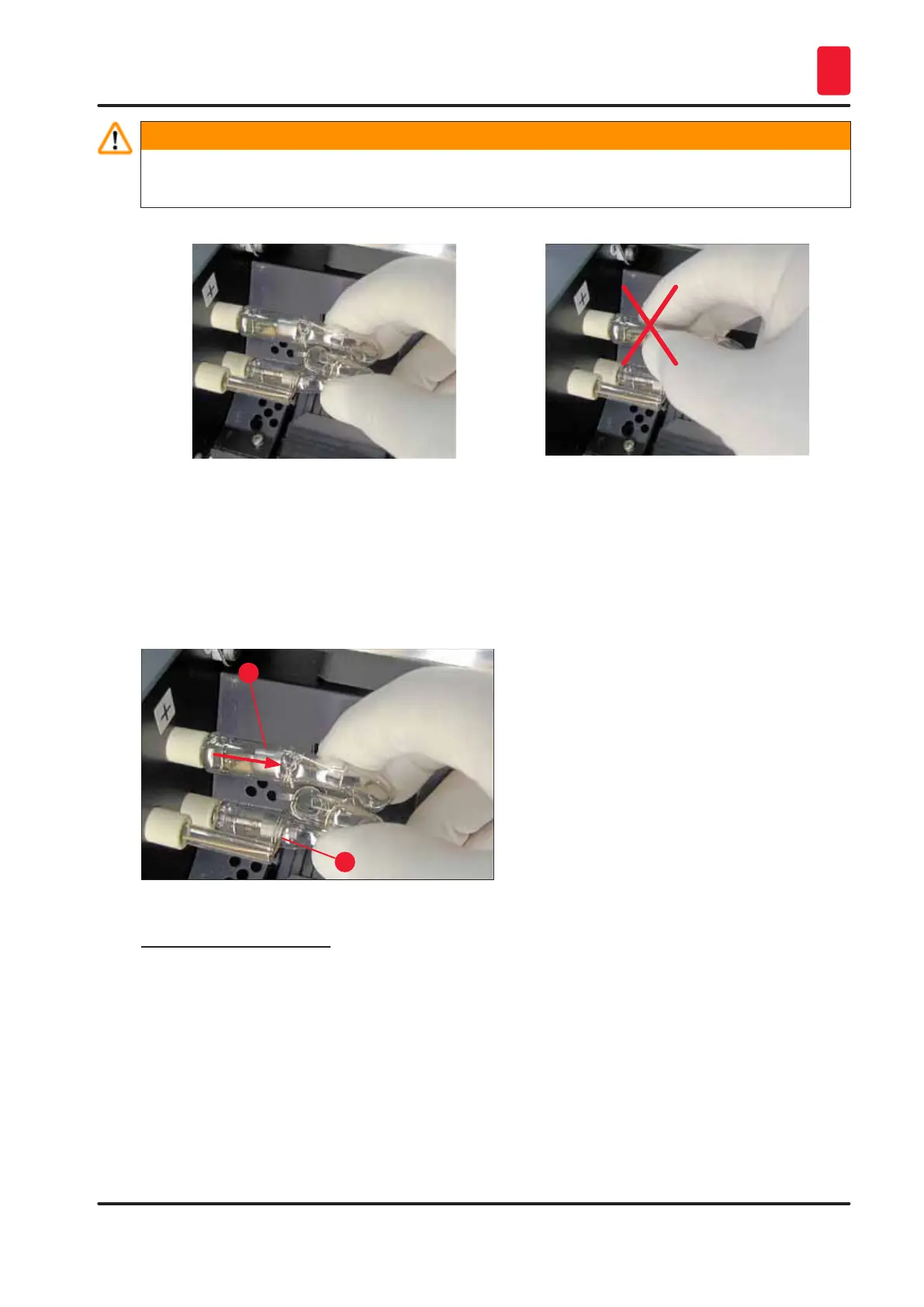

Fig. 15 Fig. 16
4. Carefully pull out the old flash bulb (→ "Fig. 17-1") straight to the right, do not twist it. If the
flash bulb cannot be pulled out easily, gently rock it back and forth to get it unseated from the
socket.
5. Make sure the contact spring (→ "Fig. 17-2") is removed from the priming wire (→ "Fig. 18-4")
of the bulb (See also (→ "Fig. 18") and (→ "Fig. 19-1")).
1
2
Fig. 17
Inserting the new flash bulb
1. First insert a shielding glass (→ "Fig. 18-1") into the two holders (→ "Fig. 18-2").
