5. Operation
5.1 Control panel functions
The control panel
• consists of a membrane keyboard with six pressure-sensitive keys (four of them with an LED, two LED
displays and a two-figure sevensegment display (→ "Fig. 38-1")),
• controls the printer functions and the print jobs that are defined via the control software,
• indicates current printer status and processes in progress,
• indicates errors and/or error messages,
• controls the (optional) automated unload station.
1
5
3
7
2
6
4
8
9

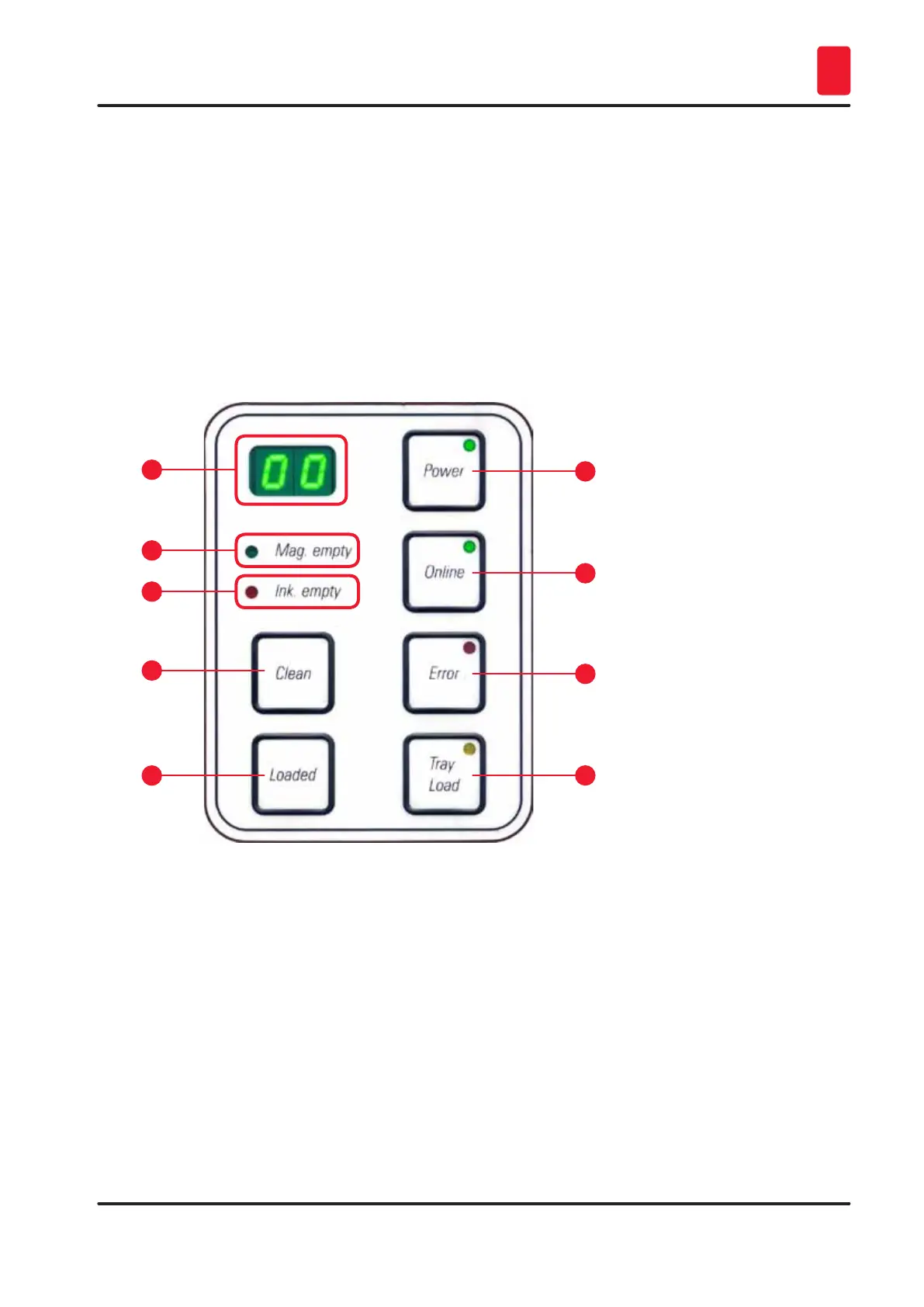

Fig. 38
MAG. EMPTY LED (→ "Fig. 38-2")
LED off:
• Magazines are full or up to that point no further slides have been requested from a magazine that has
just been emptied.
LED flashing:
• Flashing LED and number on display indicate which magazine is empty.
