Leica IP S - Page 74

74
Version 2.0, Revision I
Troubleshooting
7
1
2

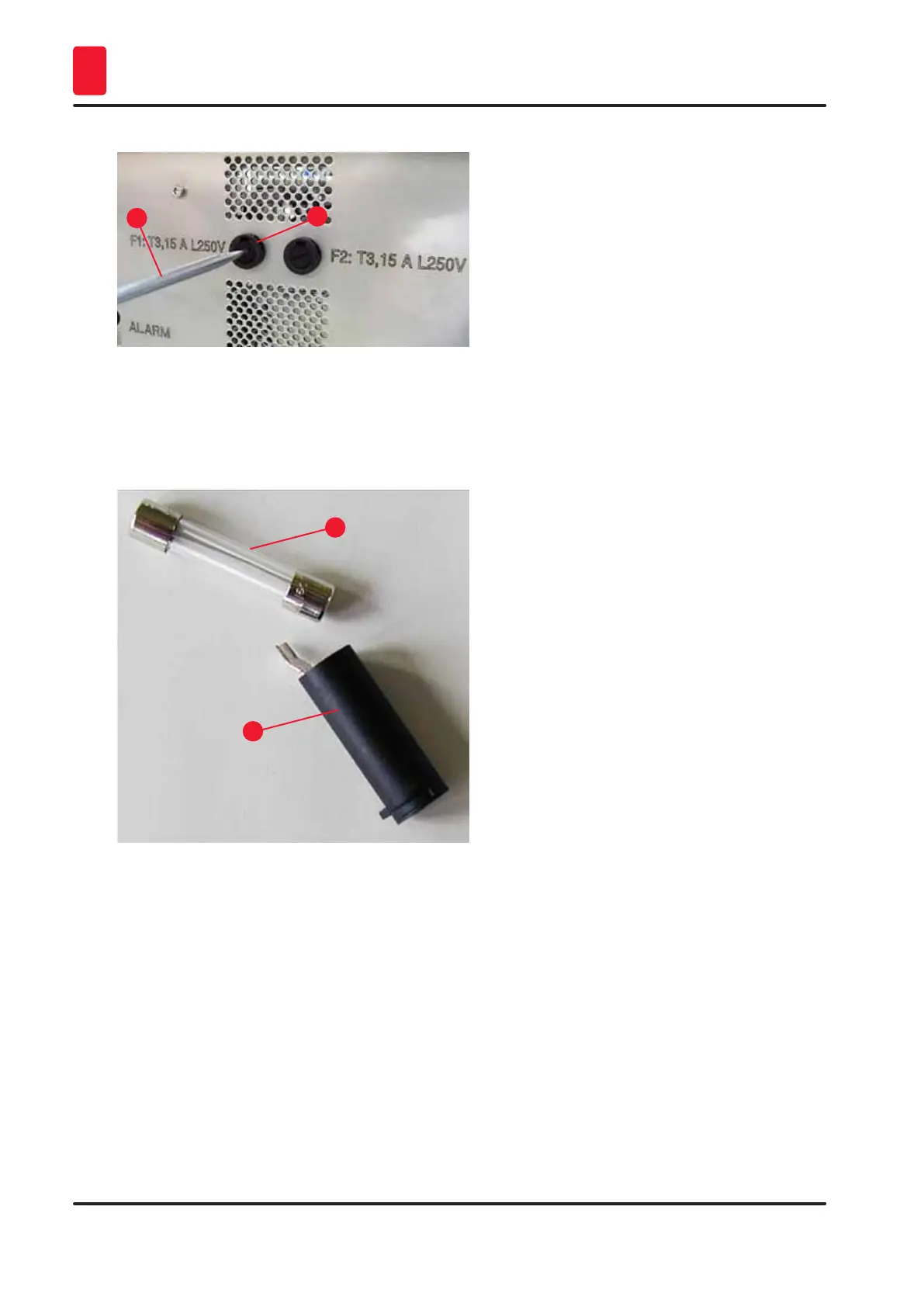

Fig. 63
2. The fuse holder is released and can be removed.
3. Remove the defective fuse (→ "Fig. 64-2") from the fuse holder (→ "Fig. 64-1") and insert the
correct type replacement fuse.
1
2
Fig. 64
4. Insert the fuse holder with the replacement fuse. Push the holder in with the screwdriver and
secure it with a 1/4 turn to the right.
