UNITY MOTORHOME APPLIANCE AND EQUIPMENT OPERATION
BATHROOM ROOF VENT
The bathroom roof vent provides air ow and venting
when using the shower�
OPERATING CONTROLS

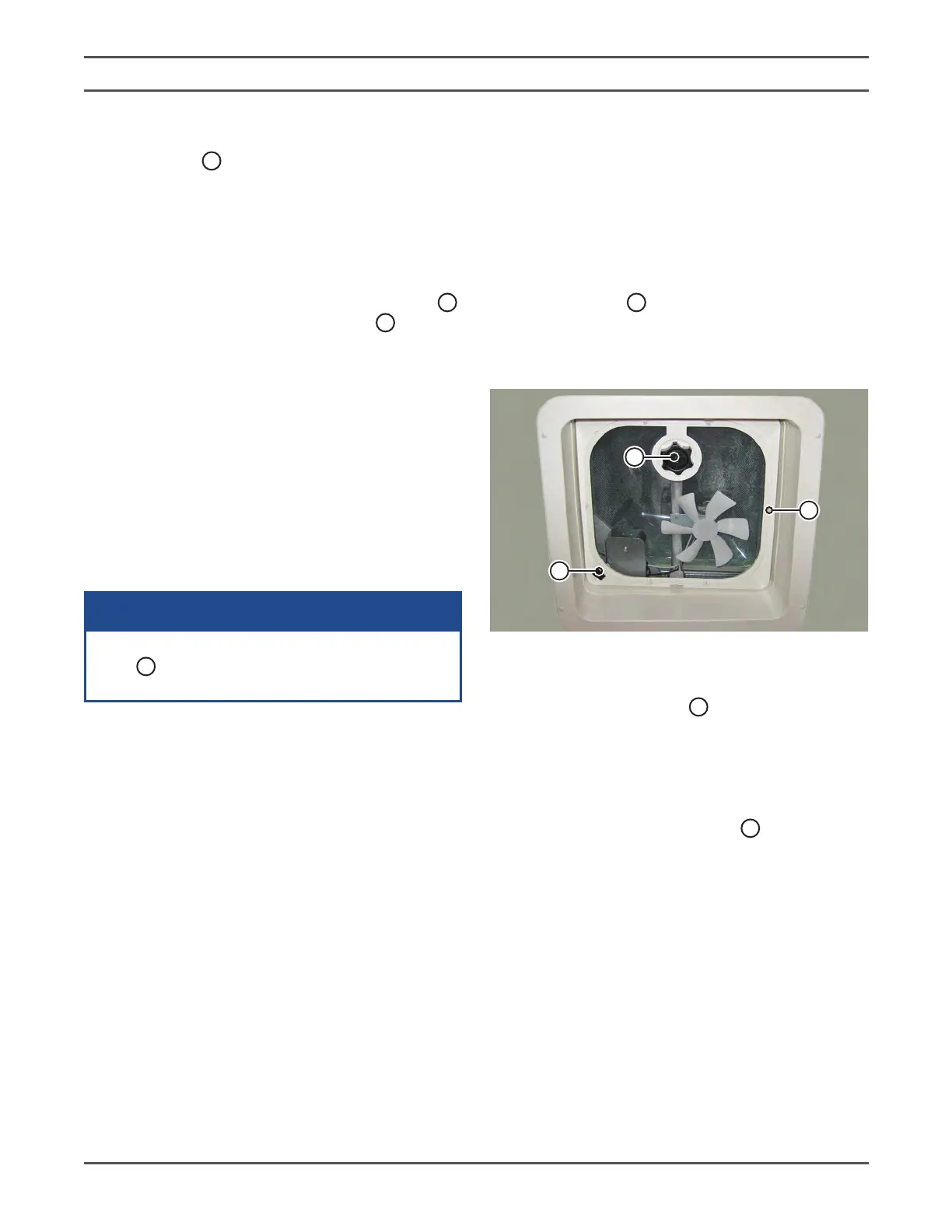

VENT HOOD HEIGHT CONTROL
The rotary knob
9
controls the height position
of the vent hood. Turn the knob clockwise to pull
the vent hood down and close. Turn the knob
counterclockwise to raise and open.
9
10
11
FAN ON/OFF SWITCH
The 12 volt DC fan provides proper ventilation of the
shower cubicle. The switch
10
is used to turn the fan
on and off�
CLEANING INSTRUCTIONS
1� Turn off the fan motor.
2� Release the retaining tabs
11
securing the
screen and pull the screen down�
3� Wash the screen and fan blade with a light,
non-abrasive soap, rinse and dry.
4� Reinstall the screen by gently snapping back into
place�
CLEANING TIP
Once washed and dried, you may wipe or spray
protectant onto the screen and blade (use only a
water based protectant – do NOT use a petroleum
based protectant). Buff to a high-gloss nish. This
will minimize the amount of dust and dirt buildup.
VENT HOOD HEIGHT CONTROL
The rotary knob
6
controls the height position of the
vent hood. Turn the knob clockwise to pull the hood
down and close it. Turn the knob counterclockwise to
raise or open the hood�
CLEANING INSTRUCTIONS
1� Turn off the fan motor using the on/off switch
3
�
2� Locate the thumb tab on the screen
7
, and pull
down to unsnap the screen�
3� Wash the screen and fan blade with a light,
non-abrasive soap, rinse and dry.
4� Reinstall the screen by gently snapping it back
into place�
CLEANING TIP
Once washed and dried, you may wipe or spray
protectant onto the screen and blade (use only a
water based protectant – do NOT use a petroleum
based protectant). Buff to a high-gloss nish. This
will minimize the amount of dust and dirt buildup.
The power roof vent is protected by a 4 amp
fuse
8
. If the fan fails to operate, verify that
the fuse is intact and replace if necessary.
