85
UNITY MOTORHOME ELECTRICAL SYSTEM OPERATION
6
7
NOTE: GFCI recepticals may not appear as shown
in this manual� If a GFCI trips repeatedly there is
likely a signicant fault in that circuit. Have the faulty
circuit and the GFCI investigated and repaired by a
qualied technician before using it again.
For detailed wiring, GFCI locations and GFCI-
protected receptacles see the AC wiring schematics.
The GFCI will not completely eliminate the
risk of electrical shock. Small children or
persons with heart conditions should be
extra cautious because electrical shock could
cause burns or cause the heart to stop even
when a GFCI is present.
CAUTION
NOTE: The GFCI circuit in the bathroom will trip
when a fault occurs at the exterior receptacle. The
U24MB galley receptacle is protected through a
GFCI located in the pillar behind the driver's seat.
AUXILIARY LP GAS GENERATOR
(OPTIONAL)
The generator is located below the coach oor in a
location which varies depending on the oor plan.
Before operating the generator, refer to the
LP Gas generator operator’s manual located
in the Motorhome Information Kit.
CAUTION
12 VOLT DC CHASSIS FUSES
Refer to the chassis operator’s manual for chassis
fuse functions�

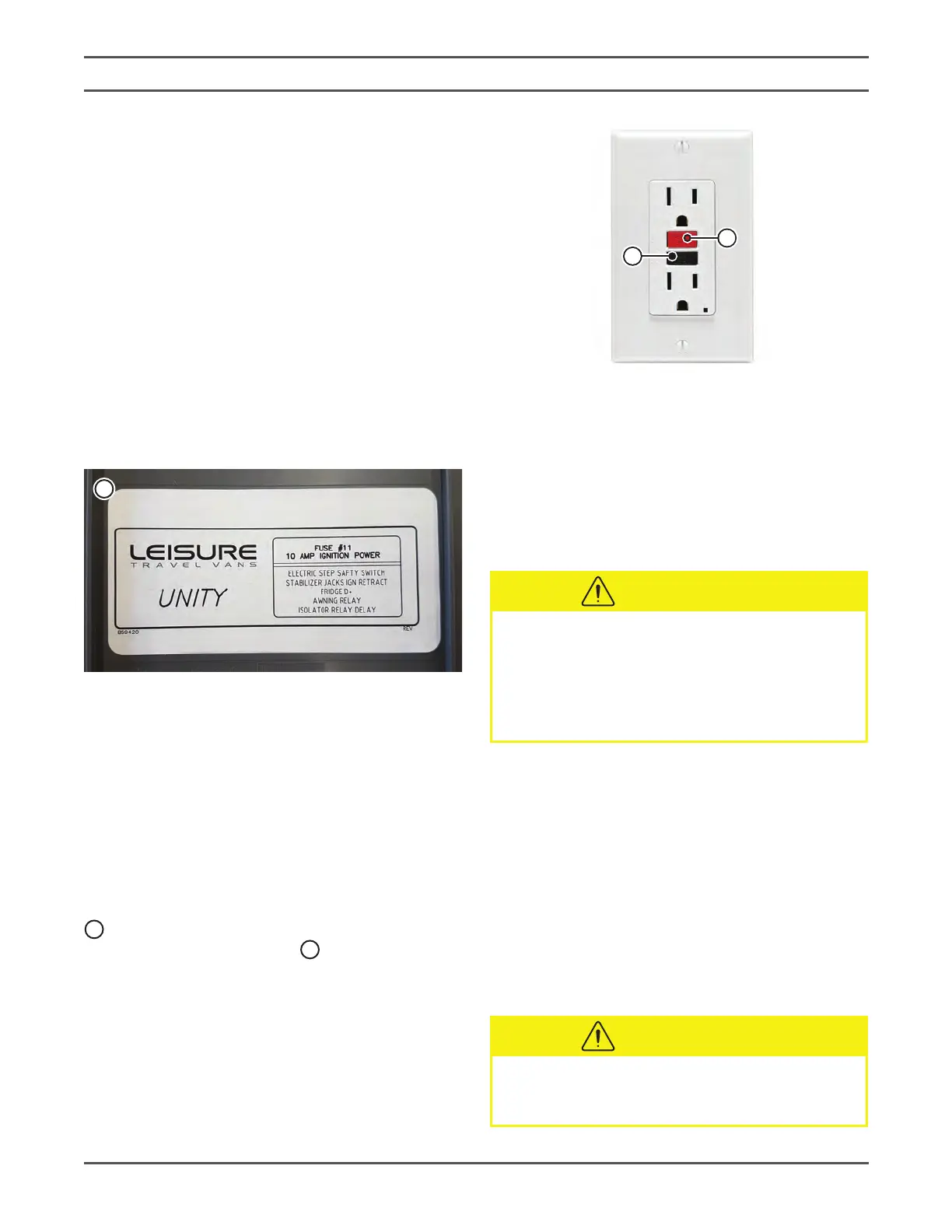

DRIVER SEAT PEDESTAL FUSES
Fuse #11: 10 amp fuse powers the following
components:
• Electric step safety retract
• Stabilizer jack safety retract
• Refrigerator (when on AUTO select 12 V power
source
• Awning relay (safety lock)
• Isolator relay delay module
5
GROUND FAULT CIRCUIT
INTERRUPTER (GFCI)
Various outlets in the motorhome, particularly those
near sinks and water supplies, are connected to
a GFCI. A GFCI detects electrical current that is
travelling along an unintended path and automatically
stops the current to reduce the risk of electrical
shock and re. If a GFCI breaker trips, unplug all the
appliances on that circuit and press the reset button
6
on the outlet. To test the operation of the GFCI
breaker, press the test button
7
�
