The two hydraulic operations (forward/reverse) are depending on how the
connections are made to the tractor.
• Hydraulic system (I)
The blue marked hydraulic system (I) operates the following functions:
• the operation to fold the frame supports with rotors in or out between the
following position:
- the position after operating the hydraulic system II,
- headland position,
- working position.
• the operation floating during tedding.
• Hydraulic system (II)
The white marked hydraulic system (II) operates the following functions:
• the operation to lift the folded frame until it is lifted out of the transport
support.
• the operation to lower the folded frame into the transport support
(transport position).

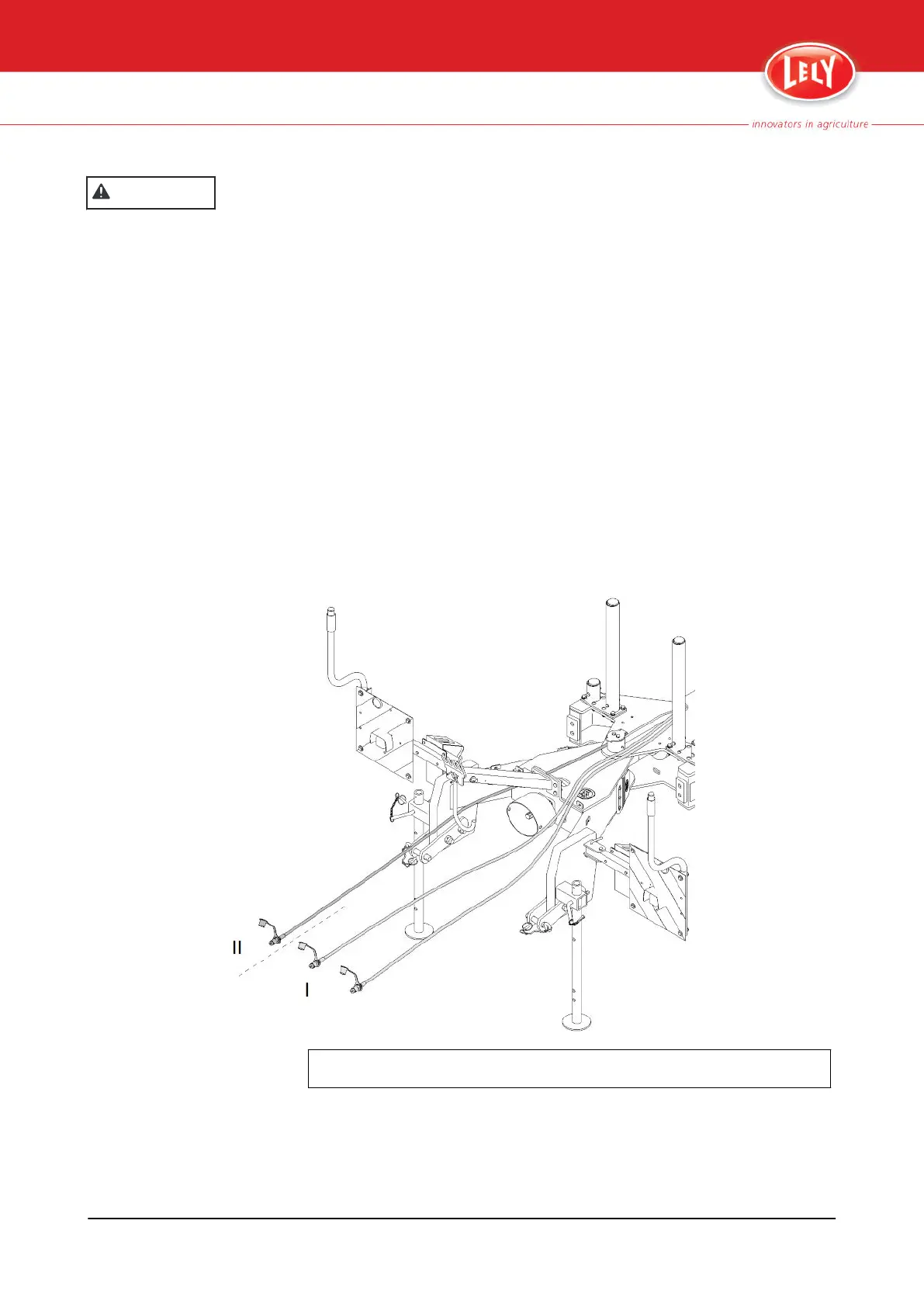

I Hydraulic system (blue)
II Hydraulic system (white)
Figure 6. Hydraulic system marks and systems
CAUTION
3-2 Operation
T-H021.1301EN
