5.4101.8538.0 B
M12 Connectors 8-7
Replacement
1. Use an O-ring picker (2) (see figure 30 on page 8-7) to remove the seal (1).

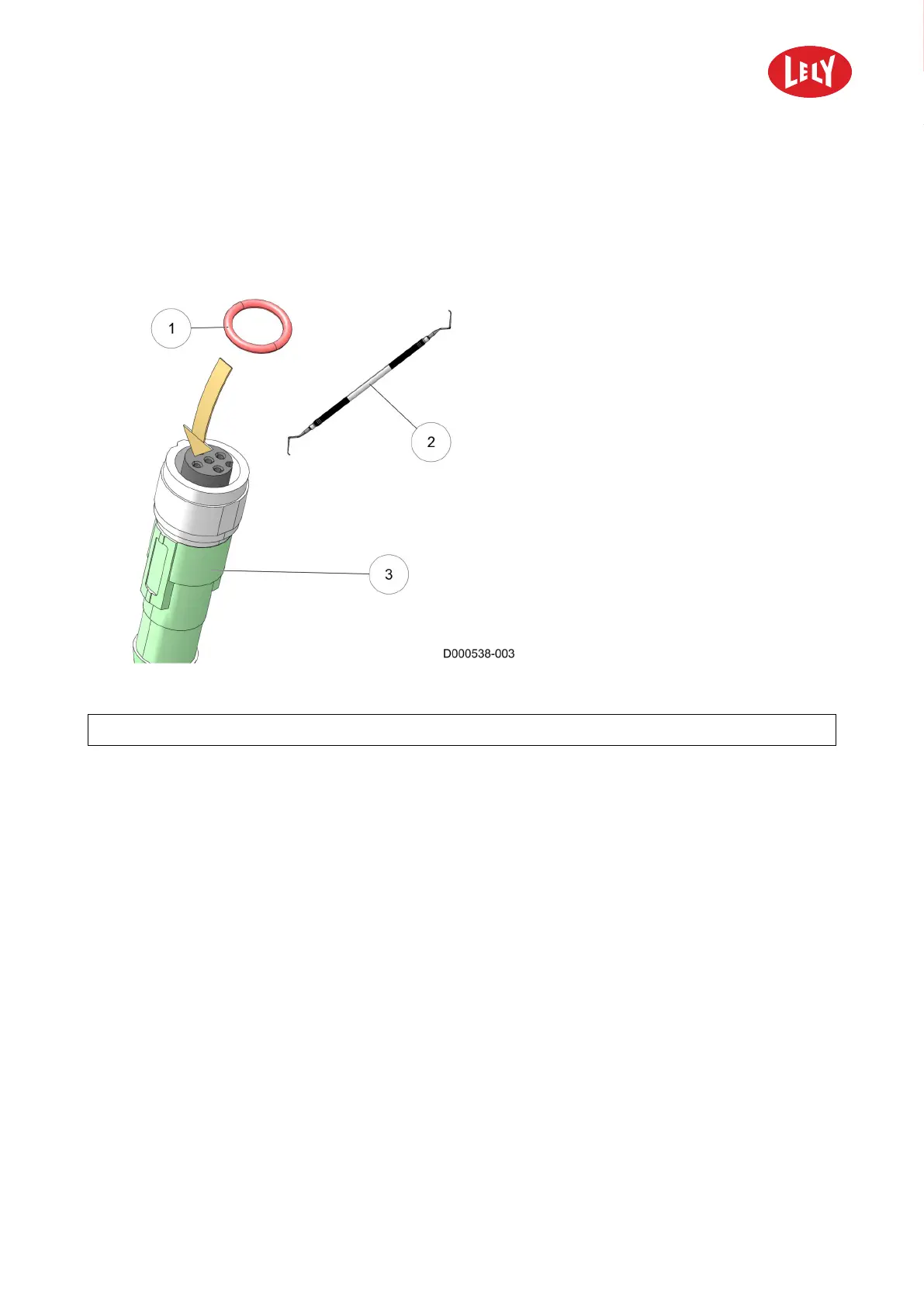

Figure 30. Replace M12 seal
KEY: 1. Seal - 2. O-ring picker - 3. M12 connector
2. Place a new seal in the M12 connector.
Close up
1. Connect the M12 connector (see Connect or disconnect the M12 Connectors on page 8-1).
