Dealer Control Center
This menu provides access for the installer or service technician to perform various functions. Advance equipment congurations, notications, tests, diagnostics,
installation reports and general information about the system.
dealer
control center
equipment
tests
notifications
information
diagnostics
exit
Use to make changes to equipment settings and add or remove
non-communicating equipment or accessories. In addition the reset all
equipment option is available. This will allow the installer to reset all
equipment and reconfigure.
Use to display
system notifications
Use to run test on
system components
Use to run
diagnostics on
system components
Use to display
system information
Exit to Home
screen.
To navigate back to the dealer control center,
touch on the Dave Lennox icon when available
on the top left-hand side of the screen.
<
<
To navigate back to the previous screen, touch
on the left arrow when available.
“Previous Screen
Name”
installation
report
Used to display installation results.
NOTE: This report is not available until after
exiting the dealer control center following the
commissioning procedure. Exit and return to
the dealer control center to view the installation
report.

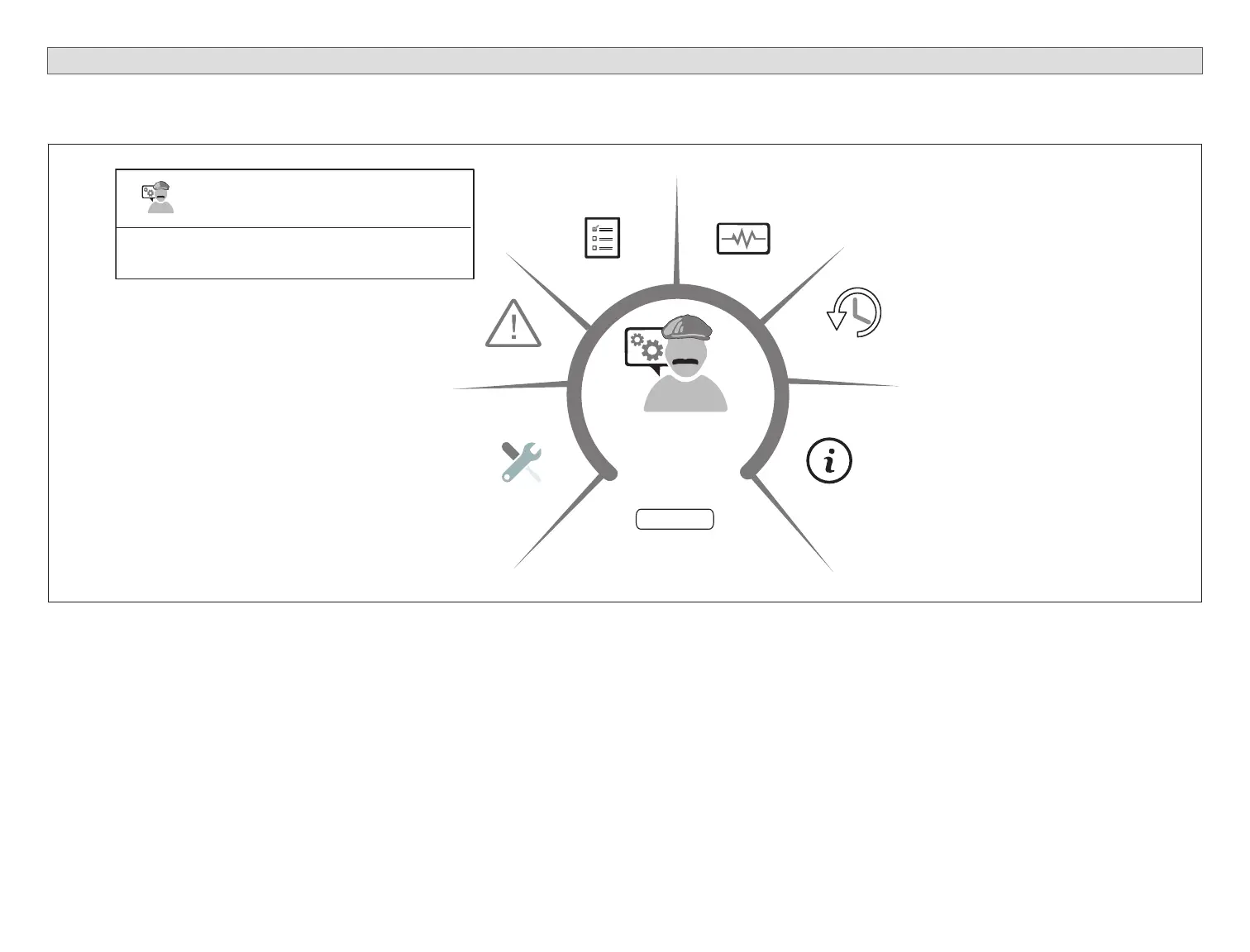

Figure 19. Dealer Control Center
