3
Shipping and Packing List
Table 1. Packing List
Quantity Description
1 iComfort S30 ultra smart thermostat includes a smart hub and HD Display
4 Mounting screws (#6 X 1.25” pan head)
4 Wall anchors (alligator anged solid wall anchors)
1 Installation and setup guide
1 User guide
1 Warranty certicate
NOTE: Due to Lennox’ ongoing commitment to quality, features and options
are subject to change without notice and without incurring liability.
Improper installation, adjustment, alteration, service or maintenance
can cause property damage or personal injury. Installation and service
must be performed by a qualied installer and servicing agency.
Operating and Storage Environment, Electrical and Dimensions
• Operating temperature is 32°F to 176°F (0 to 80°C)
• Shipping and storage temperature range is -4°F to 140°F (-20°C to 60°C)
• Operating humidity range is 10% to 90% non-condensing at 104°F (40°C)
• Storage humidity range is 5% to 95% non-condensing at 104°F (40°C)
• Smart Hub Power Input: 24VAC, 1AMP at 60Hz.
• Smart Hub Power Output to HD Display: 12VDC
• Dimensions (H x W x D):
» HD Display: 7-1/4” x 5” x 1” (184 x 122.5 x 23 mm)
» Smart Hub: 4-1/2 x 4-/2 x 1-1/2” (114 x 114 x 38 mm) - antenna length is
7-1/4” (184 mm)
Smart Hub External Component Locations, Button, LEDs,
Terminals, Wiring Specications and Sensor Wiring
External Component Locations
System Status LED
System Commissioning
Status LED
USB Port
Dealer commissioning and
manual reboot button
Terminal Connection Access Cover
Antenna

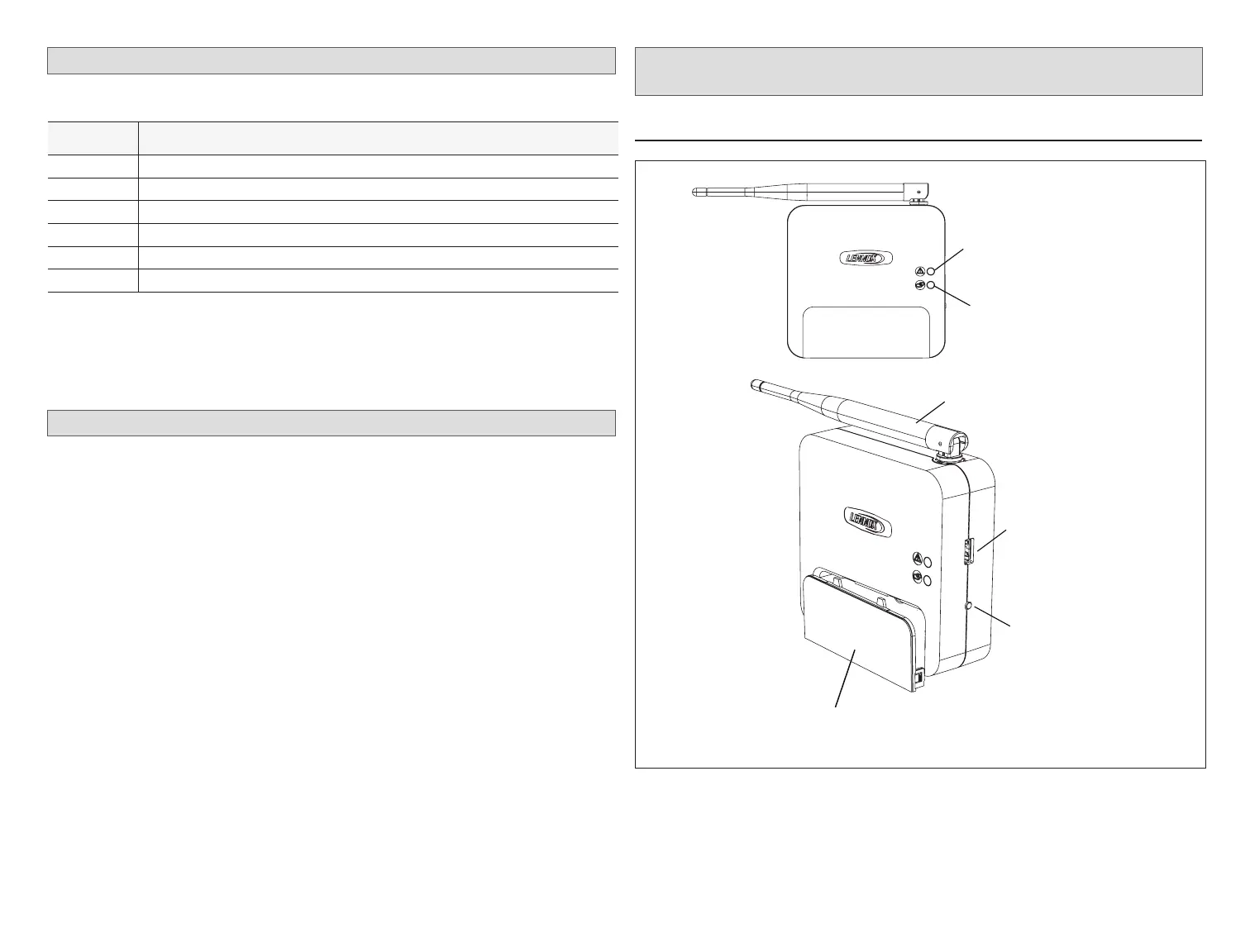

Figure 1. Smart Hub Indicators and External Components
