Lennox MHA Series Service Manual

34

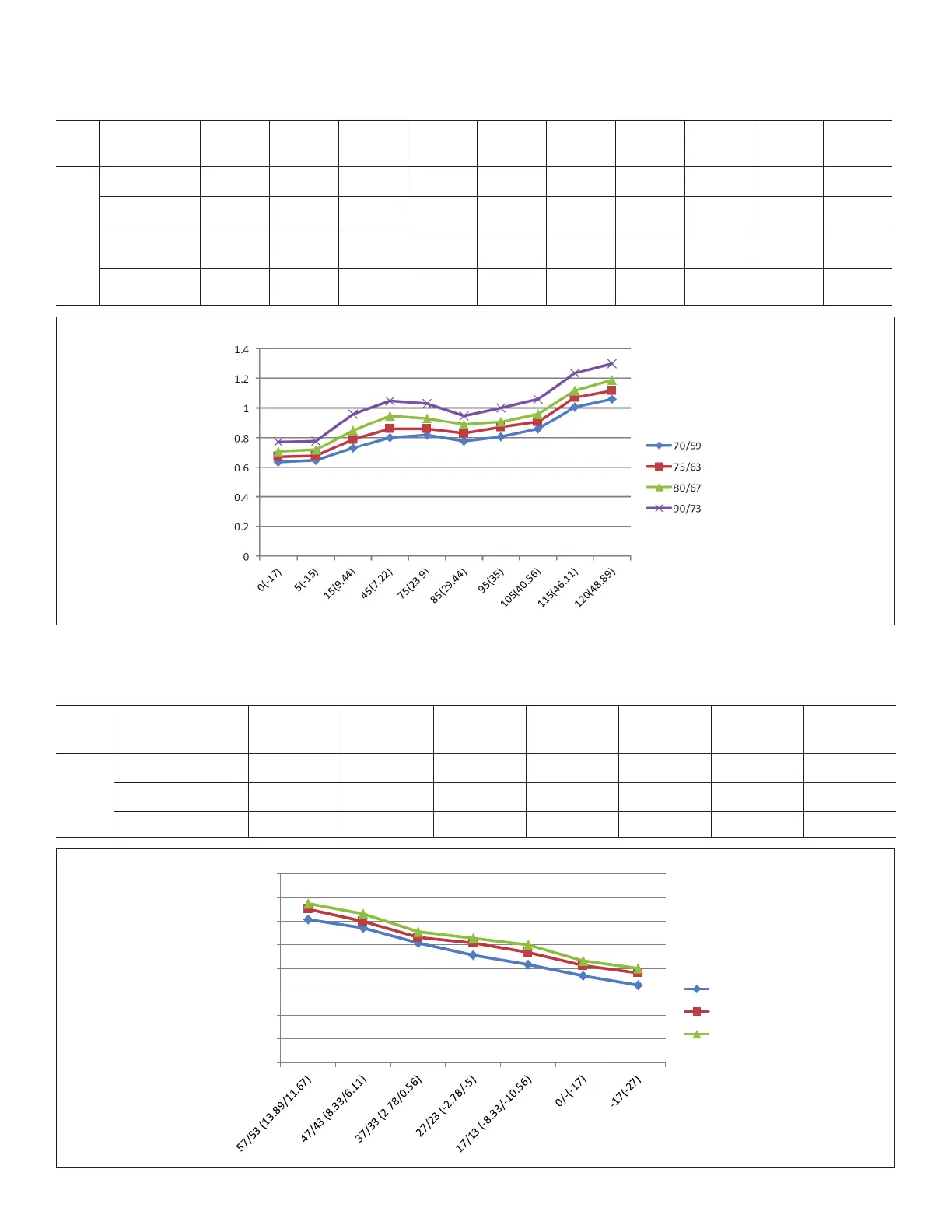

16.1. Cooling Chart
Table 11. Cooling - Fahrenheit (Celsius)
°F(°C) ODU(DB)
IDU(DB/WB)
0
(-17)
5
(-15)
15
(9.44)
45
(7.22)
75
(23.89)
85
(29.44)
95
(35)
105
(40.56)
115
(46.11)
120
(48.89)
PSI
70/59(21.11/15) 93 94 106 116 119 113 117 125 147 154
75/63
(23.89/17.22)
97 99 115 125 124 120 126 132 155 162
80/67
(26.67/19.44)
103 104 123 138 135 129 132 140 162 173
90/73
(32.22/22.78)
112 113 139 152 149 138 145 154 180 189
16.2. Heating Chart
Table 12. Heating - Fahrenheit (Celsius)
°F(°C) ODT / IDT 57/53
(13.89/11.67)
47/43
(8.33/6.11)
37/33
(2.78/0.56)
27/23
(-2.78/-5)
17/13 (-8.33/-
10.56)
0/-2
(-17/-19)
-17/-18
(-27/-28)
PSI
55 439 413 367 330 302 268 239
65 471 435 386 368 339 297 276
75 489 457 381 381 362 312 290
0
0.5
1
1.5
2
2.5
3
3.5
4
55
65
75
