Step 4. Removethescrewssecuringthefanmotorto

body.Thenremovefanmotor.

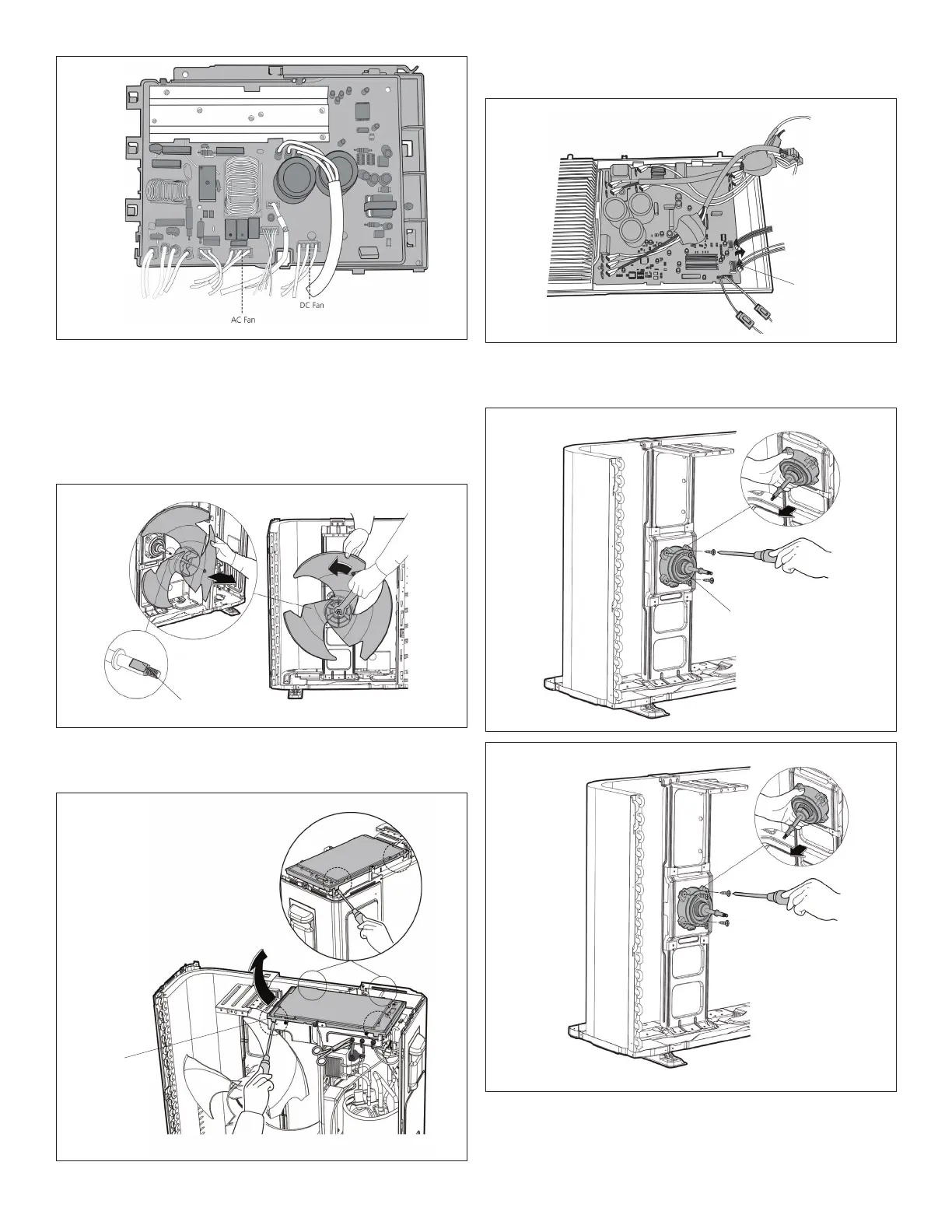

17.2.8. Fan Disassembly (MWHA024S4)

Step 1. Removethenutsecuritythefanwithaspanner.

Thenremovethefan.

D Cut

Step 2. Releasethehooksandthenopentheelectronic

controlboxcover.

Hook

Step 3. Disconnecttheconnectorforthefanmotorfrom

theelectroniccontrolboard.

Fan Motor Connector

Step 4. Removethescrewssecuringthefanmotorfrom

body.Removethefan.

Fan Motor
