Lennox XC17 Series

Page 4
XC17
208/230V−60 Hz−1 Ph
Model Number
Unit Compressor Condenser Fan
Maximum Over−
current Protection
(amps)
1
Minimum
Circuity
Ampacity
2
Rated Load
Amps (RLA)
Locked
Rotor Amps
(LRA)
Motor HP Nominal RPM
Full Load
Amps (FLA)
XC17−060−230−01 60 35.0 26.4 134.0 1/4 675 2.0
XC17−060−230−02 60 35.0 26.4 134.0 1/4 675 2.0
XC17−060−230−03 50 33.3 25.0 134.0 1/4 675 2.0
1
HACR type circuit breaker or fuse.
2
Refer to National or Canadian Electrical Code manual to determine wire, fuse and disconnect size requirements.

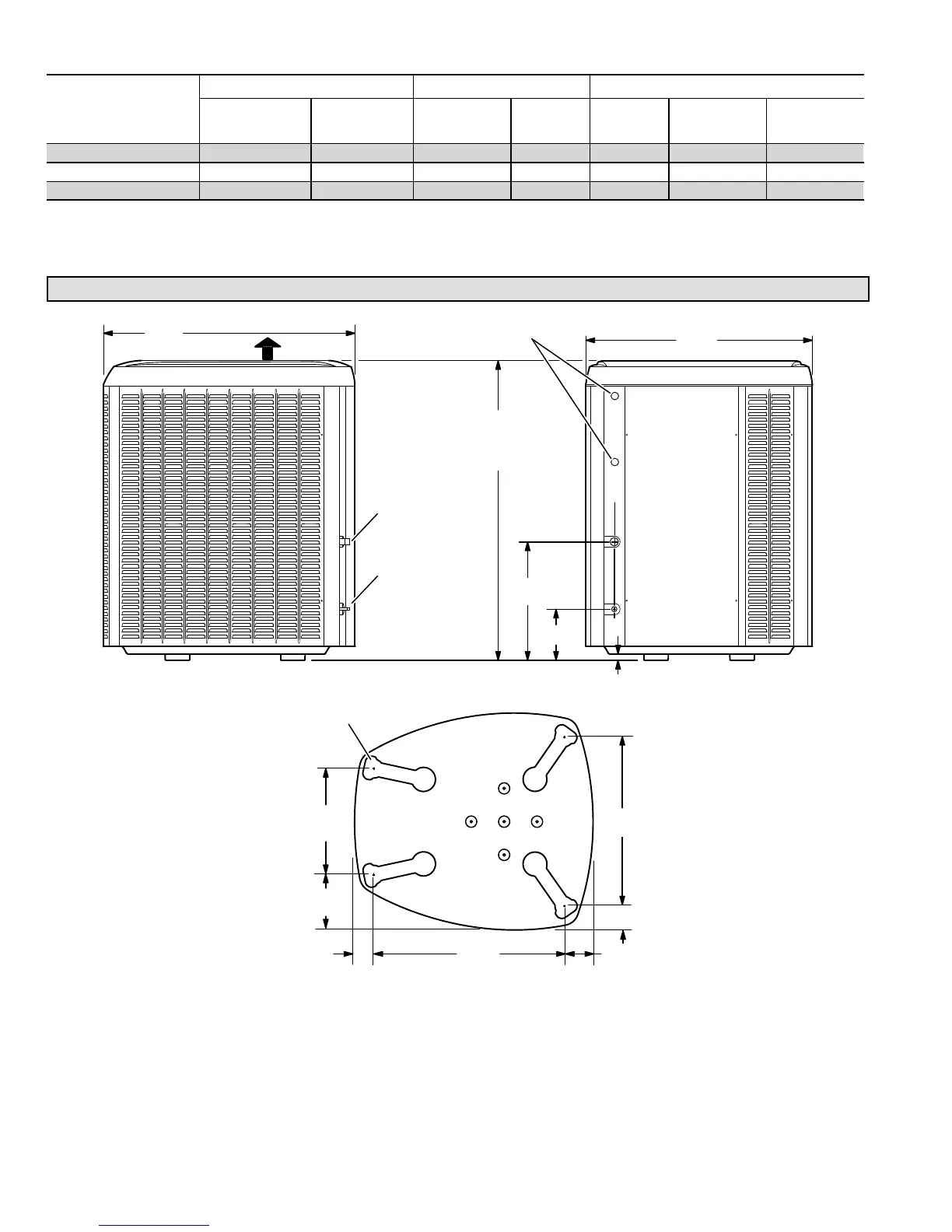

Unit Dimensions − Inches (mm) and Parts Arrangement
4−5/8
(117)
39.40"
(1003)
35.50"
(902)
18.60"
(470)
8.00" (203)
1 (25)
LIQUID
LINE
INLET
SUCTION LINE
INLET
ELECTRICAL INLETS
BASE WITH ELONGATED LEGS
SIDE VIEW
ACCESS VIEW
DISCHARGE AIR
[−024] 41" (1040)
[−030 THROUGH
−060] 47" (1194)
16−7/8
(429)
8−3/4
(222)
26−7/8
(683)
3−3/4 (95)
30−3/4
(781)
3−1/8
(79)
UNIT SUPPORT
FEET
