Lennox XC17 Series

Page 51
XC17
Unit Wiring Diagrams
Service technician will need to visually inspect the unit being service to determine which wiring diagram is applicable. Quick
verification can usually be made by comparing the wiring diagram located on the unit access panel to the following diagrams.

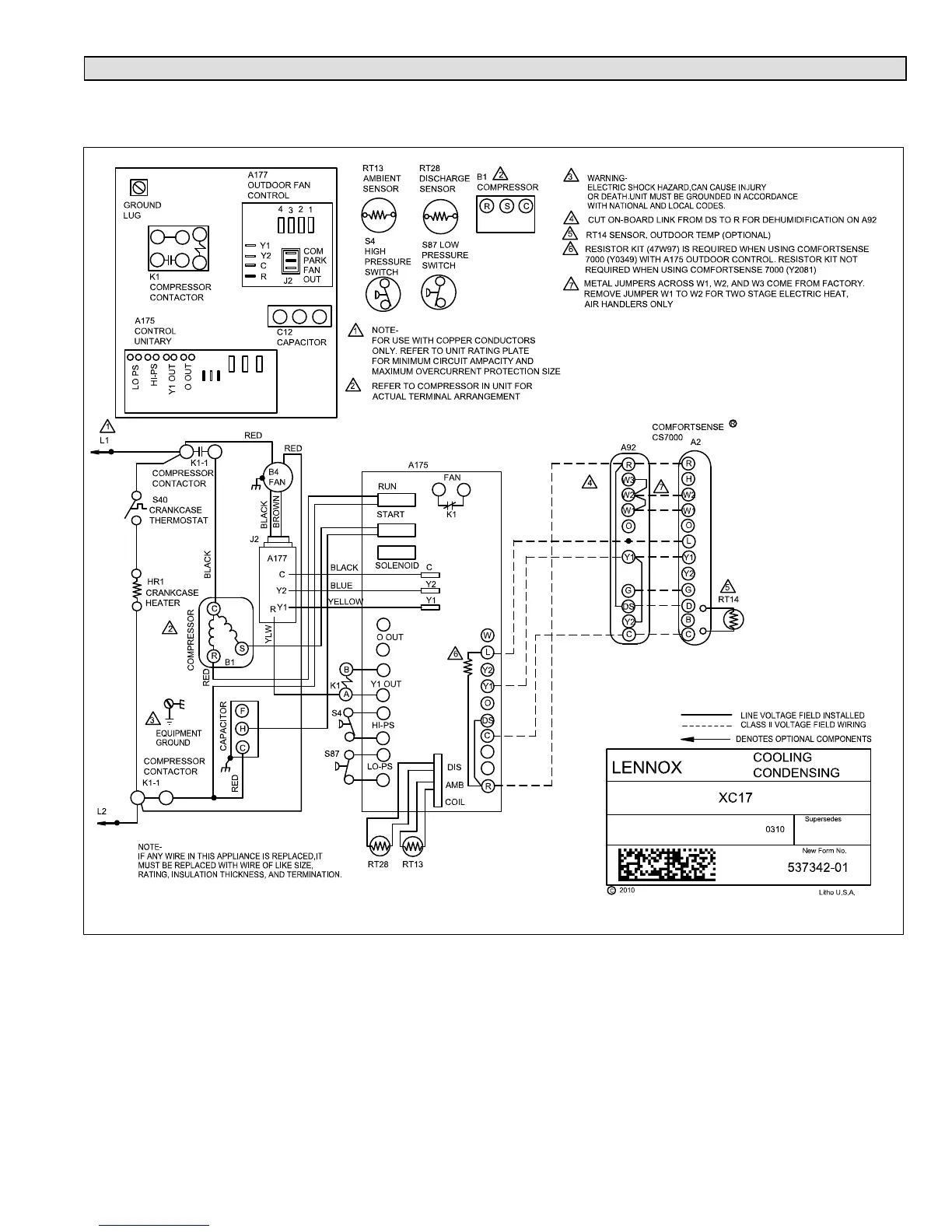

Figure 27. Typical XC17 Wiring (Non−communicating − Original) (XC17−XXX−230−01)
