XC17

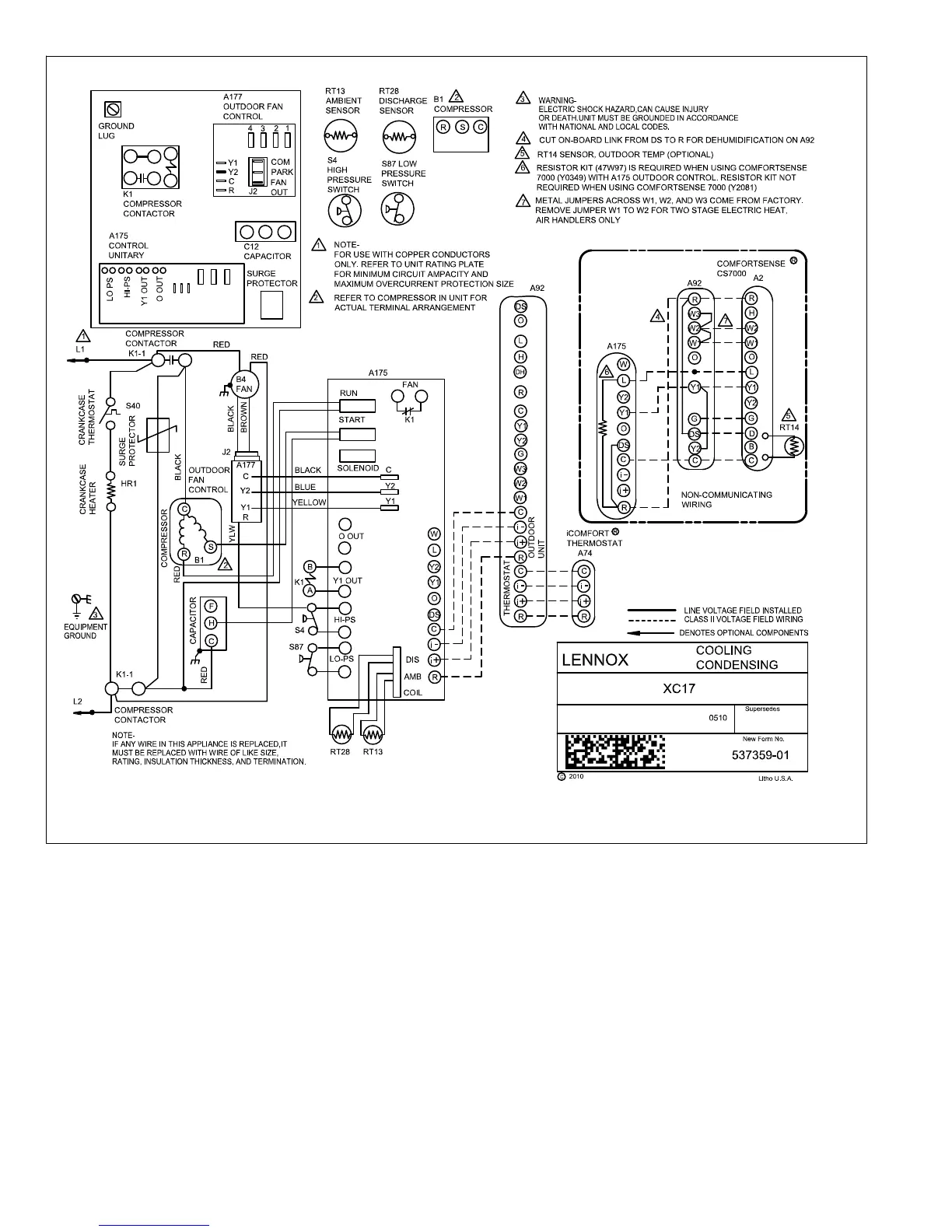

Figure 30. Typical XC17 Wiring (Communicating, Surge Protection and A177 Fan Motor Control Wiring Change)
(XC17−XXX−230−02)
