Lenovo 20L5 - Page 73

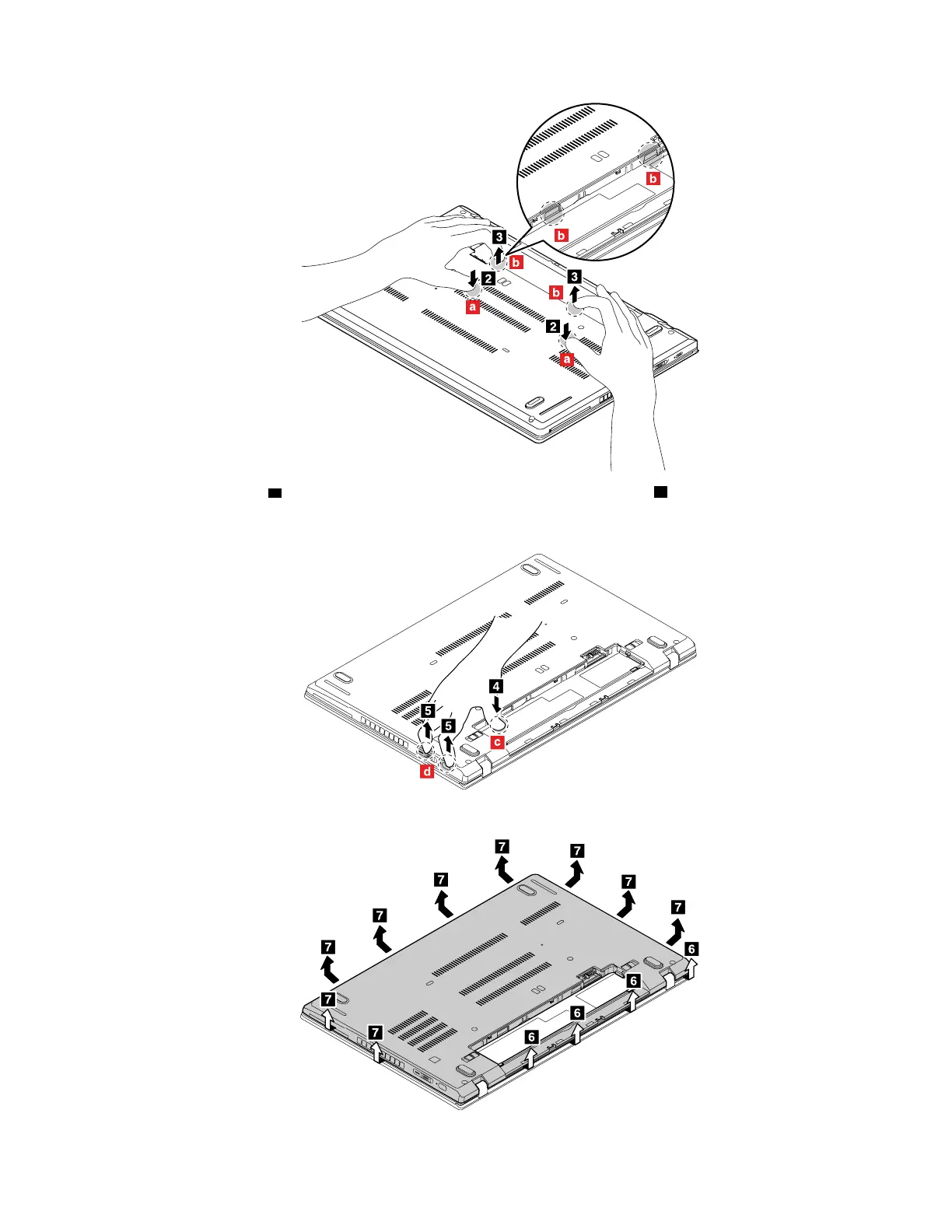

4. Press the location c with your thumb and insert your fingers into the holes d to pivot this area of the
base cover assembly upward as shown. This area of the base cover assembly will be disengaged from
the chassis.
5. Remove the base cover assembly in the numeric order as shown.
Chapter 9. Removing or replacing a FRU 67
