Lenovo ThinkPad E40 - 1170 Top Shielding Assembly

1170 Top shielding assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1030 Optical drive or travel cover” on page 80
v “1090 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 90
v “1100 Palm rest assembly with cables” on page 93
v “1110 PCI Express Mini Card for wireless LAN” on page 96
v “1140 Keyboard” on page 100
v “1150 Keyboard bezel” on page 103
v “1160 LCD unit” on page 106

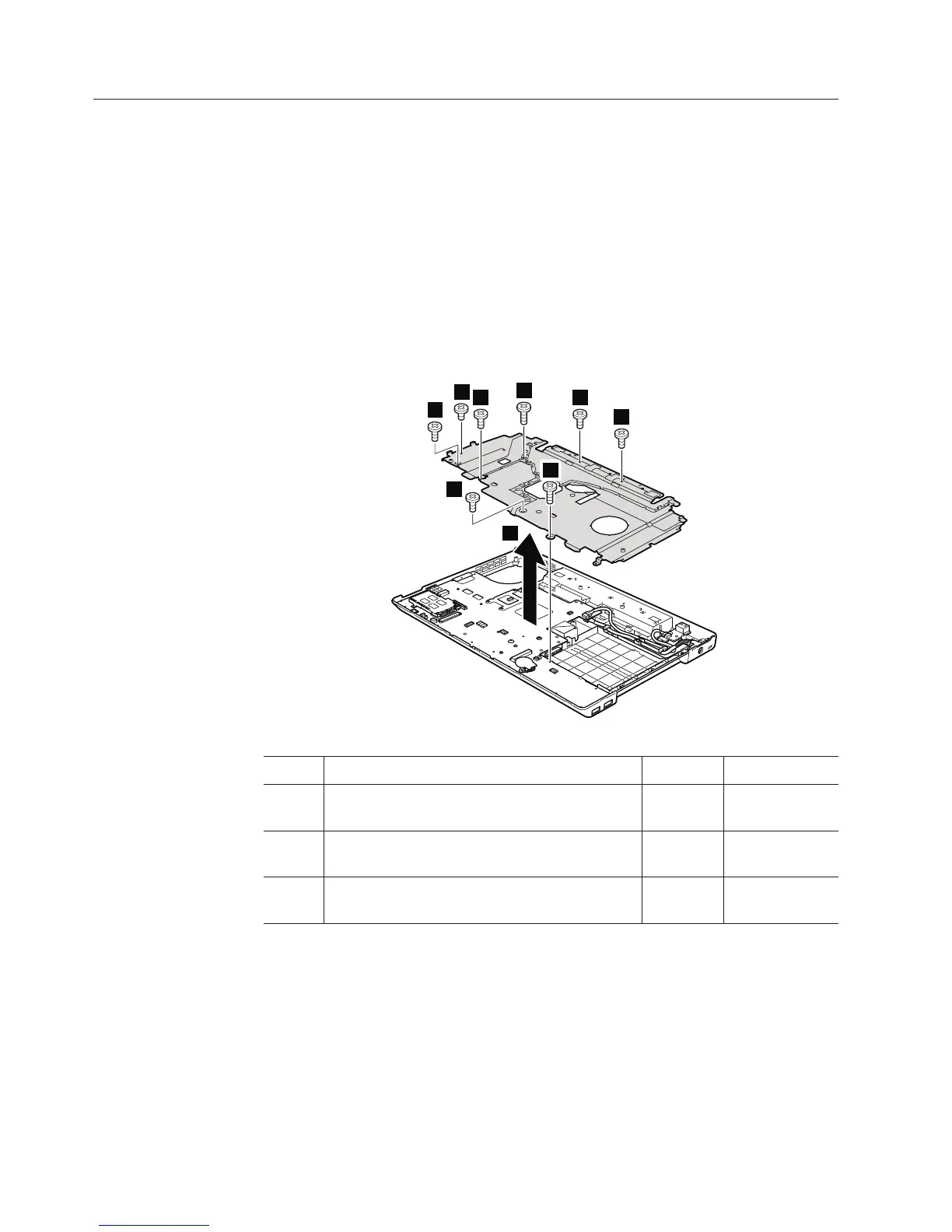

Table 27. Removal steps of top shielding assembly
For ThinkPad Edge 15″ and E50:
1
2
2
2
2
2
3
3
4
Step Screw (quantity) Color Torque
1 M2 × 2 mm, wafer-head, nylon-coated (3) Silver 0.181 Nm
(1.85 kgfcm)
2 M2 × 3 mm, wafer-head, nylon-coated (5) Black 0.181 Nm
(1.85 kgfcm)
3 M2 × 5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
110 ThinkPad Edge 14″, Edge 15″, E40, and E50 Hardware Maintenance Manual
