1110 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1030 Optical drive or travel cover” on page 80
v “1100 Palm rest assembly with cables” on page 93

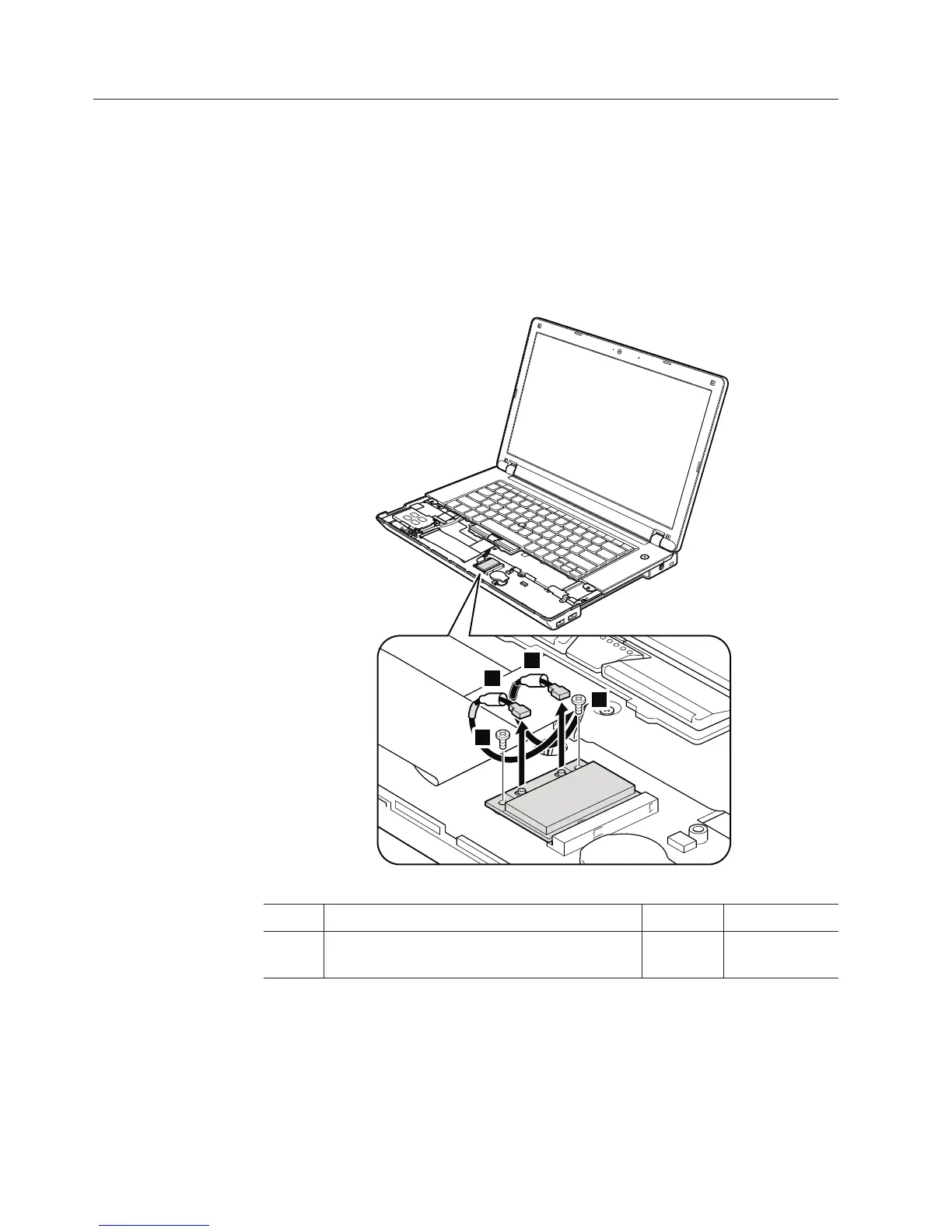

Table 20. Removal steps of PCI Express Mini Card for wireless LAN
In step 1a and 1b, unplug the jacks by using the removal tool antenna RF
connector (P/N: 08K7159) or pick the connectors with your fingers and gently
unplug them in direction of the arrow.
2
2
1a
1b
Step Screw (quantity) Color Torque
2 M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
96 ThinkPad Edge 14″, Edge 15″, E40, and E50 Hardware Maintenance Manual
