2020 Speaker assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 78
v “1090 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 90
v “1100 Palm rest assembly with cables” on page 93
v “1110 PCI Express Mini Card for wireless LAN” on page 96
v “1140 Keyboard” on page 100
v “1150 Keyboard bezel” on page 103
v “1160 LCD unit” on page 106
v “2010 LCD front bezel” on page 124

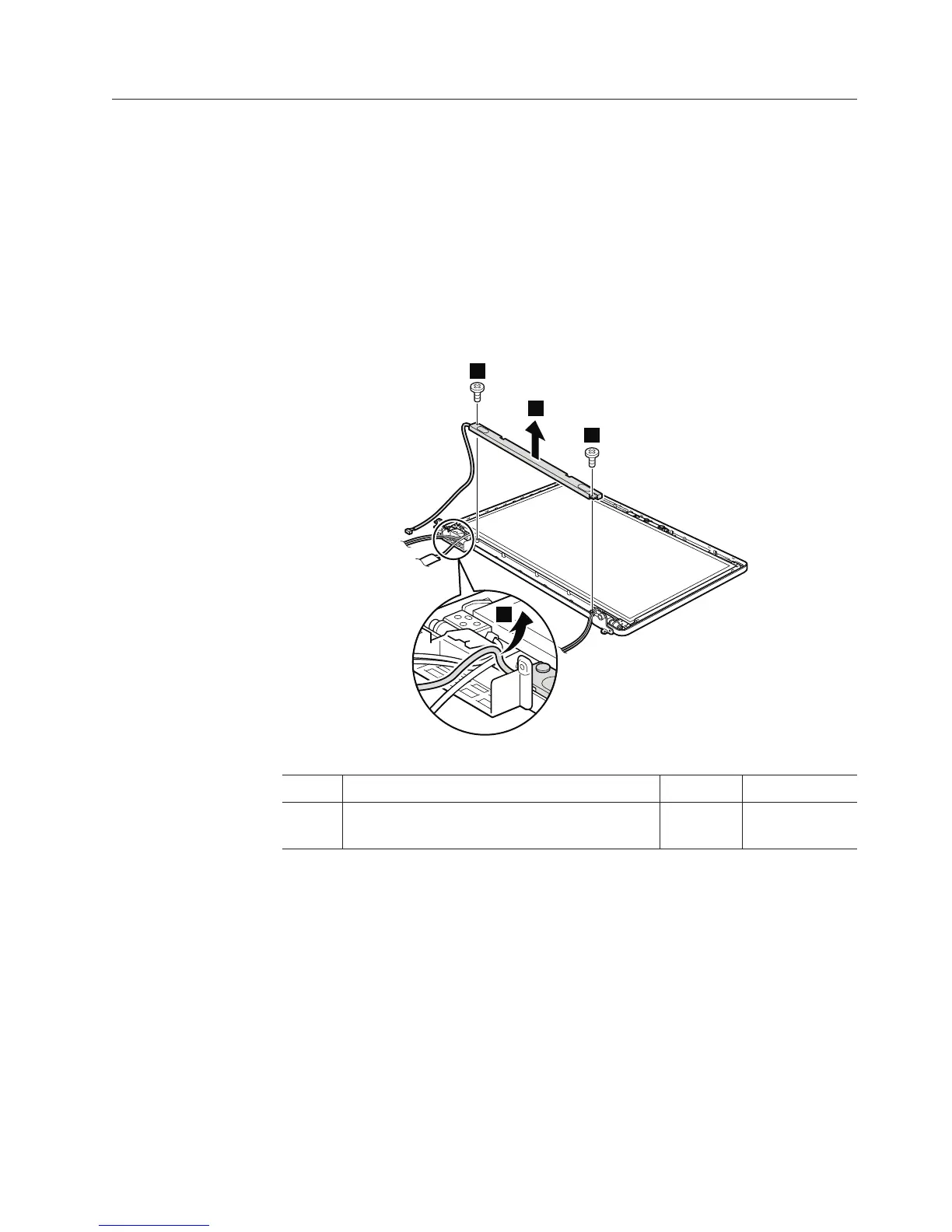

Table 33. Removal steps of speaker assembly
1
1
2
3
Step Screw (quantity) Color Torque
1 M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 125
