Lenovo ThinkPad S2 3rd Gen Hardware Maintenance Manual

Table 12. System board connector and cable guide (continued)
Item
Connector (location)
Internal cable required
Cable connection
19
Audio connector (external)
No
Connect headphones or a headset
with 3.5-mm (0.14-inch) 4-pole
plug to this connector.
20
USB 3.1 connector Gen 1
No
Connect USB 3.1-compatible
devices to this connector.
21
Mini Ethernet connector No
Connect USB 3.1-compatible
devices to this connector.
22
MicroSD card connector (internal)
No
Insert the microSD card into this
slot.
23
TrackPoint pointing stick
connector (internal)
TrackPoint pointing stick cable The TrackPoint pointing stick
comes with cable. Connect the
cable to this connector.
24
Keyboard connector (internal) Keyboard assembly cable The keyboard assembly comes
with cable. Connect the cable to
this connector.

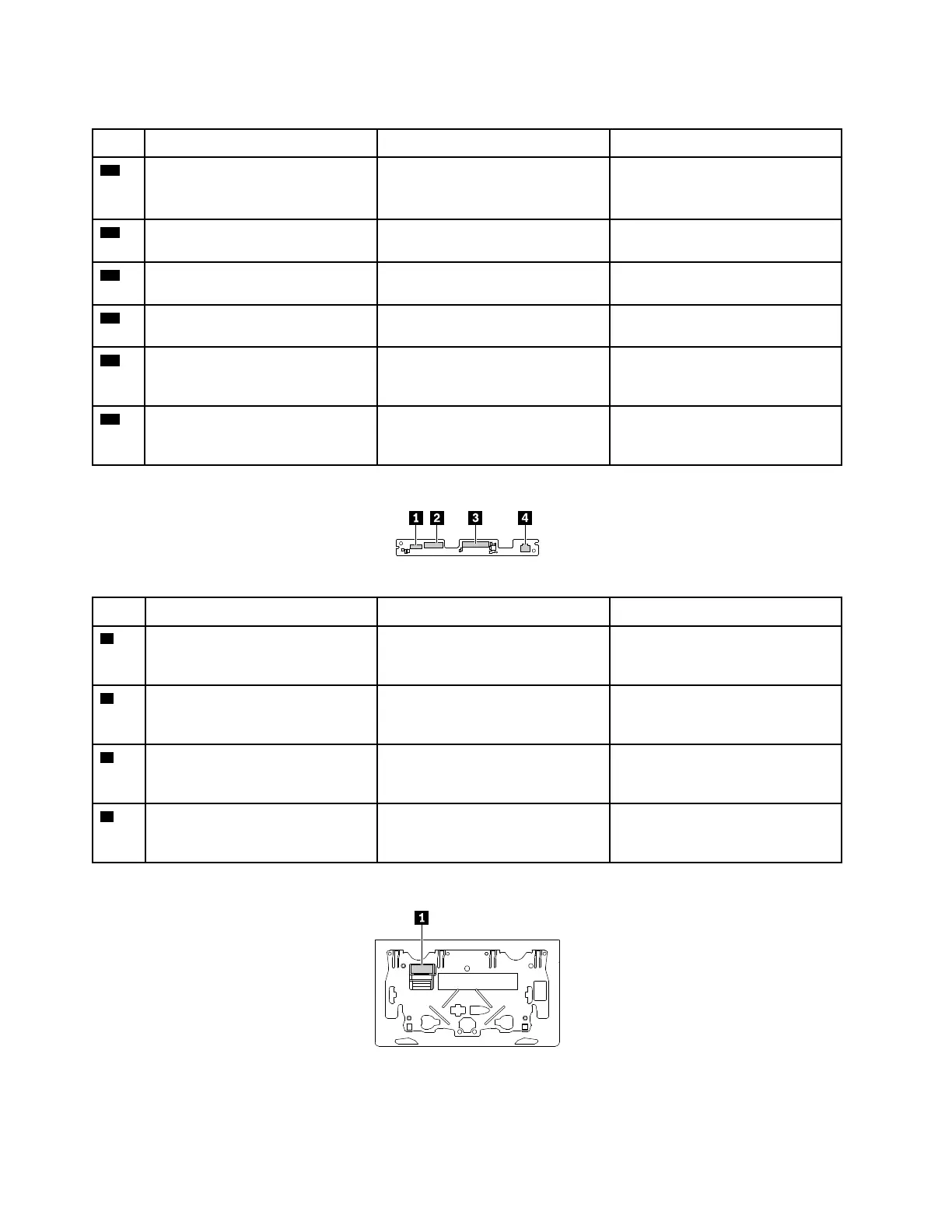

Sensor board connector and cable
Table 13. Sensor board
Item
Connector (location)
Internal cable required
Cable connection
1
RGB camera connector (internal) RGB camera cable Connect one end to the RGB
camera and the other end to this
connector.
2
Infrared camera connector
(internal)
Infrared camera cable Connect one end to the infrared
camera and the other end to this
connector.
3
Sensor board connector (internal) Sensor board cable Connect one end to the system
board and the other end to this
connector.
4
ThinkPad-logo-LED card
connector (internal)
No The ThinkPad-logo-LED card
comes with cable. Connect the
cable to this connector.
Trackpad connector and cable
64 L380, L380 Yoga, S2 3rd Gen, and S2 Yoga 3rd Gen Hardware Maintenance Manual
