Lenovo ThinkPad S2 3rd Gen Hardware Maintenance Manual

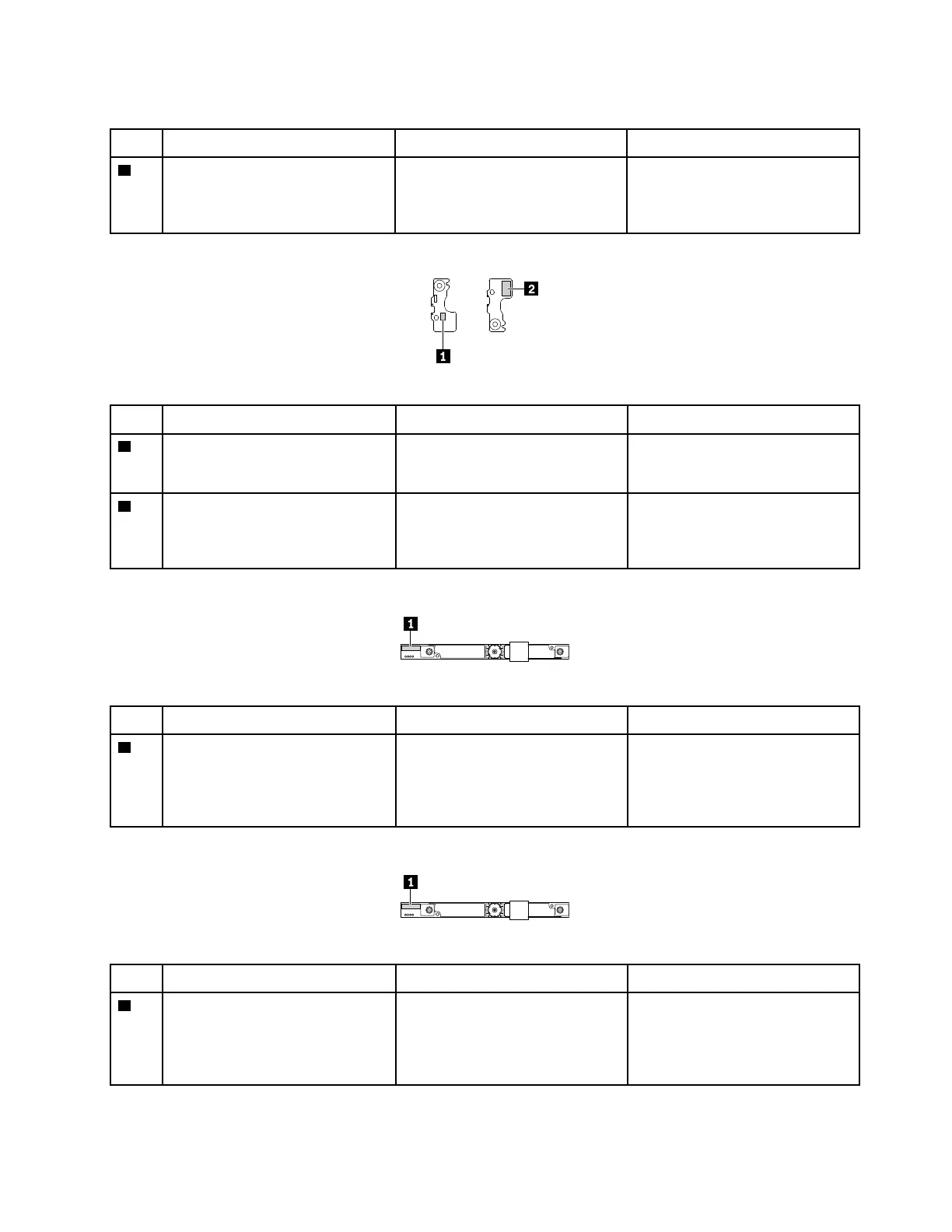

Table 14. Trackpad connector
Item
Connector (location)
Internal cable required
Cable connection
1
Trackpad connector (internal)
Trackpad cable
Connect one end to the trackpad
connector on the system board
and the other end to this
connector.
Power button board connector and cable
Table 15. Power button board connector
Item
Connector (location)
Internal cable required
Cable connection
1
ThinkPad Pen Pro charger
connector (internal)
No The ThinkPad Pen Pro charger
comes with cable. Connect the
cable to this connector.
2
Power button board connector
(internal)
Power button board cable
Connect one end to the power
button board connector on the
system board and the other end to
this connector.
RGB camera/microphone module connector and cable (for Yoga models only)
Table 16. RGB camera/microphone module connector
Item
Connector (location)
Internal cable required
Cable connection
1
RGB camera/microphone module
connector (internal)
RGB camera/microphone module
cable
Connect one end to the RGB
camera/microphone module
connector on the sensor board
and the other end to this
connector.
RGB camera/microphone module connector and cable (for non-Yoga models only)
Table 17. RGB camera/microphone module connector
Item Connector (location) Internal cable required Cable connection
1
RGB camera/microphone module
connector (internal)
RGB camera/microphone module
cable
Connect one end to the RGB
camera/microphone module
connector on the system board
and the other end to this
connector.
Chapter 7. Locations 65
