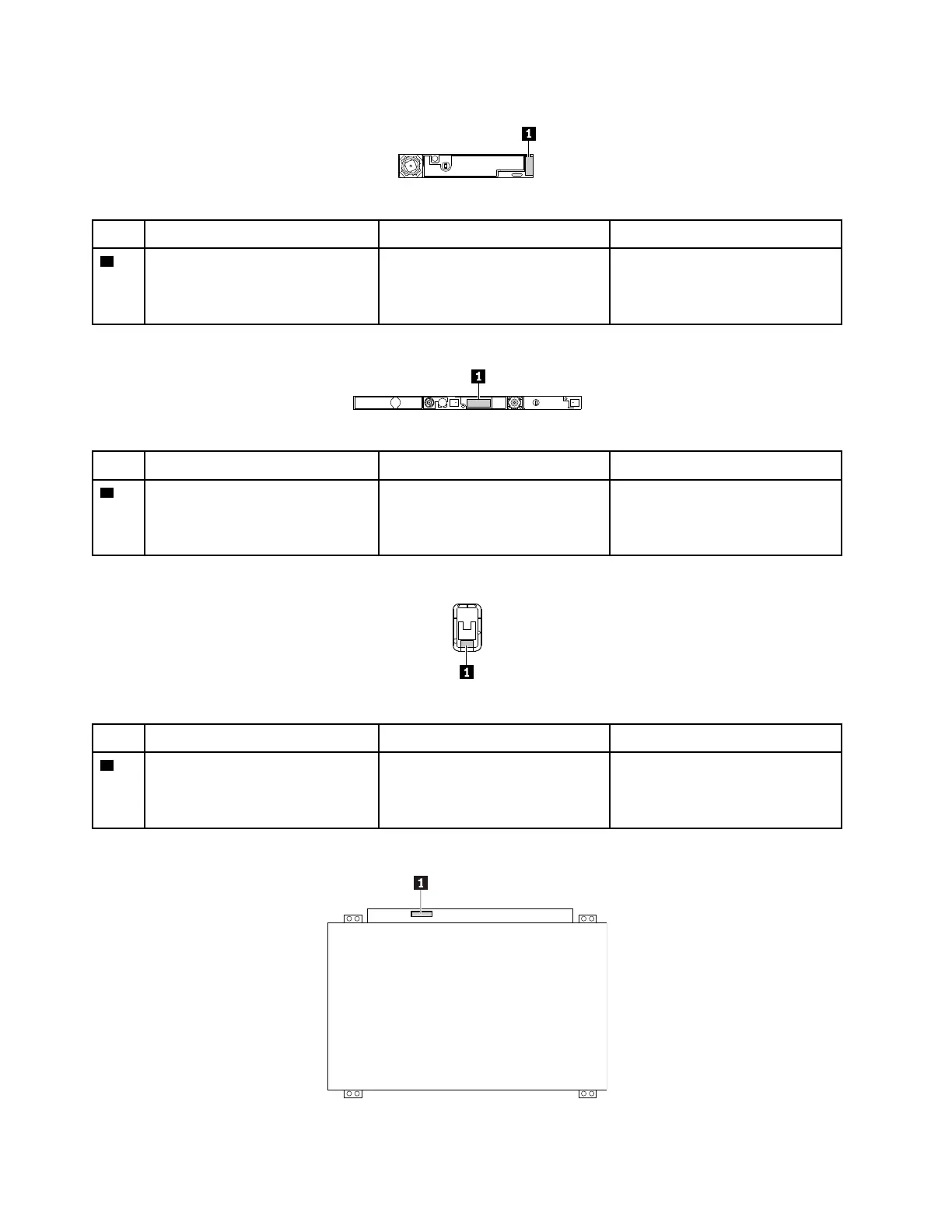

Rear camera board connector and cable
Table 18. Rear camera board connector
Item
Connector (location)
Internal cable required
Cable connection
1
Rear camera board connector
(internal)
Rear camera board cable
Connect one end to the rear
camera board connector on the
system board and the other end to
this connector.
Infrared camera board connector and cable
Table 19. Infrared camera board connector
Item
Connector (location)
Internal cable required
Cable connection
1
Infrared camera board connector
(internal)
Infrared camera board cable Connect one end to the infrared
camera board connector on the
sensor board and the other end to
this connector.
Fingerprint reader card connector and cable
Table 20. Fingerprint reader card
Item
Connector (location)
Internal cable required
Cable connection
1
Fingerprint reader card connector
(internal)
Fingerprint reader cable
Connect one end to the fingerprint
reader connector on the system
board and the other end to this
connector.
LCD panel connector (for non-Yoga models only)
66 L380, L380 Yoga, S2 3rd Gen, and S2 Yoga 3rd Gen Hardware Maintenance Manual
