2050 Integrated camera
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 61
v “1060 Keyboard” on page 66
v “1070 Modem daughter card (MDC-1.5)” on page 68
v “1080 PCI Express Mini card for wireless WAN” on page 70
v “1090 PCI Express Mini card for wireless LAN” on page 72
v “1120 Keyboard bezel” on page 77
v “1180 LCD assembly” on page 86
v “2010 LCD front bezel” on page 101
1
2
2
3
a

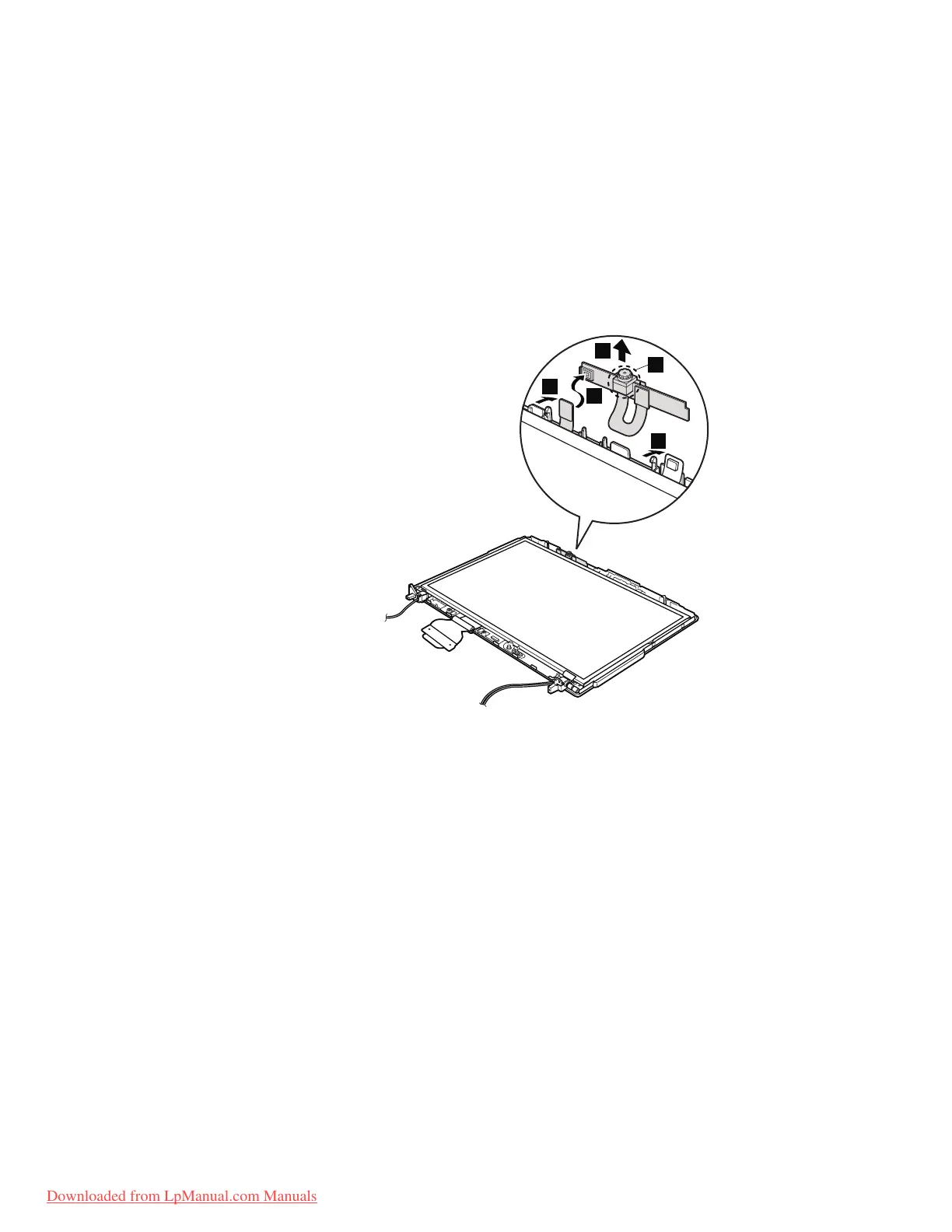

Note: The part marked a is fragile and easy to break. When you deal with the
camera assembly, do not hold that part to avoid damage.
Removing and replacing a FRU
108 MT 8747, 8749, 9440, 9441, 9442, 9443, and 9448
