1090 PCI Express Mini card for wireless LAN
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 61
v “1060 Keyboard” on page 66

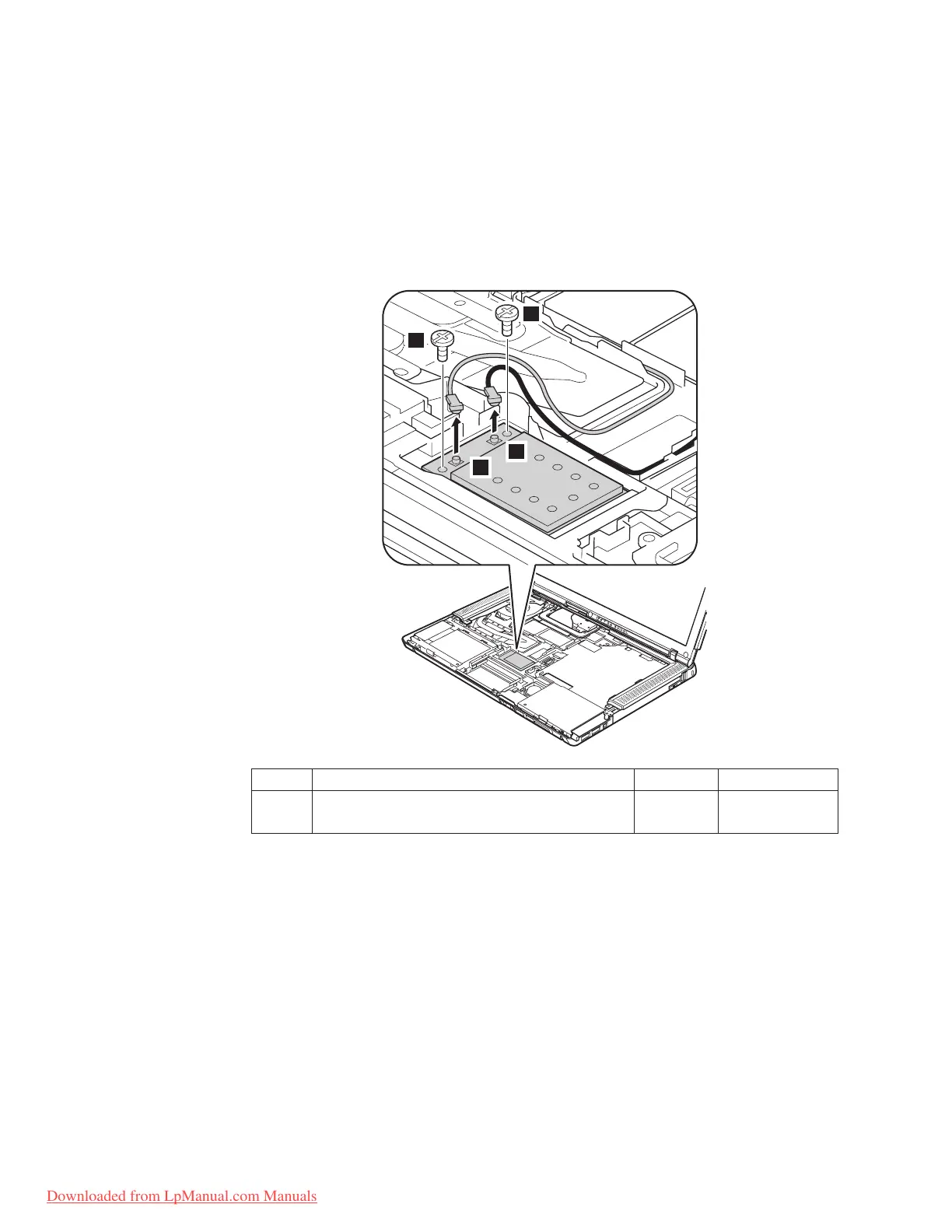

In steps 1a and 1b, unplug the jacks by using the removal tool for antenna RF
connector (P/N: 08K7159), or pick the connectors with your fingers and gently
unplug them in the direction shown by arrow.
2
2
1a
1b
Step Screw (quantity) Color Torque
2 M2 × 3 mm, flat-head, nylon-coated (2) Black 0.196 Nm
(2.0 kgfcm)
(continued)
Removing and replacing a FRU
72 MT 8747, 8749, 9440, 9441, 9442, 9443, and 9448
