2070 LCD rear cover and wireless LAN antenna cables
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 61
v “1060 Keyboard” on page 66
v “1070 Modem daughter card (MDC-1.5)” on page 68
v “1080 PCI Express Mini card for wireless WAN” on page 70
v “1090 PCI Express Mini card for wireless LAN” on page 72
v “1120 Keyboard bezel” on page 77
v “1180 LCD assembly” on page 86
v “2010 LCD front bezel” on page 101
v “2020 Inverter card” on page 103
v “2030 Bluetooth daughter card (BDC-2)” on page 104
v “2040 Wireless WAN antenna cable (MAIN) or wireless LAN 3rd antenna cable”
on page 106
v “2060 LCD panel, LCD cable, and hinges” on page 109

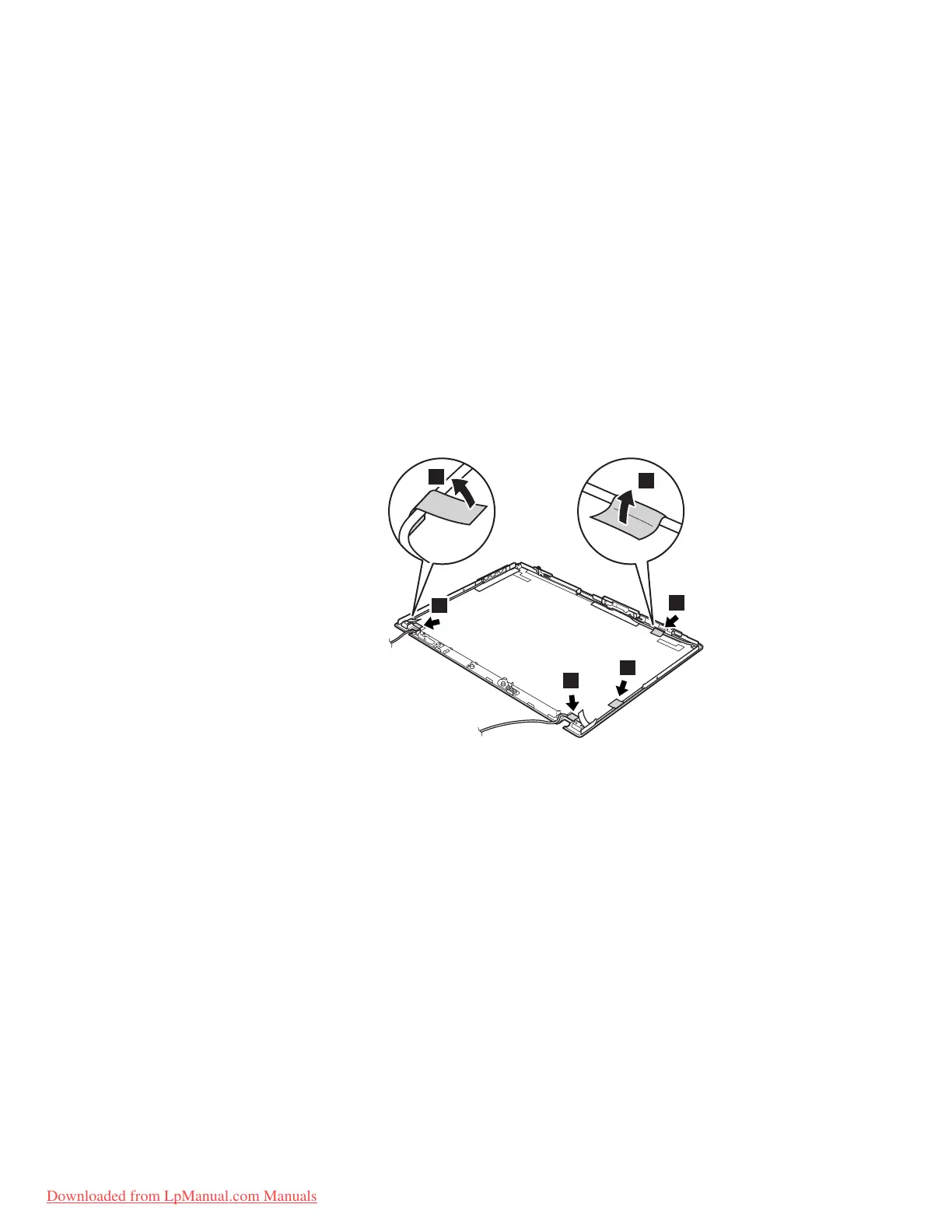

Strip the tapes 1 and 2 that secure the antenna cables.
1
1
1
1
1
2
(continued)
Removing and replacing a FRU
112 MT 8747, 8749, 9440, 9441, 9442, 9443, and 9448
