1160 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 61
v “1060 Keyboard” on page 66
v “1120 Keyboard bezel” on page 77
v “1150 Fan assembly” on page 82
Attention: CPU is extremely sensitive. When you service the CPU, avoid any
kind of rough handling.

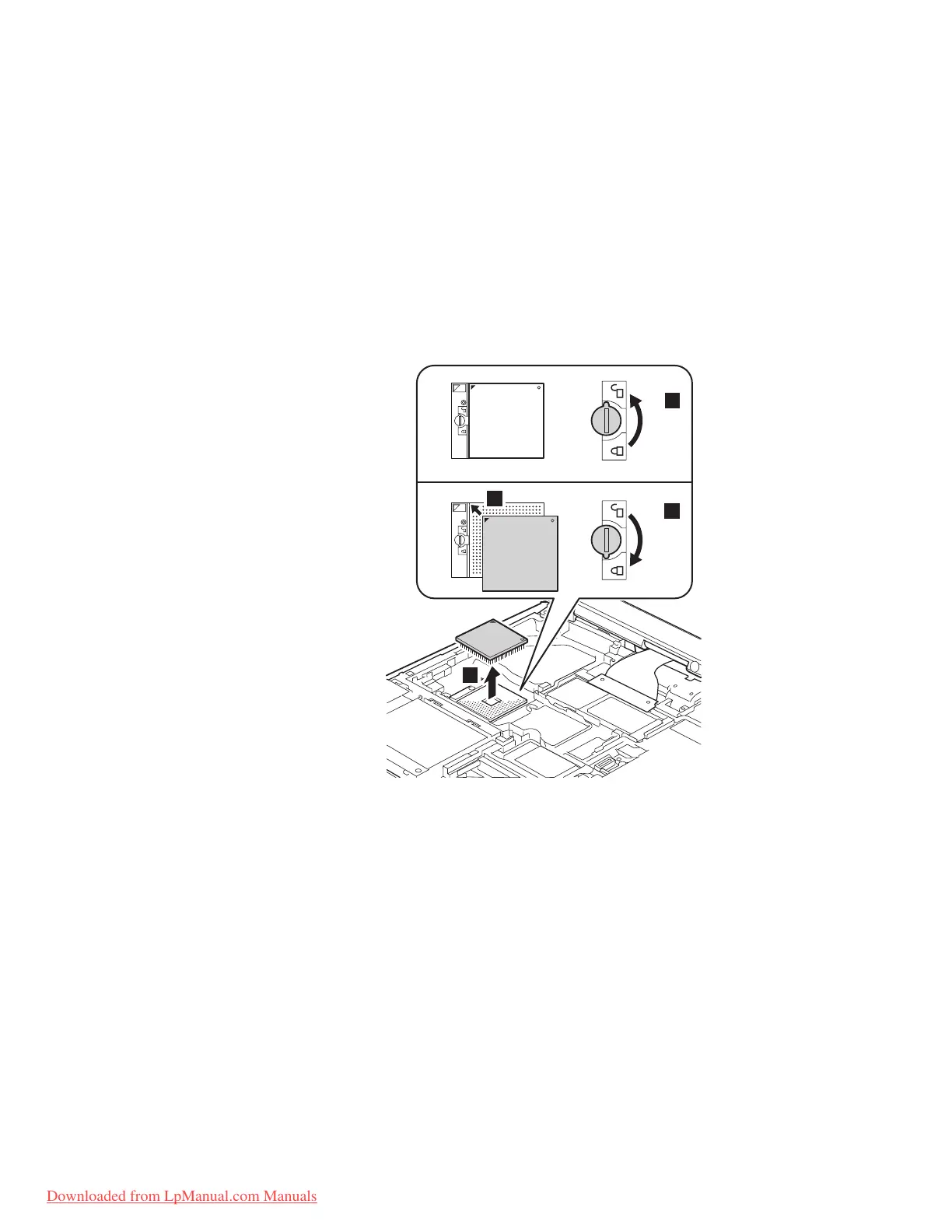

Rotate the head of the screw in the direction shown by arrow 1 to release the
lock; then remove the CPU 2.
1
b
a
2
When installing: Place the CPU on the CPU socket a, and then rotate the head
of the screw in the direction shown by arrow b to secure the
CPU.
Removing and replacing a FRU
84 MT 8747, 8749, 9440, 9441, 9442, 9443, and 9448
