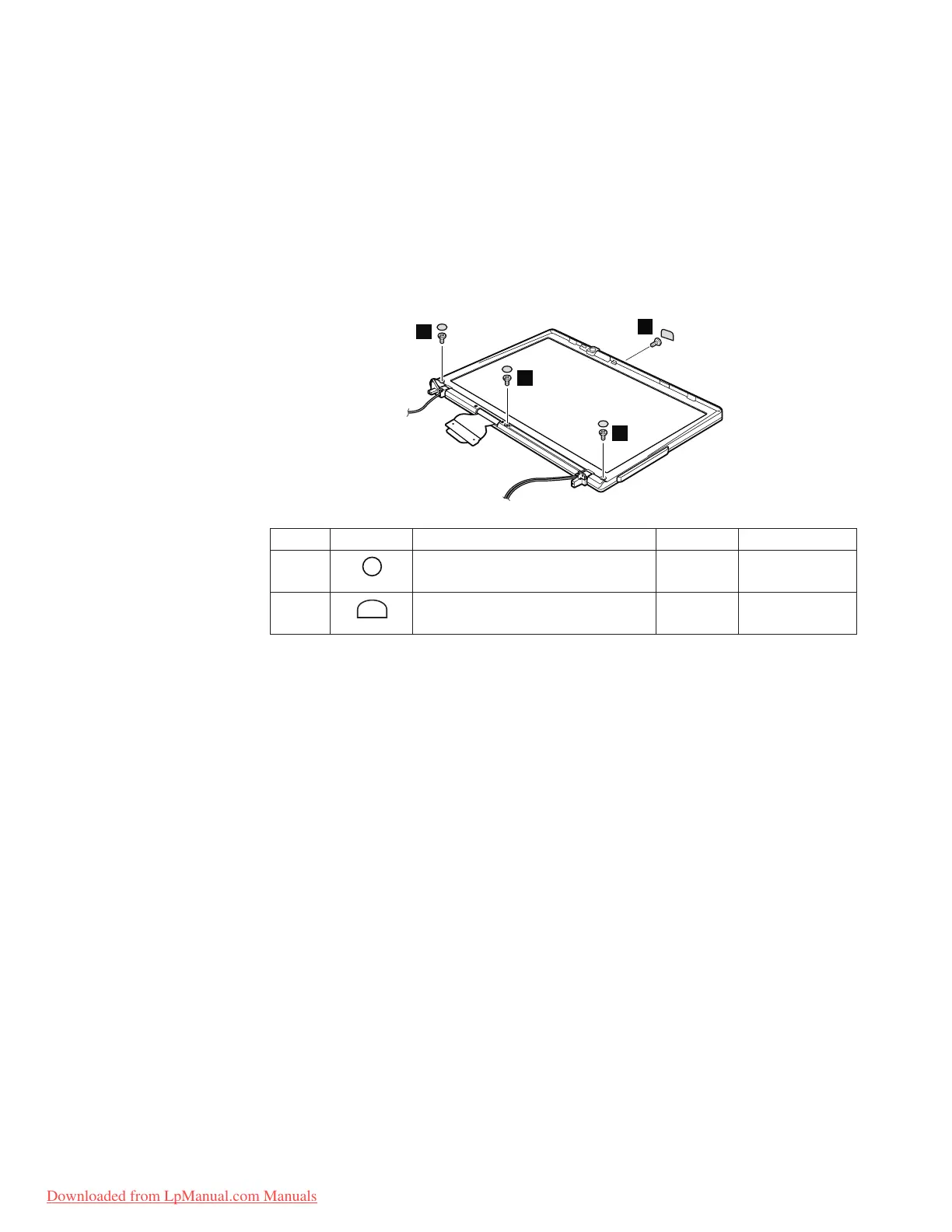

2010 LCD front bezel
For access, remove these FRUs in order:
v “1010 Battery pack” on page 56
v “1040 Palm rest or palm rest with fingerprint reader” on page 61
v “1060 Keyboard” on page 66
v “1070 Modem daughter card (MDC-1.5)” on page 68
v “1080 PCI Express Mini card for wireless WAN” on page 70
v “1090 PCI Express Mini card for wireless LAN” on page 72
v “1120 Keyboard bezel” on page 77
v “1180 LCD assembly” on page 86
1
1
2
1
Step Screw cap Screw (quantity) Color Torque
1
M2 × 5 mm, flat-head, nylon-coated
(3)
Black 0.196 Nm
(2.0 kgfcm)
2
M2 × 3 mm, flat-head, nylon-coated
(1)
Black 0.196 Nm
(2.0 kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad Z61t 101
