3

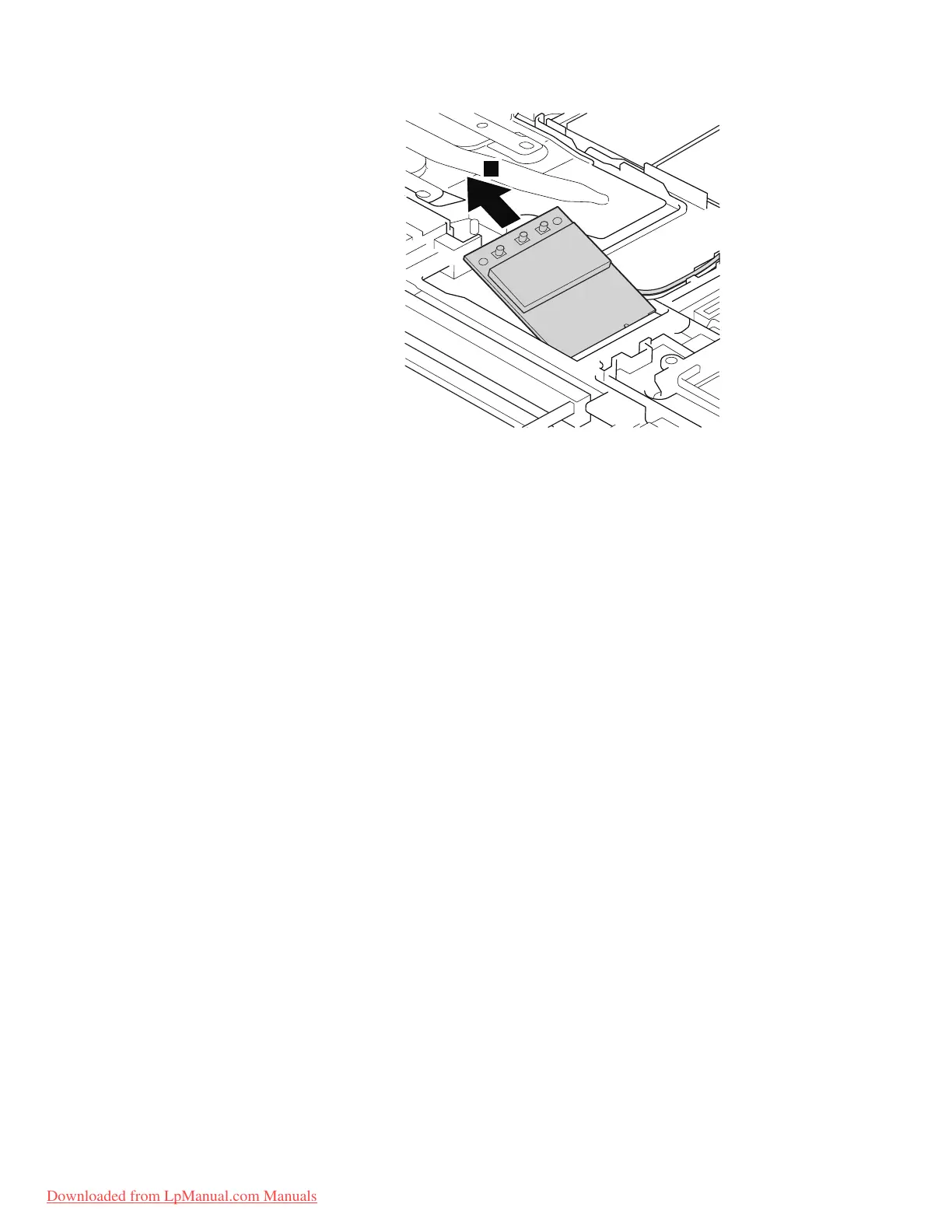

When
installing:
Plug
the
gray
cable
(MAIN)
into
the
jack
labeled
TR1
,
the
white
cable
(3rd)
into
jack
labeled
R0
,
and
the
black
cable
(AUX)
into
jack
labeled
TR2
on
the
card.
Removing
and
replacing
a
FRU
ThinkPad
Z61t
75
Downloaded from LpManual.com Manuals
80
82
Table of Contents
Default Chapter
3
Thinkpad Z61T
3
Table of Contents
5
About this Manual
7
Introduction
9
Important Service Information
9
Strategy for Replacing Frus
9
Strategy for Replacing a Hard Disk Drive
10
Important Notice for Replacing a System Board
10
How to Use Error Messages
10
Strategy for Replacing Frus for CTO, CMV, and GAV
10
Product Definition
10
FRU Identification for CTO, CMV, and GAV Products
11
Important Information about Replacing Rohs Compliant Frus
12
Diskette Compatibility Matrix
13
Safety Notices: Multilingual Translations
13
Safety Information
19
General Safety
19
Electrical Safety
19
Safety Inspection Guide
21
Handling Devices that Are Sensitive to Electrostatic Discharge
22
Grounding Requirements
22
Laser Compliance Statement
23
General Descriptions
25
Read this First
25
What to Do First
25
Related Service Information
27
Service Web Site
27
Restoring the Factory Contents by Using Product Recovery Discs
27
Passwords
28
Power Management
30
Checkout Guide
33
Testing the Computer
33
Detecting System Information with PC-Doctor
36
Power System Checkout
36
Thinkpad Z61T
39
Product Overview
40
Specifications
40
Status Indicators
43
FRU Tests
45
Fn Key Combinations
47
Symptom-To-FRU Index
50
Numeric Error Codes
50
Error Messages
54
Beep Symptoms
55
No-Beep Symptoms
55
LCD-Related Symptoms
55
Intermittent Problems
57
Undetermined Problems
57
FRU Replacement Notices
58
Screw Notices
58
Retaining Serial Numbers
58
Restoring the Serial Number of the System Unit
59
Retaining the UUID
59
Reading or Writing the ECA Information
59
Removing and Replacing a FRU
61
1010 Battery Pack
62
1020 Ultrabay Slim Device
63
1030 Hard Disk Drive Cover, Hard Disk Drive, and Hard Disk Drive Rubber Rails
64
1040 Palm Rest or Palm Rest with Fingerprint Reader
67
1050 DIMM
71
1060 Keyboard
72
1070 Modem Daughter Card (MDC-1.5)
74
1080 PCI Express Mini Card for Wireless WAN
76
1090 PCI Express Mini Card for Wireless LAN
78
1100 PCI Express Mini Card for 802.11 A/B/G/N Wireless LAN
80
1110 Backup Battery
82
1120 Keyboard Bezel
83
1130 Speaker Assembly
85
1140 SIM Card Slot
87
1150 Fan Assembly
88
1160 Cpu
90
1170 Wireless WAN Antenna (DIV)
91
1180 LCD Assembly
92
1190 Base Cover
95
1200 USB Sub Card with Cable
98
1210 MG (Magnesium) Frame
99
1220 System Board and PC Card/Expresscard Slot Assembly
103
2010 LCD Front Bezel
107
2020 Inverter Card
109
2030 Bluetooth Daughter Card (BDC-2)
110
2040 Wireless WAN Antenna Cable (MAIN) or Wireless LAN 3Rd Antenna Cable
112
2050 Integrated Camera
114
2060 LCD Panel, LCD Cable, and Hinges
115
2070 LCD Rear Cover and Wireless LAN Antenna Cables
118
Locations
123
Front View
123
Rear View
124
Bottom View
124
Parts List
125
Overall
125
Parts List
128
LCD Frus
144
14.0-In. WXGA (200Nit) TFT
145
14.1-In. WXGA (185Nit) TFT
149
In. WXGA+ (200Nit) TFT
155
Keyboard
160
Recovery Discs
161
Windows XP Professional Cds
161
Windows XP Home Edition Cds
163
Windows Vista Business (32 Bit) Dvds
164
Miscellaneous Parts
165
AC Adapters
167
Common Parts List
167
Tools
167
Power Cords
168
Notices
169
Trademarks
170
