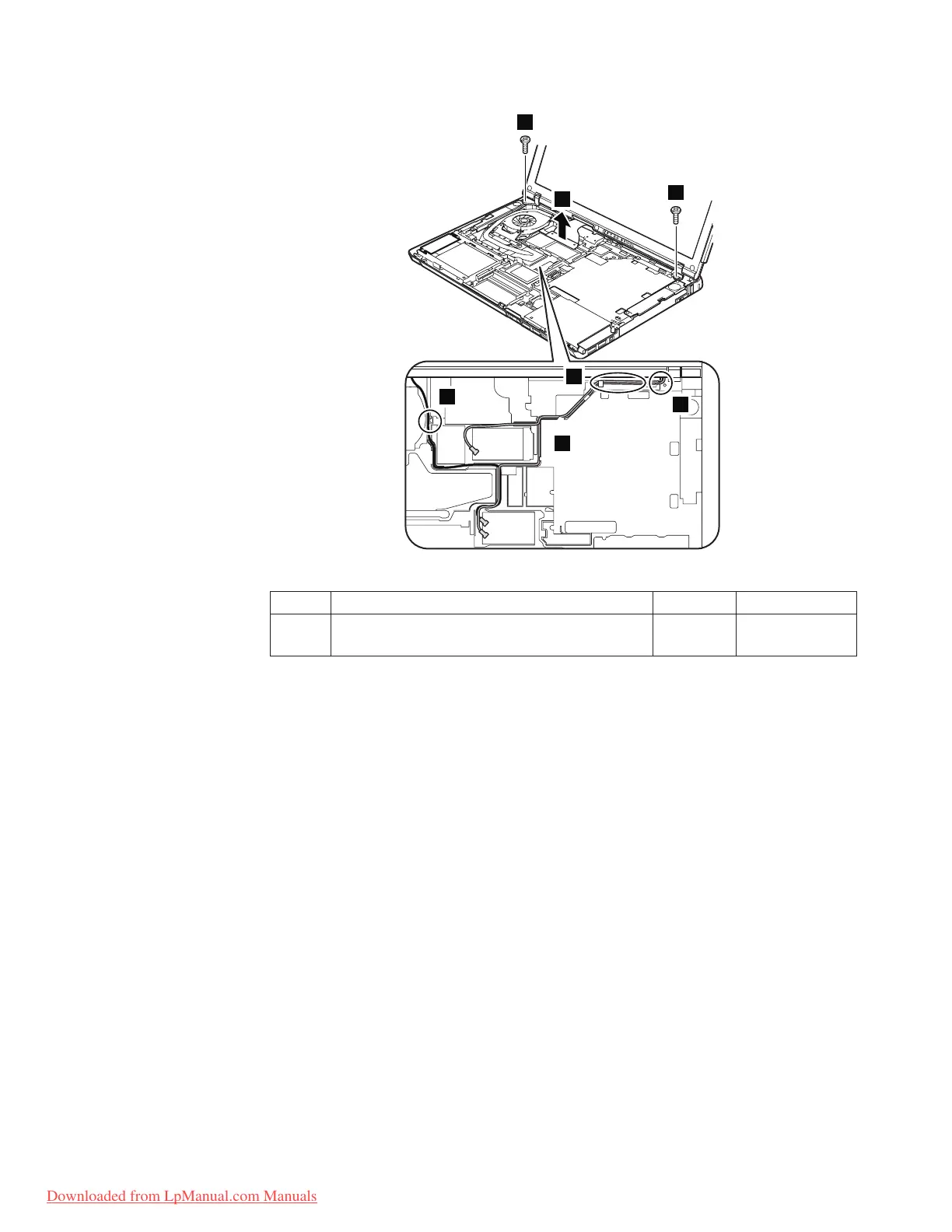

In step 3, release the antenna cables from the cable guides.
Step Screw (quantity) Color Torque
4 M2 × 5 mm, flat-head, nylon-coated (2) Black 0.245 Nm
(2.5 kgfcm)
When installing:
1. Make sure that the antenna cables are routed along the cable guides. In the
parts indicated by circle a in the figure, do not tense the cables. To do so, the
cables may get damaged by the cable guides of the frame, and may cause a
broken wire.
2. In the part indicated by circle b, do not twist the cables, and place the cables
to be parallel.
3. Make sure that the connector 2 is attached firmly.
(continued)
Removing and replacing a FRU
ThinkPad Z61t 87
