5.Removetherisercardassemblies.See“Replacingtherisercardassembly”onpage143.
6.PressthemetalshieldthatprotectstheAnyFabricadapterbaytotherearoftheservertoremoveit.
StoretheshieldincasethatyoulaterremovetheAnyFabricadapterandneedtheshieldtocoverthebay.

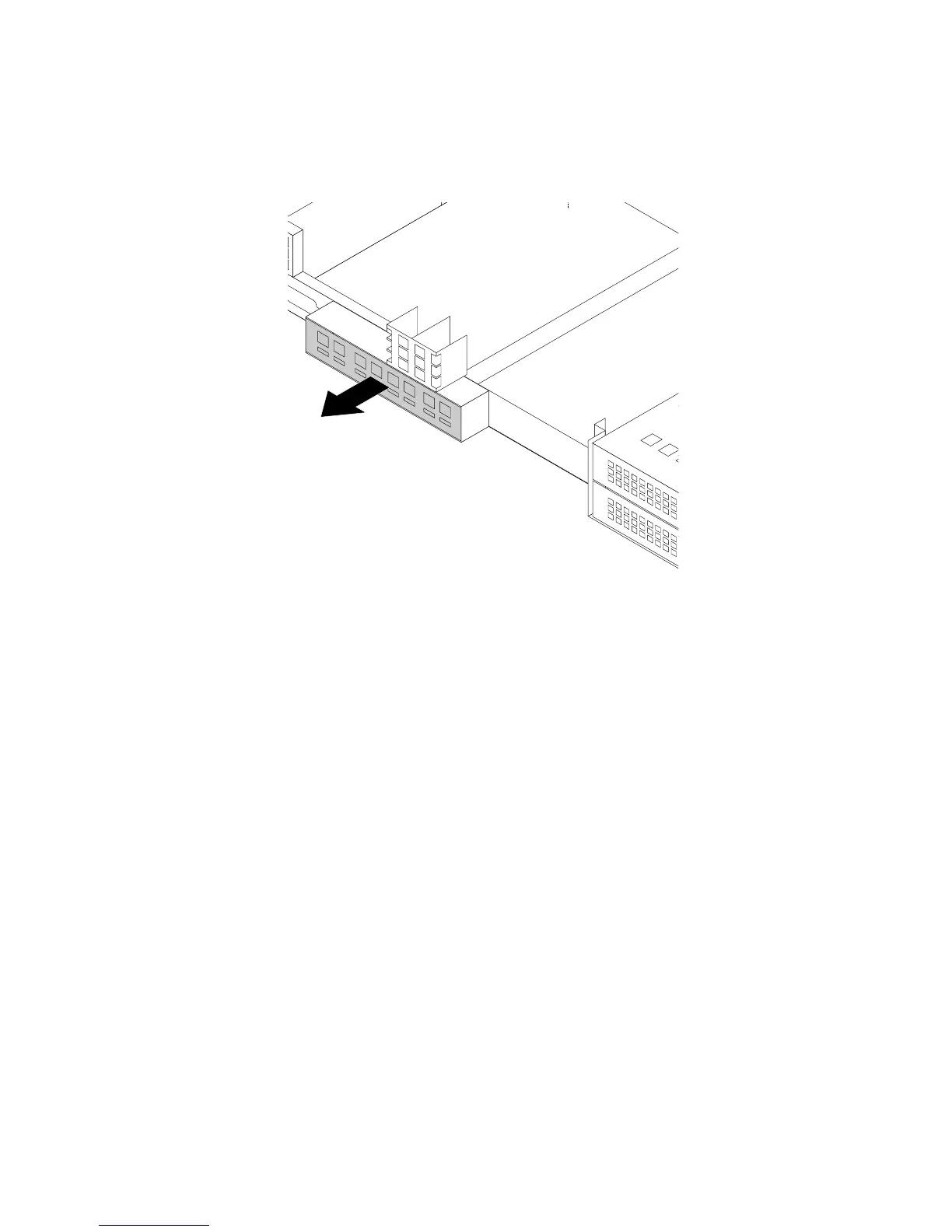

Figure56.RemovingtheprotectiveshieldfortheAnyFabricadapterbay
7.Touchthestatic-protectivepackagethatcontainstheAnyFabricadaptertoanyunpaintedsurfaceon
theoutsideoftheserver.Then,taketheAnyFabricadapteroutofthepackage.
Note:CarefullyhandletheAnyFabricadapterbyitsedges.
90ThinkServerRD550UserGuideandHardwareMaintenanceManual
