15.Installtheeightscrewsfollowingtherecommendednumericalsequenceasshowntosecurethenew
systemboardonthechassis.

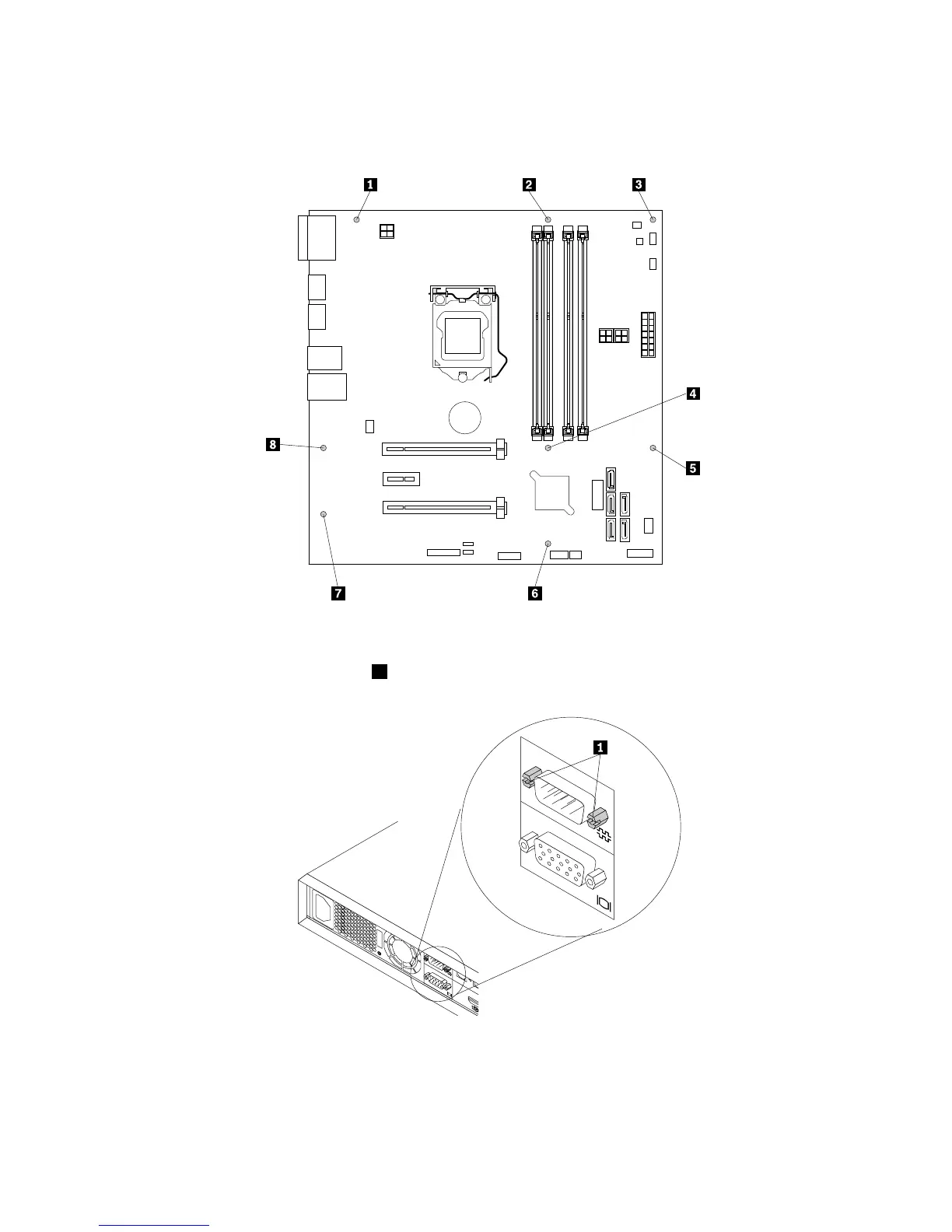

Figure78.Installingthescrewsthatsecurethesystemboard
16.Reinstallthetwohexagonalscrews1tosecuretherearofthesystemboardtothechassis.
Figure79.Reinstallingthetwohexagonalscrewstosecuretherearofthesystemboard
17.Removetheprotectivecoverthatprotectsthepinsonthemicroprocessorsocketonthenewsystem
board.
104ThinkServerRS140UserGuideandHardwareMaintenanceManual
