Toremoveandreinstalltheslim-optical-drivebracket,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.
3.Removetheservercover.See“Removingtheservercover”onpage55.
4.Locatetheslim-optical-drivebracketintheserver.See“Servercomponents”onpage17.
5.Ifthereisaslimopticaldriveinstalled,removeitfromtheserver.See“Removingtheslimoptical
drive”onpage74.

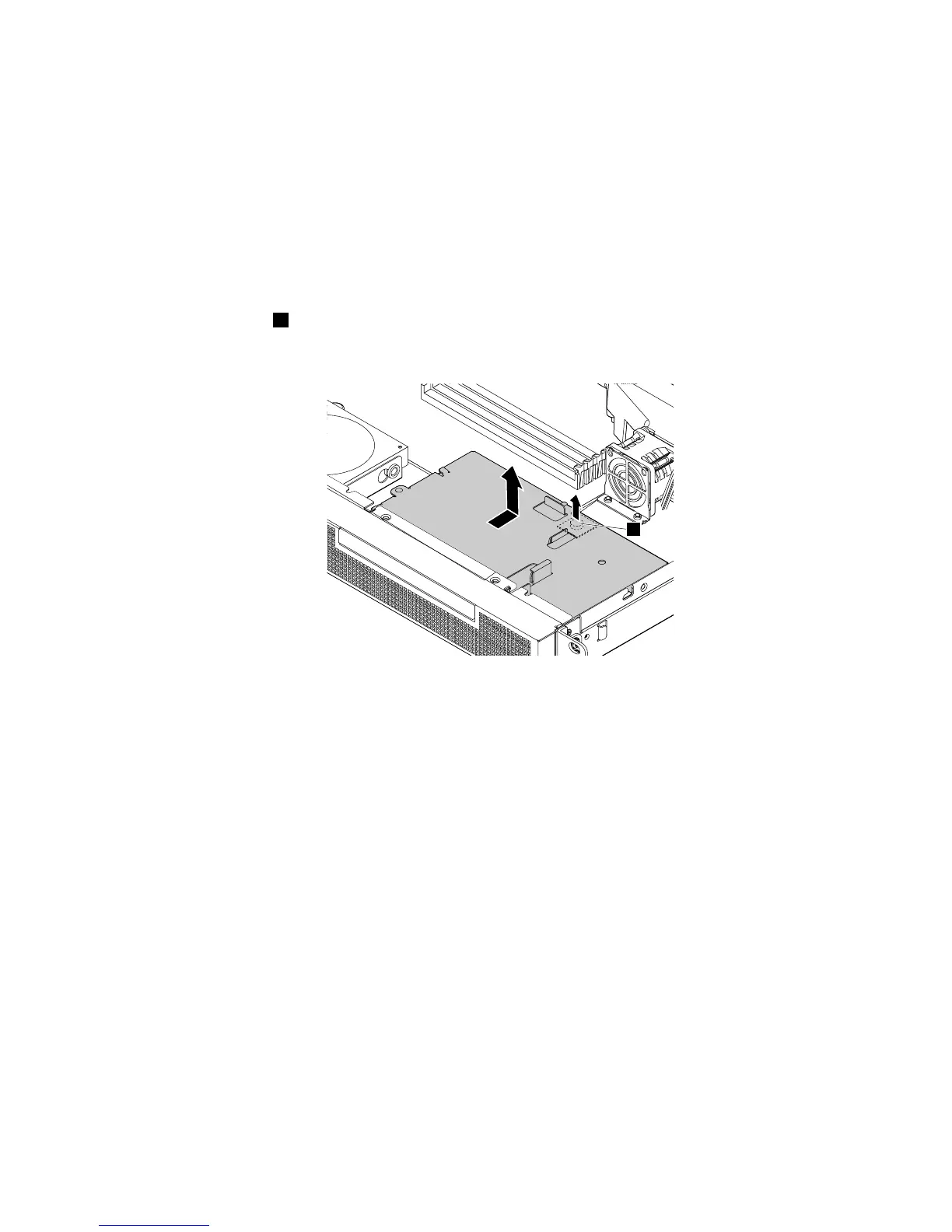

6.Liftthereleasepin1oftheslim-optical-drivebracket.Then,slidethebrackettotherearoftheserver
asshowntoreleasethebracketfromtheserver.Lifttheslim-optical-drivebracketoutofthechassis.
Figure55.Removingtheslim-optical-drivebracket
Chapter6.Installing,removing,orreplacinghardware83
