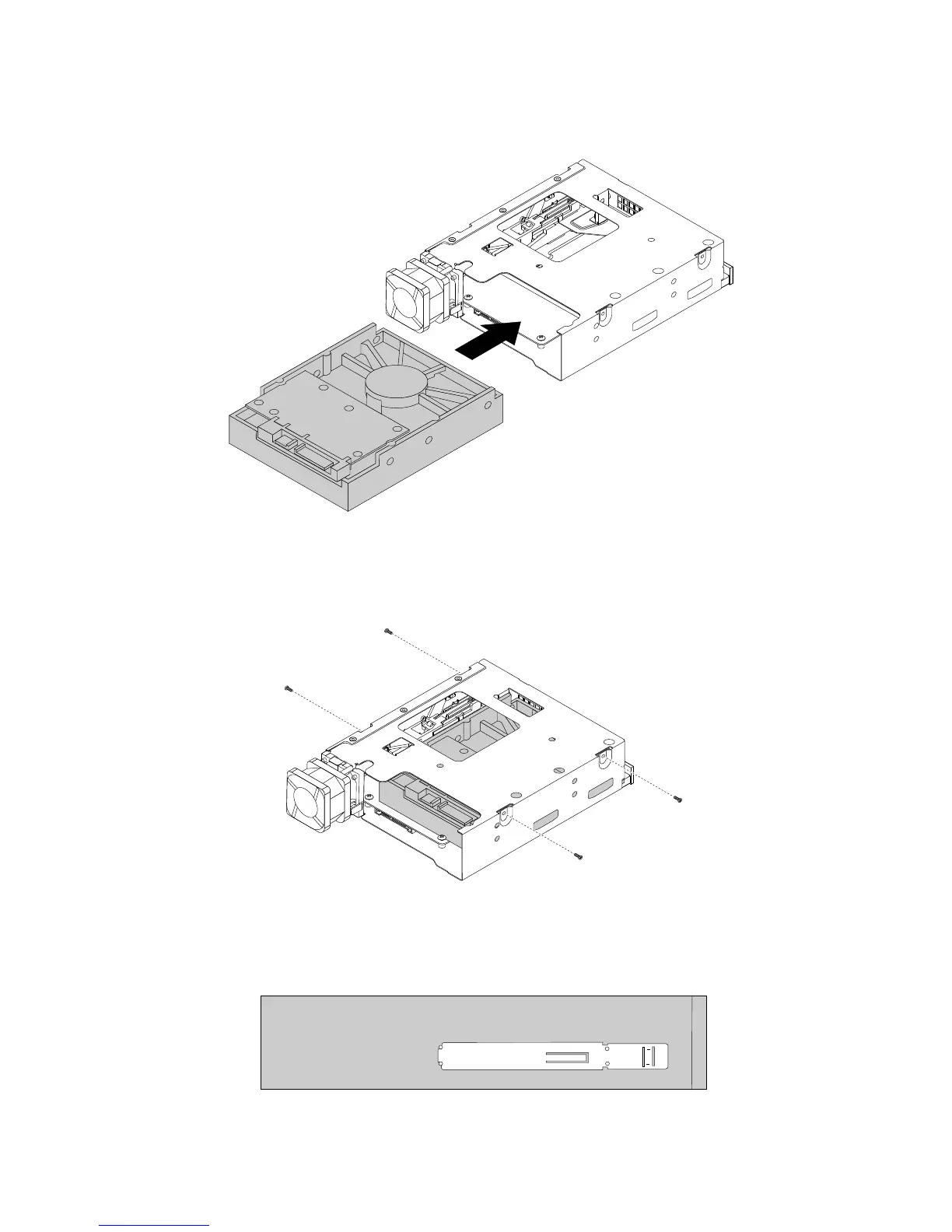

8.Slidetheharddiskdriveintothecagefromtherearofthecage.
Figure29.Slidingtheharddiskdriveintothecage
9.Installthefourscrewstosecuretheharddiskdriveinthecage.
Figure30.Installingthescrewstosecuretheharddiskdriveinthecage
10.Installthecageretaineronthesideofthecage.
Figure31.Installingthecageretainer
58ThinkServerTS140HardwareMaintenanceManual
