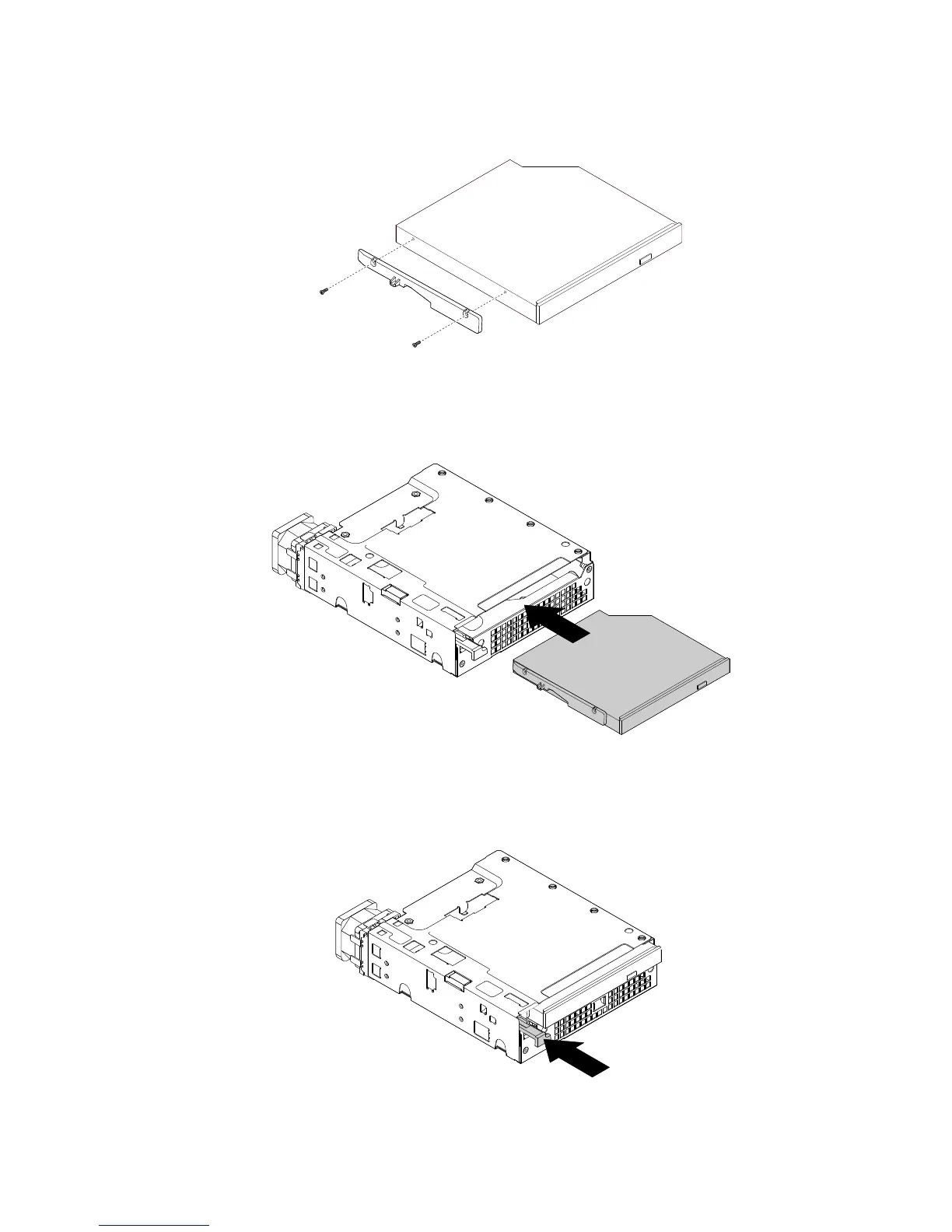

5.Installthetwoscrewstosecuretheslimopticaldriveretainertothesideoftheslimopticaldrive.
Figure26.Installingtheslimopticaldriveretainer
6.Installtheslimopticaldrivewiththeretainerintothecage.
Figure27.Installingtheslimopticaldriveintothecage
7.Pressthetabatthefrontofthecageuntilyouhearaclick.Theslimopticaldriveissecuredinplace.
Figure28.Securingtheslimopticaldriveinthecage
Chapter6.Installing,removing,orreplacinghardware57
