Server models with sixteen 2.5-inch hot-swap drives
Use this section to understand the cable routing for server models with sixteen 2.5-inch hot-swap drives.
Server model: sixteen 2.5-inch SAS/SATA drives, two 8i RAID adapters
Notes:
• Ensure that all cables are routed through the correct cable clips.
• Broken lines indicate the hidden parts.

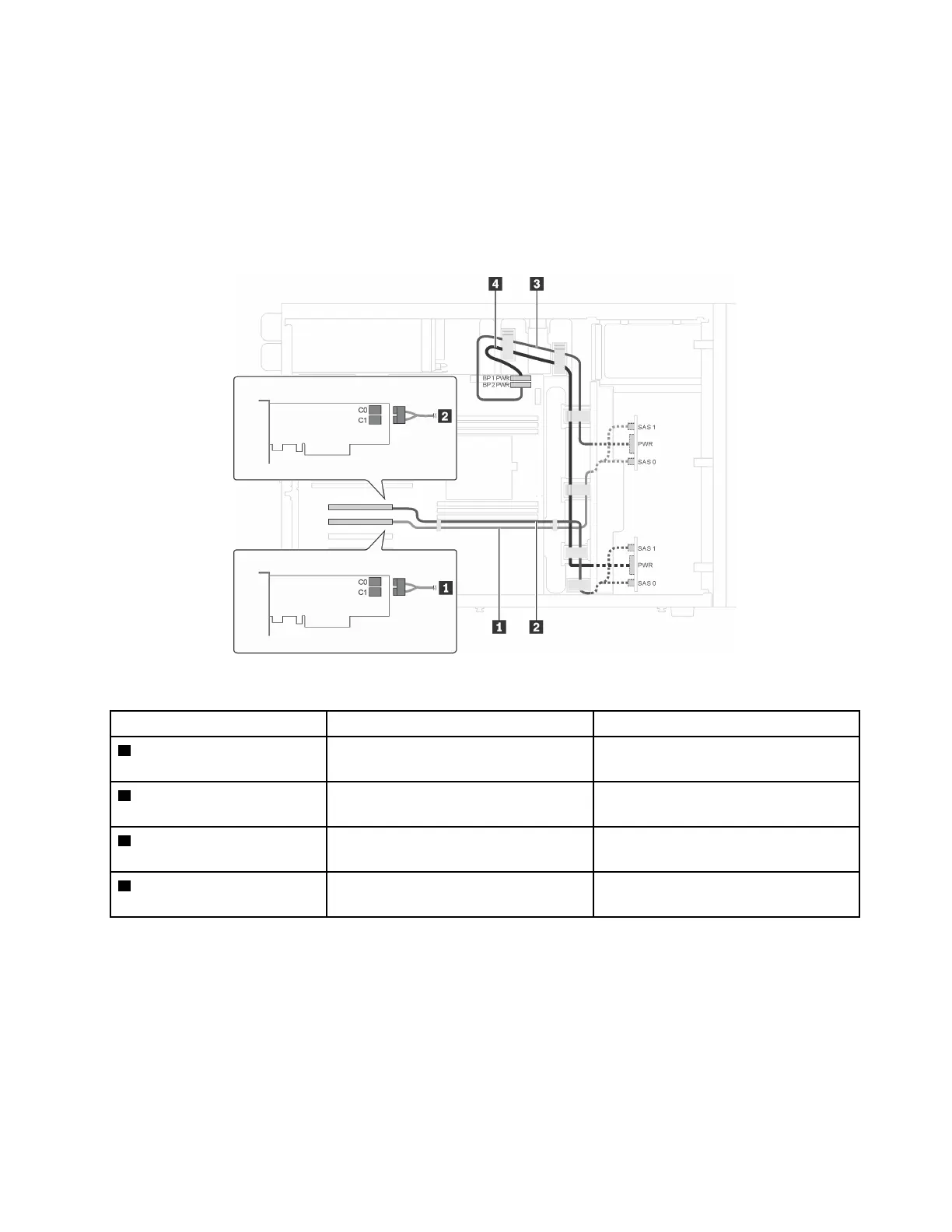

Figure 17. Cable routing for server models with sixteen 2.5-inch SAS/SATA drives and two 8i RAID adapters
Cable
From To
1 SAS signal cable for
backplane 1
SAS 0 and SAS 1 connectors on
backplane 1
C0 and C1 connectors on one 8i RAID
adapter
2 SAS signal cable for
backplane 2
SAS 0 and SAS 1 connectors on
backplane 2
C0 and C1 connectors on another 8i
RAID adapter
3 Power cable for backplane 2 Power connector on backplane 2 Backplane 2 power connector on the
system board
4 Power cable for backplane 1 Power connector on backplane 1 Backplane 1 power connector on the
system board
Chapter 2. Server components 35
