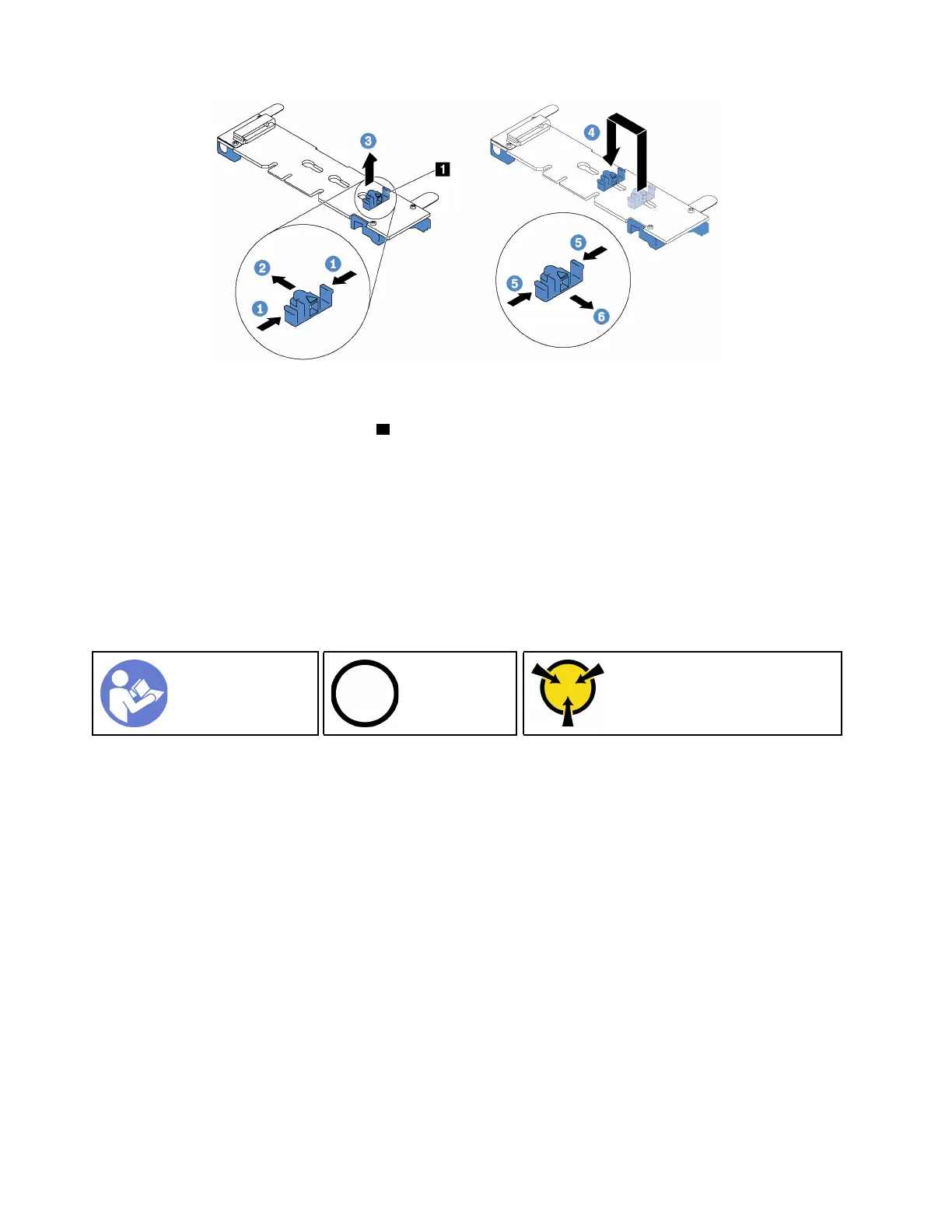

Figure 53. M.2 retainer adjustment
Step 1. Press both sides of the retainer
1 .
Step 2. Move the retainer forward until it is in the large opening of the keyhole.
Step 3. Take the retainer out of the keyhole.
Step 4. Insert the retainer into the correct keyhole.
Step 5. Press both sides of the retainer.
Step 6. Slide the retainer backwards until it is seated in place.
Install the hot-swap power supply cage
Use this information to install the hot-swap power supply cage.
“Read the
installation
Guidelines” on
page 58
“Power off
the server for
this task” on
page 109
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 59
Before installing the hot-swap power supply cage, touch the static-protective package that contains the new
hot-swap power supply cage to any unpainted surface on the outside of the server. Then, take the new cage
out of the package and place them on a static-protective surface.
To install the hot-swap power supply cage, complete the following steps:
88
ThinkSystem ST550 Setup Guide
